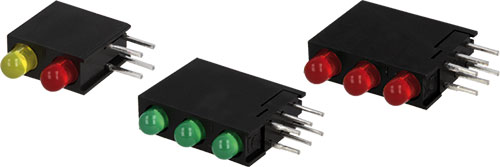

LED; KINGBRIGHT ELECTRONIC

Manufacturer	KINGBRIGHT ELECTRONIC
Type of diode	LED

Symbol	Ø_LED	No. of diodes	Variant	Colour	Current	View. angle
	[mm]				[mA]	[°]
KM-2520EH/1ID	1.8	1	horizontal, in housing	red	20	40
KM-2520EH/1SGD	1.8	1	horizontal, in housing	green	20	40
KM-2520EJ/1SGD	1.8	1	horizontal, in housing	green	20	40
L-710A8CB/1ID	3	1	in housing	red	20	40
L-710A8EW/1ID	3	1	in housing	red	20	40
L-934CB/1ID	3	1	in housing	red	20	60
L-934CB/1SRD	3	1	in housing	red	20	60
L-934CB/1SURDK	3	1	in housing	red	20	50
L-934EW/1ID	3	1	in housing	red	20	60
L-934RS/1SURDK	3	1	in housing	red	20	50
L-130WDT/1EGW	3	1	bicolour, in housing	red/green	20	60
L-42WUM/1EGWT	3	1	bicolour, in housing	red/green	20	100
L-130WDT/1SURKS	3	1	bicolour, in housing	red/yellow	20	60
L-7104EW/1GD	3	1	in housing	green	20	40
L-710A8CB/1GD	3	1	in housing	green	20	40
L-710A8EW/1GD	3	1	in housing	green	20	40
L-934CB/1GD	3	1	in housing	green	20	60
L-934CB/1GD-RV	3	1	in housing	green	20	60
L-934EW/1GD	3	1	in housing	green	20	60
L-934ZH/1GD	3	1	in housing	green	20	60
L-93A8CB/1GD	3	1	in housing	green	20	60
L-937RS/1EGW	3	1	bipolar, bicolour, in housing	green/red	20	60
L-7104EW/1YD	3	1	in housing	yellow	20	40
L-710A8CB/1YD	3	1	in housing	yellow	20	40
L-934CB/1YD	3	1	in housing	yellow	20	60
L-934EW/1YD	3	1	in housing	yellow	20	60
L-1384AD/1ID	3.4	1	in housing	red	20	60
L-1384AL/1ID	3.4	1	in housing	red	20	60
L-138A8QMP/1ID	3.4	1	in housing	red	20	60
L-1384AD/1GD	3.4	1	in housing	green	20	60
L-138A8QMP/1GD	3.4	1	in housing	green	20	60
L-1384AD/1YD	3.4	1	in housing	yellow	20	60
L-1533BQ/1ID	4.7	1	in housing	red	20	60
L-1533BQ/1GD	4.7	1	in housing	green	20	60
L-73CB/1IDA	4.8	1	in housing	red	20	60
L-73JB/1YDA	4.8	1	in housing	yellow	20	60
L-1503CB/1ID	5	1	in housing	red	20	60
L-1503CB/1SURDK	5	1	in housing	red	20	30
L-1503EB/1I1GD	5	1	in housing	red/green	10	60
L-150A9VS/1EGW	5	1	bicolour, in housing	red/green	20	30
L-59BL/1EGW	5	1	bicolour, in housing	red/green	20	60
L-59CB/1EGW	5	1	bicolour, in housing	red/green	20	60
L-1503CB/1GD	5	1	in housing	green	20	60
L-1503CB/1YD	5	1	in housing	yellow	20	60
L-964ZM/1G1IDRV	-	2	in housing	-	20	-
L-4060VH/2ID	1.8	2	in housing	red	20	70
L-4060VH/2GD	1.8	2	in housing	green	20	70
L-4060VH/2YD	1.8	2	in housing	yellow	20	70
L-7104FO/2ID	3	2	in housing	red	20	40
L-934DB/2ID	3	2	in housing	red	20	60
L-934EB/2ID	3	2	in housing	red	20	60
L-130WCP/2EGW	3	2	in housing	red/green	20	60
L-7104MD/1SURKCGKD	3	2	in housing	red/green	20	40
L-934MD/1LI1LGD	3	2	in housing	red/green	2	40
L-937EB/1EG1GEW	3	2	bipolar, in housing	red/green	20	60
L-964ZM/1G1ID-RV	3	2	bicolour, in housing	red/green	20	60
L-934EB/1Y1ID-RV	3	2	in housing	red/yellow	20	40
L-7104FO/2GD	3	2	in housing	green	20	40
L-7104GE/2GD	3	2	in housing	green	20	40
L-7104GO/2GD	3	2	in housing	green	20	40
L-7104MD/2GD	3	2	in housing	green	20	40
L-934DB/2GD	3	2	in housing	green	20	60
L-934EB/2GD	3	2	in housing	green	20	60
L-934GE/2GD	3	2	in housing	green	20	40
L-7104MD/2YD	3	2	in housing	yellow	20	40
L-710A8FG/2YD	3	2	in housing	yellow	-	40
L-934EB/2YD	3	2	in housing	yellow	20	40
L-7104FG/1Y1GD	3	2	in housing	yellow/green	20	40
L-7104GE/1LY1LGD	3	2	in housing	yellow/green	2	40
L-7104MD/1LG1LYD	3	2	in housing	yellow/green	2	40
L-934EB/1G1YD-RV	3	2	in housing	yellow/green	20	40
L-73CB/2IDA	4.8	2	horizontal, in housing	red	20	60
L-73CB/2YDA	4.8	2	horizontal, in housing	yellow	20	60
L-1503EB/2GD	5	2	in housing	green	20	60
L-4060XHA/1IYGD	1.8	3	in housing	red/green/yellow	20	70
L-934SA/1I1Y1GD	3	3	in housing	red/green/yellow	20	40
L-7104SA/3GD	3	3	in housing	green	20	40
L-710A8SA/3GD	3	3	in housing	green	20	40
L-934SA/3GD	3	3	in housing	green	20	60
L-914CK/4IDT	-	4	in housing	red	20	100
KM2520EF/4ID	1.8	4	horizontal, in housing	red	20	40
L-934SB/1I1Y2GD	3	4	in housing	red/green/yellow	20	40
L-7104SB/4GD	3	4	in housing	green	10	40

Symbol	Lum.	Red lumin.	Green lumin.	Yellow lumin.
	[mcd]	[mcd]	[mcd]	[mcd]
KM-2520EH/1ID	7...30	-	-	-
KM-2520EH/1SGD	2.6...10	-	-	-
KM-2520EJ/1SGD	5...12	-	-	-
L-710A8CB/1ID	12...25	-	-	-
L-710A8EW/1ID	12...25	-	-	-
L-934CB/1ID	18...20	-	-	-
L-934CB/1SRD	110...300	-	-	-
L-934CB/1SURDK	400...900	-	-	-
L-934EW/1ID	8...25	-	-	-
L-934RS/1SURDK	500...1200	-	-	-
L-130WDT/1EGW	-	40	40	-
L-42WUM/1EGWT	-	10...20	4...12	-
L-130WDT/1SURKS	-	400...600	12...30	-
L-7104EW/1GD	8...20	-	-	-
L-710A8CB/1GD	8...25	-	-	-
L-710A8EW/1GD	8...20	-	-	-
L-934CB/1GD	8...20	-	-	-
L-934CB/1GD-RV	8...20	-	-	-
L-934EW/1GD	8...20	-	-	-
L-934ZH/1GD	20	-	-	-
L-93A8CB/1GD	8...20	-	-	-
L-937RS/1EGW	-	6...14	6...14	-
L-7104EW/1YD	5...15	-	-	-
L-710A8CB/1YD	6...15	-	-	-
L-934CB/1YD	5...15	-	-	-
L-934EW/1YD	5...15	-	-	-
L-1384AD/1ID	12...25	-	-	-
L-1384AL/1ID	12...20	-	-	-
L-138A8QMP/1ID	10...20	-	-	-
L-1384AD/1GD	10...20	-	-	-
L-138A8QMP/1GD	6...12	-	-	-
L-1384AD/1YD	8...15	-	-	-
L-1533BQ/1ID	8...30	-	-	-
L-1533BQ/1GD	20...50	-	-	-
L-73CB/1IDA	8...30	-	-	-
L-73JB/1YDA	5...20	-	-	-
L-1503CB/1ID	8...30	-	-	-
L-1503CB/1SURDK	1900...3000	-	-	-
L-1503EB/1I1GD	-	8...30	5...20	-
L-150A9VS/1EGW	-	50	45	-
L-59BL/1EGW	-	60	50	-
L-59CB/1EGW	-	30...60	20...60	-
L-1503CB/1GD	5...20	-	-	-
L-1503CB/1YD	5...20	-	-	-
L-4060VH/2ID	8...15	-	-	-
L-4060VH/2GD	6...12	-	-	-
L-4060VH/2YD	4...8	-	-	-
L-7104FO/2ID	8...20	-	-	-
L-934DB/2ID	8...25	-	-	-
L-934EB/2ID	12...30	-	-	-
L-130WCP/2EGW	-	7...30	7...25	-
L-7104MD/1SURKCGKD	-	400...900	80...250	-
L-934MD/1LI1LGD	-	0.35...1	1...2	-
L-937EB/1EG1GEW	-	6...14	6...14	-
L-964ZM/1G1ID-RV	-	15...25	10...25	-
L-934EB/1Y1ID-RV	-	12...30	-	8...15
L-7104FO/2GD	8...20	-	-	-
L-7104GE/2GD	12...30	-	-	-
L-7104GO/2GD	10...25	-	-	-
L-7104MD/2GD	12...30	-	-	-
L-934DB/2GD	8...20	-	-	-
L-934EB/2GD	8...32	-	-	-
L-934GE/2GD	10...25	-	-	-
L-7104MD/2YD	8...15	-	-	-
L-710A8FG/2YD	12	-	-	-
L-934EB/2YD	8...15	-	-	-
L-7104FG/1Y1GD	-	-	10...25	8...15
L-7104GE/1LY1LGD	-	-	1...2	0.7...1.5
L-7104MD/1LG1LYD	-	-	0.7...1.5	1...2
L-934EB/1G1YD-RV	-	-	10...25	8...15
L-73CB/2IDA	8...30	-	-	-
L-73CB/2YDA	5...20	-	-	-
L-1503EB/2GD	15...30	-	-	-
L-4060XHA/1IYGD	-	8...15	6...12	4...8
L-934SA/1I1Y1GD	-	12...30	10...25	8...15
L-7104SA/3GD	12...30	-	-	-
L-710A8SA/3GD	8...20	-	-	-
L-934SA/3GD	8...15	-	-	-
L-914CK/4IDT	1.8...6	-	-	-
KM2520EF/4ID	7...30	-	-	-
L-934SB/1I1Y2GD	-	12...30	10...25	8...15
L-7104SB/4GD	10...25	-	-	-

Symbol	λ_d
	[nm]
KM-2520EH/1ID	625
KM-2520EH/1SGD	568
KM-2520EJ/1SGD	568
L-710A8CB/1ID	617
L-710A8EW/1ID	625
L-934CB/1ID	625
L-934CB/1SRD	640
L-934CB/1SURDK	630
L-934EW/1ID	625
L-934RS/1SURDK	630
L-130WDT/1EGW	568, 625
L-42WUM/1EGWT	568, 617
L-130WDT/1SURKS	568, 630
L-7104EW/1GD	568
L-710A8CB/1GD	568
L-710A8EW/1GD	568
L-934CB/1GD	568
L-934CB/1GD-RV	568
L-934EW/1GD	568
L-934ZH/1GD	625
L-93A8CB/1GD	568
L-937RS/1EGW	568, 617
L-7104EW/1YD	588
L-710A8CB/1YD	588
L-934CB/1YD	588
L-934EW/1YD	588
L-1384AD/1ID	617
L-1384AL/1ID	625
L-138A8QMP/1ID	617
L-1384AD/1GD	568
L-138A8QMP/1GD	568
L-1384AD/1YD	588
L-1533BQ/1ID	625
L-1533BQ/1GD	568
L-73CB/1IDA	625
L-73JB/1YDA	588
L-1503CB/1ID	625
L-1503CB/1SURDK	630
L-1503EB/1I1GD	568, 625
L-150A9VS/1EGW	565, 627
L-59BL/1EGW	565, 625
L-59CB/1EGW	568, 617
L-1503CB/1GD	568
L-1503CB/1YD	588
L-4060VH/2ID	617
L-4060VH/2GD	568
L-4060VH/2YD	588
L-7104FO/2ID	625
L-934DB/2ID	640
L-934EB/2ID	625
L-130WCP/2EGW	568, 625
L-7104MD/1SURKCGKD	570, 630
L-934MD/1LI1LGD	568, 617
L-937EB/1EG1GEW	568, 617
L-964ZM/1G1ID-RV	568, 617
L-934EB/1Y1ID-RV	588, 617
L-7104FO/2GD	568
L-7104GE/2GD	568
L-7104GO/2GD	568
L-7104MD/2GD	568
L-934DB/2GD	568
L-934EB/2GD	568
L-934GE/2GD	568
L-7104MD/2YD	588
L-710A8FG/2YD	588
L-934EB/2YD	588
L-7104FG/1Y1GD	568, 588
L-7104GE/1LY1LGD	568, 588
L-7104MD/1LG1LYD	568, 588
L-934EB/1G1YD-RV	568, 588
L-73CB/2IDA	625
L-73CB/2YDA	588
L-1503EB/2GD	568
L-4060XHA/1IYGD	568, 588, 617
L-934SA/1I1Y1GD	568, 588, 617
L-7104SA/3GD	568
L-710A8SA/3GD	568
L-934SA/3GD	568
L-914CK/4IDT	617
KM2520EF/4ID	625
L-934SB/1I1Y2GD	568, 588, 617

Features:

reversed polarity (L-934CB/1GD-RV)
with ability to assembly (L-1384AL/1ID, L-1503EB/2GD, L-964ZM/1G1ID-RV, L-4060XHA/1IYGD)

Front:

convex (KMxxxD, L-7xxx, L-93xxx, L-964ZM/1G1ID-RV, L-1xxx, L-59BL/1EGW, L-59CB/1EGW, L-4060xxxD)
flat (L-42WUM/1EGWT, L-914CK/4IDT)

Operating voltage:

1.7...2.5/1.9...2.5V DC (L-934MD/1LI1LGD)
1.85...2.5V DC (L-934CB/1SRD)
1.85...2.5/1.9...2.5V DC (L-7104GE/1LY1LGD)
1.9...2.5/1.85...2.5V DC (L-7104MD/1LG1LYD)
1.95...2.5V DC (L-xxx/1SURDK)
1.95...2.5/2.1...2.5V DC (L-7104MD/1SURKCGKD)
2...2.5V DC (KM-2520EH/1ID, KM-2520EH/1SGD, KM2520EF/4ID, L-710xxxID, L-73CB/1IDA, L-73CB/2IDA, L-934CB/1ID, L-934EW/1ID, L-934EB/2ID, L-934DB/2ID, L-934SA/3GD, L-914CK/4IDT, L-1xxx/1ID, L-4060VH/2ID)
2...2.5/2.1...2.5V DC (L-934EB/1Y1ID-RV)
2...2.5/2.2...2.5V DC (L-130WDT/1EGW, L-130WCP/2EGW, L-1503EB/1I1GD, L-150A9VS/1EGW, L-42WUM/1EGWT, L-937RS/1EGW, L-937EB/1EG1GEW, L-964ZM/1G1ID-RV, L-59BL/1EGW, L-59CB/1EGW)
2...2.5/2.2...2.5/2.1...2.5V DC (L-4060XHA/1IYGD, L-934SB/1I1Y2GD)
2.1...2.5V DC (L-7104EW/1YD, L-7104MD/2YD, L-710A8CB/1YD, L-73JB/1YDA, L-73CB/2YDA, L-934xxxYD, L-1384AD/1YD, L-1503CB/1YD, L-4060VH/2YD)
2.1...2.5/2.2...2.5V DC (L-7104FG/1Y1GD, L-934EB/1G1YD-RV)
2.1...2.5/2.2...2.5/2.2...2.5V DC (L-934SA/1I1Y1GD)
2.2...2.5V DC (KM-2520EJ/1SGD, L-7104EW/1GD, L-7104FO/2GD, L-7104GE/2GD, L-7104GO/2GD, L-7104MD/2GD, L-7104SA/3GD, L-7104SB/4GD, L-710A8xxxGD, L-934CB/1GD, L-934CB/1GD-RV, L-934EW/1GD, L-934EB/2GD, L-934ZH/1GD, L-934DB/2GD, L-934GE/2GD, L-93A8CB/1GD, L-1384AD/1GD, L-138A8QMP/1GD, L-1533BQ/1GD, L-1503CB/1GD, L-1503EB/2GD, L-4060VH/2GD)

Common:

cathode (L-130Wxxx, L-150A9VS/1EGW, L-42WUM/1EGWT, L-59BL/1EGW, L-59CB/1EGW)

Symbol	Mounting
KM-2520EH/1ID	THT
KM-2520EH/1SGD	THT
KM-2520EJ/1SGD	THT
L-710A8CB/1ID	THT
L-710A8EW/1ID	THT
L-934CB/1ID	THT
L-934CB/1SRD	THT
L-934CB/1SURDK	THT
L-934EW/1ID	THT
L-934RS/1SURDK	THT
L-130WDT/1EGW	THT
L-42WUM/1EGWT	THT
L-130WDT/1SURKS	THT
L-7104EW/1GD	THT
L-710A8CB/1GD	THT
L-710A8EW/1GD	THT
L-934CB/1GD	THT
L-934CB/1GD-RV	THT
L-934EW/1GD	THT
L-934ZH/1GD	THT
L-93A8CB/1GD	THT
L-937RS/1EGW	THT
L-7104EW/1YD	THT
L-710A8CB/1YD	THT
L-934CB/1YD	THT
L-934EW/1YD	THT
L-1384AD/1ID	THT
L-1384AL/1ID	THT
L-138A8QMP/1ID	SMD
L-1384AD/1GD	THT
L-138A8QMP/1GD	SMD
L-1384AD/1YD	THT
L-1533BQ/1ID	THT
L-1533BQ/1GD	THT
L-73CB/1IDA	THT
L-73JB/1YDA	THT
L-1503CB/1ID	THT
L-1503CB/1SURDK	THT
L-1503EB/1I1GD	THT
L-150A9VS/1EGW	THT
L-59BL/1EGW	THT
L-59CB/1EGW	THT
L-1503CB/1GD	THT
L-1503CB/1YD	THT
L-964ZM/1G1IDRV	THT
L-4060VH/2ID	THT
L-4060VH/2GD	THT
L-4060VH/2YD	THT
L-7104FO/2ID	THT
L-934DB/2ID	THT
L-934EB/2ID	THT
L-130WCP/2EGW	THT
L-7104MD/1SURKCGKD	THT
L-934MD/1LI1LGD	THT
L-937EB/1EG1GEW	THT
L-964ZM/1G1ID-RV	THT
L-934EB/1Y1ID-RV	THT
L-7104FO/2GD	THT
L-7104GE/2GD	THT
L-7104GO/2GD	THT
L-7104MD/2GD	THT
L-934DB/2GD	THT
L-934EB/2GD	THT
L-934GE/2GD	THT
L-7104MD/2YD	THT
L-710A8FG/2YD	THT
L-934EB/2YD	THT
L-7104FG/1Y1GD	THT
L-7104GE/1LY1LGD	THT
L-7104MD/1LG1LYD	THT
L-934EB/1G1YD-RV	THT
L-73CB/2IDA	THT
L-73CB/2YDA	THT
L-1503EB/2GD	THT
L-4060XHA/1IYGD	THT
L-934SA/1I1Y1GD	THT
L-7104SA/3GD	THT
L-710A8SA/3GD	THT
L-934SA/3GD	THT
L-914CK/4IDT	THT
KM2520EF/4ID	THT
L-934SB/1I1Y2GD	THT
L-7104SB/4GD	THT
