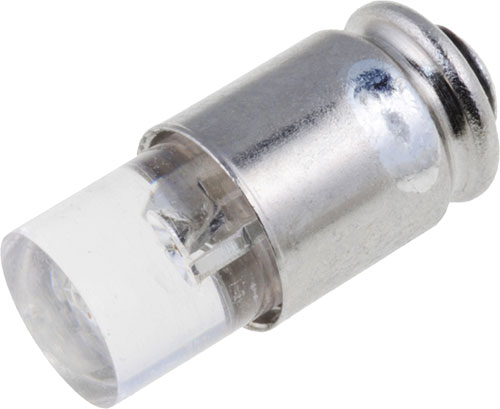

LED lamp; MARL
| Manufacturer | MARL |
| Type of lamp | LED lamp |
| Symbol | ØLED | Lens | Number of diodes | Operating temperature | Kind of bulb | Cap | Leads | Dimensions | Operating voltage | Colour | Body colour | Operating voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [°C] | [V DC] | [V AC] | |||||||||

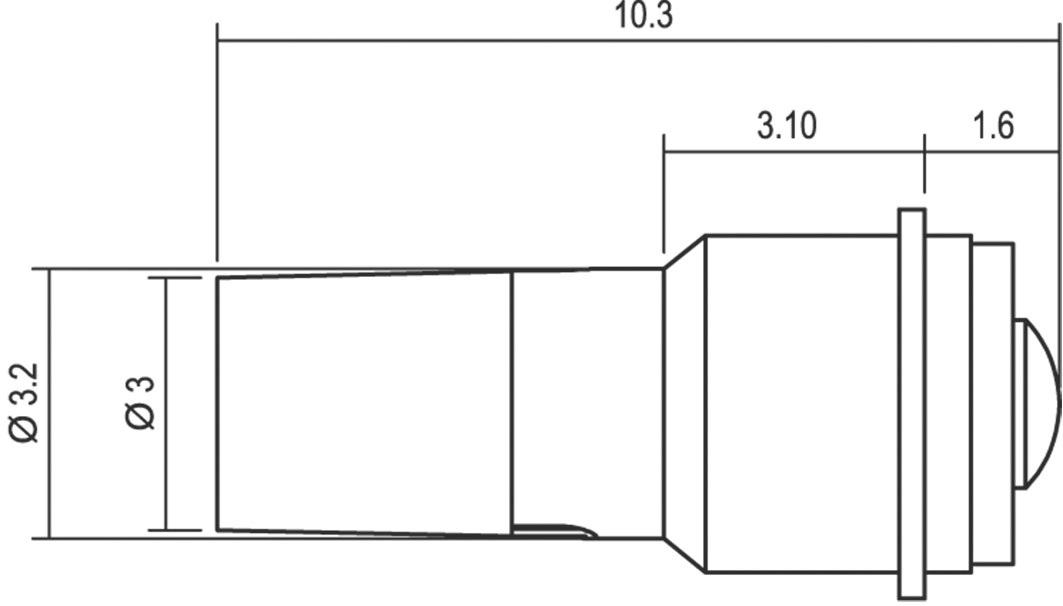

| 202-301-20-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 5...6 | red | - | - |
| 202-301-21-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 12 | red | - | - |
| 202-301-23-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 24...28 | red | - | - |
| 202-301-24-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 48 | red | - | - |
| 202-324-20-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 5...6 | green | - | - |
| 202-324-21-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 12 | green | - | - |
| 202-324-23-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 24...28 | green | - | - |
| 202-324-24-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 48 | green | - | - |
| 202-325-20-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 5...6 | yellow | - | - |
| 202-325-21-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 12 | yellow | - | - |
| 202-325-23-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 24...28 | yellow | - | - |
| 202-325-24-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 48 | yellow | - | - |
| 202-934-20-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 5...6 | blue | - | - |
| 202-934-21-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 12 | blue | - | - |
| 202-934-23-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 24...28 | blue | - | - |
| 202-934-24-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 48 | blue | - | - |
| 202-991-20-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 5...6 | white warm | - | - |
| 202-991-23-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 24...28 | white warm | - | - |
| 202-998-20-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 5...6 | white cold | - | - |
| 202-998-21-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 12 | white cold | - | - |
| 202-998-23-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 24...28 | white cold | - | - |
| 202-998-24-38 | 3 | - | 1 | -40...85 | - | SX3s | - | Fig. 1. | 48 | white cold | - | - |

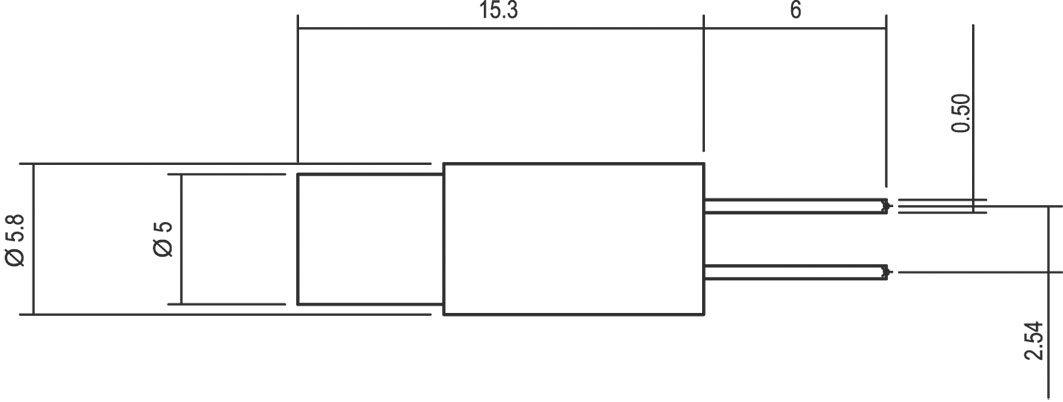

| 204-501-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 5...6 | red | black | - |
| 204-501-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 12 | red | black | - |
| 204-501-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 24...28 | red | black | - |
| 204-521-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 12 | yellow | black | - |
| 204-521-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 24...28 | yellow | black | - |
| 204-532-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 5...6 | green | black | - |
| 204-532-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 12 | green | black | - |
| 204-532-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 24...28 | green | black | - |
| 204-930-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 5...6 | blue | black | - |
| 204-930-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 12 | blue | black | - |
| 204-930-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 24...28 | blue | black | - |
| 204-993-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 12 | white warm | black | - |
| 204-993-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 24...28 | white warm | black | - |
| 204-993-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 48 | white warm | black | - |
| 204-997-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | BI-PIN | 2pin | Fig. 2. | 24...28 | white cold | black | - |
| 205-501-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 5...6 | red | silver | - |
| 205-501-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 12 | red | silver | - |
| 205-501-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 24...28 | red | silver | - |
| 205-501-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 48 | red | silver | - |
| 205-521-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 5...6 | yellow | silver | - |
| 205-521-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 12 | yellow | silver | - |
| 205-521-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 24...28 | yellow | silver | - |
| 205-521-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 48 | yellow | silver | - |
| 205-532-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 5...6 | green | silver | - |
| 205-532-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 12 | green | silver | - |
| 205-532-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 24...28 | green | silver | - |
| 205-532-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 48 | green | silver | - |
| 205-930-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 5...6 | blue | silver | - |
| 205-930-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 12 | blue | silver | - |
| 205-930-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 24...28 | blue | silver | - |
| 205-930-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 48 | blue | silver | - |
| 205-993-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 5...6 | white warm | silver | - |
| 205-993-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 12 | white warm | silver | - |
| 205-993-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 24...28 | white warm | silver | - |
| 205-993-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 48 | white warm | silver | - |
| 205-997-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 5...6 | white cold | silver | - |
| 205-997-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 12 | white cold | silver | - |
| 205-997-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 24...28 | white cold | silver | - |
| 205-997-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | S5,7s | - | Fig. 3. | 48 | white cold | silver | - |
| 206-501-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 5...6 | red | silver | - |
| 206-501-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 12 | red | silver | - |
| 206-501-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 24...28 | red | silver | - |
| 206-521-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 5...6 | yellow | silver | - |
| 206-521-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 12 | yellow | silver | - |
| 206-521-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 24...28 | yellow | silver | - |
| 206-532-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 5...6 | green | silver | - |
| 206-532-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 12 | green | silver | - |
| 206-532-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 24...28 | green | silver | - |
| 206-930-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 5...6 | blue | silver | - |
| 206-930-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 12 | blue | silver | - |
| 206-930-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 24...28 | blue | silver | - |
| 206-993-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 5...6 | white warm | silver | - |
| 206-993-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 12 | white warm | silver | - |
| 206-993-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 24...28 | white warm | silver | - |
| 206-997-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 5...6 | white cold | silver | - |
| 206-997-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 12 | white cold | silver | - |
| 206-997-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 24...28 | white cold | silver | - |
| 206-997-24-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | SX6s | - | Fig. 4. | 48 | white cold | silver | - |

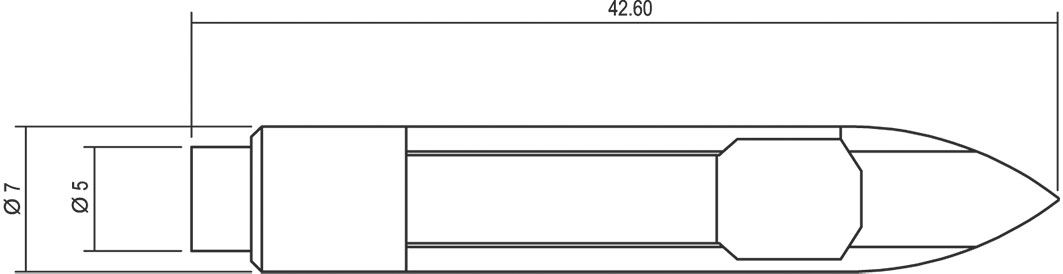

| 208-501-21-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 12 | red | - | - |
| 208-501-23-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 24...28 | red | - | - |
| 208-501-24-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 48 | red | - | - |
| 208-521-21-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 12 | yellow | - | - |
| 208-521-23-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 24...28 | yellow | - | - |
| 208-532-21-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 12 | green | - | - |
| 208-532-23-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 24...28 | green | - | - |
| 208-930-21-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 12 | blue | - | - |
| 208-930-23-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 24...28 | blue | - | - |
| 208-993-21-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 12 | white warm | - | - |
| 208-993-23-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 24...28 | white warm | - | - |
| 208-993-24-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 48 | white warm | - | - |
| 208-997-21-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 12 | white cold | - | - |
| 208-997-23-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 24...28 | white cold | - | - |
| 208-997-24-38 | 5 | transparent | 1 | -30...75 | - | T6,8 | - | Fig. 5. | 48 | white cold | - | - |
| 210-501-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 12 | red | black | - |
| 210-501-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 24...28 | red | black | - |
| 210-521-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 12 | yellow | black | - |
| 210-521-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 24...28 | yellow | black | - |
| 210-532-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 12 | green | black | - |
| 210-532-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 24...28 | green | black | - |
| 210-930-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 12 | blue | black | - |
| 210-993-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 12 | white warm | black | - |
| 210-993-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 24...28 | white warm | black | - |
| 210-997-20-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 5...6 | white cold | black | - |
| 210-997-21-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 12 | white cold | black | - |
| 210-997-23-38 | 5 | transparent | 1 | -30...75 | T1 3/4 | E10 | - | Fig. 6. | 24...28 | white cold | black | - |
| 214-324-22-50 | 5 | transparent | - | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 24 | green | - | - |
| 214-324-74-50 | 5 | transparent | - | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 48 | green | - | - |
| 214-325-22-50 | 5 | transparent | - | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 24 | yellow | - | - |
| 214-934-22-50 | 5 | transparent | 1 | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 24 | blue | - | - |
| 214-998-22-50 | 5 | transparent | - | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 24 | white cold | - | - |
| 214-998-75-50 | 5 | transparent | - | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 110 | white cold | - | - |
| 214-998-76-50 | 5 | transparent | - | -40...75 | T3 1/4 | BA9S | - | Fig. 7. | 230 | white cold | - | - |
| 235-038-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | white warm | - | 28 |
| 235-038-98 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 24 | white warm | - | 24 |
| 235-040-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | orange | - | 28 |
| 235-042-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | red | - | 28 |
| 235-043-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | yellow | - | 28 |
| 235-044-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | green | - | 28 |
| 235-044-98 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 24 | green | - | 24 |
| 235-045-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | blue | - | 28 |
| 235-046-93 | - | - | - | -30...85 | T3 1/4 | S5,7s | - | Fig. 8. | 28 | white cold | - | 28 |
| 236-038-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | white warm | - | 28 |
| 236-038-98 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 24 | white warm | - | 24 |
| 236-040-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | orange | - | 28 |
| 236-042-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | red | - | 28 |
| 236-042-98 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 24 | red | - | 24 |
| 236-043-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | yellow | - | 28 |
| 236-043-98 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 24 | yellow | - | 24 |
| 236-044-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | green | - | 28 |
| 236-045-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | blue | - | 28 |
| 236-045-98 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 24 | blue | - | 24 |
| 236-046-93 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 28 | white cold | - | 28 |
| 236-046-98 | - | - | - | -30...85 | T3 1/4 | SX6s | - | Fig. 9. | 24 | white cold | - | 24 |
| 255-501-64-38 | - | - | - | -30...85 | T3 1/4 | BA9S | - | Fig. 10. | 8...48 | red | - | 8...48 |
| 255-521-64-38 | - | - | - | -30...85 | T3 1/4 | BA9S | - | Fig. 10. | 8...48 | yellow | - | 8...48 |
| 255-532-64-38 | - | - | - | -30...85 | T3 1/4 | BA9S | - | Fig. 10. | 8...48 | green | - | 8...48 |
| 255-930-64-38 | - | - | - | -30...85 | T3 1/4 | BA9S | - | Fig. 10. | 8...48 | blue | - | 8...48 |
| 255-993-64-38 | - | - | - | -30...85 | T3 1/4 | BA9S | - | Fig. 10. | 8...48 | white warm | - | 8...48 |
| 255-997-64-38 | - | - | - | -30...85 | T3 1/4 | BA9S | - | Fig. 10. | 8...48 | white cold | - | 8...48 |
| 258-501-64-38 | - | - | - | -30...85 | - | T6,8 | - | Fig. 11. | 8...48 | red | - | 8...48 |
| 258-521-64-38 | - | - | - | -30...85 | - | T6,8 | - | Fig. 11. | 8...48 | yellow | - | 8...48 |
| 258-532-64-38 | - | - | - | -30...85 | - | T6,8 | - | Fig. 11. | 8...48 | green | - | 8...48 |
| 258-930-64-38 | - | - | - | -30...85 | - | T6,8 | - | Fig. 11. | 8...48 | blue | - | 8...48 |
| 258-993-64-38 | - | - | - | -30...85 | - | T6,8 | - | Fig. 11. | 8...48 | white warm | - | 8...48 |
| 258-997-64-38 | - | - | - | -30...85 | - | T6,8 | - | Fig. 11. | 8...48 | white cold | - | 8...48 |
