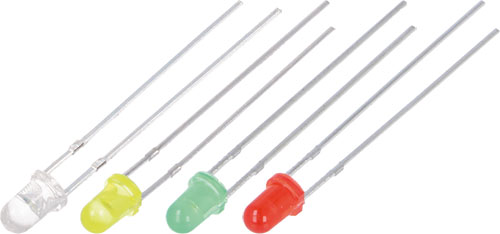

LED; THT; FORYARD
| Manufacturer | FORYARD |
| Type of diode | LED |
| Mounting | THT |
| Front | convex |
| Term. pitch | 2.54mm |
| Current | 20mA |
| Symbol | ØLED | Colour | Luminosity | View. angle | Operating voltage |
|---|---|---|---|---|---|
| [mm] | [mcd] | [°] | [V DC] | ||
| FYL-3004SRD1D | 3 | red | 80 | 40 | 1.7...2.5 |
| FYL-3014BGC1A | 3 | bluish green | 13000...18000 | 30 | 2.6...3.2 |
| FYL-3014ED1A | 3 | red | 40 | 40 | 1.7...2.5 |
| FYL-3014GC1A | 3 | yellow green | 120 | 40 | 1.8...2.6 |
| FYL-3014GD1A | 3 | yellow green | 40 | 40 | 1.8...2.6 |
| FYL-3014HD1A | 3 | red | 10 | 40 | 1.8...2.6 |
| FYL-3014KURC1A | 3 | red | 2000...3000 | 30 | 1.7...2.4 |
| FYL-3014LRD1A | 3 | red | 250 | 40 | 1.7...2.5 |
| FYL-3014LRD1A-L8.5 | 3 | red | 250 | 40 | 1.7...2.5 |
| FYL-3014PGC1A | 3 | green | 15000 | 25 | 2.8...3.6 |
| FYL-3014PURC1A | 3 | red | 3800...7000 | 30 | 1.8...2.5 |
| FYL-3014SRD1A | 3 | red | 80 | 40 | 1.7...2.5 |
| FYL-3014SRT1A | 3 | red | 200 | 30 | 1.7...2.5 |
| FYL-3014SUGC1A | 3 | yellow green | 600 | 30 | 1.8...2.6 |
| FYL-3014SURC1A | 3 | red | 1380...3000 | 30 | 1.8...2.4 |
| FYL-3014SUYC1A | 3 | yellow | 3000 | 30 | 1.7...2.5 |
| FYL-3014UBC1A | 3 | blue | 3500 | 30 | 2.8...3.6 |
| FYL-3014UWC1A | 3 | white cold | 8000...15000 | 30 | 2.8...3.6 |
| FYL3014UWC1G7KTR13 | 3 | white | 4000...6000(typ)-10000 | 55 | 2.6...3.4 |
| FYL-3014YD1A-C | 3 | yellow | 20...100 | 40 | 1.8...2.4 |
| FYL-3019RGW1A-CC | 3 | red/yellow-green | - | 30 | 1.8...2.4/1.8...2.5 |
| FYL-48D4UWC1A | 4.8 | white cold | 1800...2300 | 110 | 2.8...3.4 |
| FYL-5013GD1C | 5 | yellow green | 40...70 | 30 | 1.8...2.6 |
| FYL-5013HD1C | 5 | red | 4...10 | 30 | 1.8...2.5 |
| FYL-5013LRC1C | 5 | red | 500...1000 | 15 | 1.8...2.4 |
| FYL-5013NUYC1C | 5 | yellow | 10000...15000 | 15 | 1.7...2.5 |
| FYL-5013SRC1C | 5 | red | 250...400 | 15 | 1.7...2.5 |
| FYL-5013SRD1C | 5 | red | 80 | 30 | 1.7...2.5 |
| FYL-5013SUGC1C | 5 | yellow green | 1500...2500 | 15 | 1.8...2.5 |
| FYL-5013SURC1C | 5 | red | 4000 | 15 | 1.7...2.5 |
| FYL-5013SUYC1C | 5 | yellow | 4000 | 15 | 1.7...2.5 |
| FYL-5013YD1C | 5 | yellow | 20...40 | 30 | 1.7...2.5 |
| FYL-5013YD1C-C | 5 | yellow | 45...150 | 20 | 1.8...2.4 |
| FYL-5014BGC1C | 5 | bluish green | 18000...30000 | 15 | 2.8...3.6 |
| FYL-5014BGC1H-TL | 5 | bluish green | 15500...18500 | 25 | 2.6...3.4 |
| FYL-5014NURC1H-TL | 5 | red | 4750...6000 | 30 | 1.7...2.5 |
| FYL-5014NUYC1H-TL | 5 | yellow | 4750...6000 | 30 | 1.7...2.5 |
| FYL-5014PGC1C | 5 | green | 22000...27000 | 15 | 2.8...3.6 |
| FYL-5014UBC1C | 5 | blue | 6000 | 15 | 2.8...3.6 |
| FYL-5014UWC1C-15 | 5 | white cold | 23500...33000 | 15 | 2.8...3.4 |
| FYL-5016EGW1C | 5 | red/green | - | 50 | 1.8...2.4/1.8...2.6 |
| FYL-5019EGW1B-CC | 5 | orange/yellow-green | - | 50 | 1.8...2.4/1.8...2.6 |
| FYL-5019SURUBW1B-C | 5 | red/blue | - | - | 1.8...2.4/2.8...3.4 |
| FYL-5464UWW1C-S2 | - | white cold | 3500 | - | 2.8...3.4 |
| Symbol | Chromatic coord. | λd | Dimensions | Variant | Vert./horiz. view. angle | Features | Red lumin. | Green lumin. | Orange lumin. | Common electrode | Blue lumin. | No. of term. | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [nm] | [mm] | [°] | [mcd] | [mcd] | [mcd] | [mcd] | |||||||
| FYL-3004SRD1D | - | 640...650 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014BGC1A | - | 500...510 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014ED1A | - | 618...628 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014GC1A | - | 565...575 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014GD1A | - | 565...575 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014HD1A | - | 660 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014KURC1A | - | 620...630 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014LRD1A | - | 630...640 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014LRD1A-L8.5 | - | 630...640 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014PGC1A | - | 517...527 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014PURC1A | - | 618...630 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014SRD1A | - | 640...650 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014SRT1A | - | 640...650 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014SUGC1A | - | 565...575 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014SURC1A | - | 618...630 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014SUYC1A | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014UBC1A | - | 464...474 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3014UWC1A | x: 0.29; y: 0.3 | - | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL3014UWC1G7KTR13 | x: 0.32; y: 0.34 | - | - | - | - | - | - | - | - | - | - | 2 | Ammo Pack |
| FYL-3014YD1A-C | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-3019RGW1A-CC | - | 566...574, 624...633 | - | bicolour | - | - | 150 | 150 | - | cathode | - | 3 | - |
| FYL-48D4UWC1A | x: 0.29; y: 0.28 | - | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013GD1C | - | 565...575 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013HD1C | - | 660 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013LRC1C | - | 630...640 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013NUYC1C | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013SRC1C | - | 645 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013SRD1C | - | 645 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013SUGC1C | - | 566...573 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013SURC1C | - | 620...630 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013SUYC1C | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013YD1C | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5013YD1C-C | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014BGC1C | - | 500...510 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014BGC1H-TL | - | 500...510 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014NURC1H-TL | - | 618...630 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014NUYC1H-TL | - | 585...595 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014PGC1C | - | 517...527 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014UBC1C | - | 464...474 | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5014UWC1C-15 | x: 0.29; y: 0.29 | - | - | - | - | - | - | - | - | - | - | 2 | - |
| FYL-5016EGW1C | - | 563...573, 620...630 | - | bipolar, bicolour | - | - | 40 | 80 | - | - | 2 | - | |
| FYL-5019EGW1B-CC | - | 563...573, 618...630 | - | bicolour | - | - | - | 80 | 40 | cathode | - | 3 | - |
| FYL-5019SURUBW1B-C | - | 464...474, 618...627 | - | bicolour | - | - | 800 | - | - | cathode | 1100 | 3 | - |
| FYL-5464UWW1C-S2 | x: 0.3; y: 0.3 | - | 5x4 | - | 80/40 | without flange | - | - | - | - | - | 2 | - |
