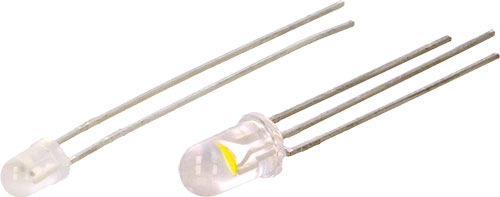

LED; THT; LITEON
| Manufacturer | LITEON |
| Type of diode | LED |
| Mounting | THT |
| Front | convex |
| Lens | white, diffused |
| Current | 20mA |
| Term. pitch | 2.54mm |
| Symbol | Variant | ØLED | No. of term. | View. angle | Colour | Common electrode | Chromatic coord. | Operating voltage |
|---|---|---|---|---|---|---|---|---|
| [mm] | [°] | [V DC] | ||||||
| LTL14CGEFJ | bipolar | 3 | 2 | 100 | red/yellow-green | - | - | 1.6...2.6/1.6...2.6 |
| LTL14CGFAJ | bipolar | 3 | 2 | 110 | orange/yellow-green | - | - | 2.1...2.6/2.1...2.6 |
| LTL14CGSEJ | bipolar | 3 | 2 | 100 | yellow/green | - | - | 1.6...2.6/1.6...2.6 |
| LTL1BEKGYJ | bicolour | 3 | 3 | 45 | yellow/green | cathode | - | 2...2.4/2...2.4 |
| LTL1BETBYJR5 | bicolour | 3 | 3 | 40 | blue/amber | cathode | - | 3.1...3.8/2.05...2.4 |
| LTL30EGRPJ | bicolour | 5 | 3 | 50 | red/green | cathode | - | 1.6...2.6/1.6...2.6 |
| LTL30EJ9NN | bicolour | 5 | 3 | 30 | yellow/green | cathode | - | 2.1...2.4/2.1...2.4 |
| LTL30ETBEQJA | bicolour | 5 | 3 | 55 | red/blue | anode | - | 1.6...2.6/2.6...3.8 |
| LTW30EEDYJA | bicolour | 5 | 3 | 30 | red/cold white | anode | x: 0.31; y: 0.32 | 1.5...2.5/2.5...3.2 |
| Symbol | Red lumin. | Green lumin. | Orange lumin. | Yellow lumin. | Amber lumin. | Blue lumin. | Wavelength | White lumin. |
|---|---|---|---|---|---|---|---|---|
| [mcd] | [mcd] | [mcd] | [mcd] | [mcd] | [mcd] | [nm] | [mcd] | |
| LTL14CGEFJ | 50...240 | 30...140 | - | - | - | - | 563...571, 617...632 | - |
| LTL14CGFAJ | - | 23...140 | 23...140 | - | - | - | 565...577, 598...612 | - |
| LTL14CGSEJ | - | 30...140 | - | 50...240 | - | - | 563...571, 585...596 | - |
| LTL1BEKGYJ | - | 50...400 | - | 85...680 | - | - | 567...576, 594...600 | - |
| LTL1BETBYJR5 | - | - | - | - | 140...680 | 110...880 | 470, 592 | - |
| LTL30EGRPJ | 140...400 | 180...520 | - | - | - | - | 566...578, 621...642 | - |
| LTL30EJ9NN | - | 120...240 | - | 240...400 | - | - | 569, 590 | - |
| LTL30ETBEQJA | 680...1900 | - | - | - | - | 180...520 | 462...475, 618...632 | - |
| LTW30EEDYJA | 4500...9300 | - | - | - | - | - | 620...630 | 8000...18000 |
