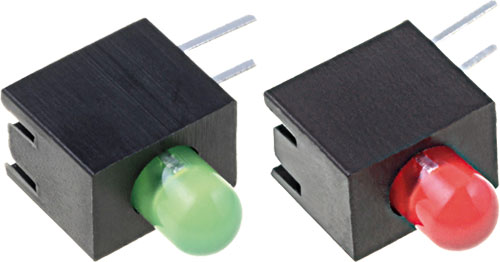

LED; THT; OPTOSUPPLY
| Manufacturer | OPTOSUPPLY |
| Type of diode | LED |
| Mounting | THT |
| Lens | diffused |
| Front | convex |
| Symbol | Number of diodes | Variant | Operating voltage |
|---|---|---|---|
| [V DC] | |||
| OSG8HA3E34X-3F1A | 1 | in housing | 1.9...2.6 |
| OSR6LU3E34X-3F1A | 1 | in housing | 1.8...2.6 |
| OSY5LU3E34X-3F1A | 1 | in housing | 1.8...2.6 |
| OSRGLX3E34X-3F2B | 2 | bicolour, in housing | 1.8...2.6/1.8...2.6 |
| OSTSLT3E34X-3F3C | 3 | tricolour, in housing | 1.8...2.6/1.8...2.6/1.8...2.6 |
| OSGRLX3E34X-3F2B | 2 | bicolour, in housing | 1.8...2.6/1.8...2.6 |
| OSG8NX3E34B-3F2B | 2 | in housing | 1.8...2.6 |
| OSR6LX3E34B-3F2B | 2 | in housing | 1.8...2.6 |
| OSY5LX3E34B-3F2B | 2 | in housing | 1.8...2.6 |
| OSYGLX3E34B-3F2B | 2 | in housing | 1.8...2.6 |
| OSG8NX3E34B-3F3C | 3 | in housing | 1.8...2.6 |
| OSR6LX3E34B-3F3C | 3 | in housing | 1.8...2.6 |
| OSY5LX3E34B-3F3C | 3 | in housing | 1.8...2.6 |
| OSG8HA5F64X-5F1A | 1 | in housing | 1.8...2.6 |
| OSG8HX5F64X-5F2A | 2 | in housing | 2.1...2.6 |
| OSR5JA5F64X-5F1A | 1 | in housing | 1.8...2.6 |
| OSR5JX5F64X-5F2A | 2 | in housing | 2.1...2.6 |
| OSRGH23E62X-3F2B | 2 | in housing | 2.1...2.6 |
| OSRGHX5F64X-5F2A | 2 | in housing | 2.1...2.6 |
| OSY5JA5F64X-5F1A | 1 | in housing | 2.1...2.6 |
| OSY5JX5F64X-5F2A | 2 | in housing | 2.1...2.6 |
| OSYGH23E62X-3F2B | 2 | in housing | 2.1...2.6 |
| OSYGHX5F64X-5F2A | 2 | in housing | 2.1...2.6 |
| Symbol | Colour | λd | Luminosity |
|---|---|---|---|
| [nm] | [mcd] | ||
| OSG8HA3E34X-3F1A | green | 565...575 | 68...100 |
| OSR6LU3E34X-3F1A | red | 630...650 | 100...150 |
| OSY5LU3E34X-3F1A | yellow | 585...595 | 110...220 |
| OSRGLX3E34X-3F2B | red/yellow-green | 565...575, 630...650 | - |
| OSTSLT3E34X-3F3C | red, green-yellow, yellow | 565...575, 585...595, 630...650 | - |
| OSGRLX3E34X-3F2B | red/yellow-green | 565...575, 630...650 | - |
| OSG8NX3E34B-3F2B | yellow green | 565...575 | 40...60 |
| OSR6LX3E34B-3F2B | red | 630...650 | 68...100 |
| OSY5LX3E34B-3F2B | yellow | 585...595 | 100...150 |
| OSYGLX3E34B-3F2B | yellow/yellow green | 565...575, 585...595 | - |
| OSG8NX3E34B-3F3C | yellow green | 565...575 | 40...60 |
| OSR6LX3E34B-3F3C | red | 630...650 | 68...100 |
| OSY5LX3E34B-3F3C | yellow | 585...595 | 100...150 |
| OSG8HA5F64X-5F1A | yellow | 565...575 | 45...68 |
| OSG8HX5F64X-5F2A | yellow green | 565...575 | 45...68 |
| OSR5JA5F64X-5F1A | red | 620...630 | 100...150 |
| OSR5JX5F64X-5F2A | red | 620...630 | 100...150 |
| OSRGH23E62X-3F2B | red/yellow-green | 565...575, 620...630 | - |
| OSRGHX5F64X-5F2A | red/yellow-green | 565...575, 620...630 | - |
| OSY5JA5F64X-5F1A | yellow | 585...595 | 100...150 |
| OSY5JX5F64X-5F2A | yellow | 585...595 | 100...150 |
| OSYGH23E62X-3F2B | yellow/yellow green | 565...575, 585...595 | - |
| OSYGHX5F64X-5F2A | yellow/yellow green | 565...575, 585...595 | - |
| Symbol | ØLED | Viewing angle | Current | Red lumin. | Green lumin. | Yellow lumin. |
|---|---|---|---|---|---|---|
| [mm] | [°] | [mA] | [mcd] | [mcd] | [mcd] | |
| OSG8HA3E34X-3F1A | 3 | 30 | 20 | - | - | - |
| OSR6LU3E34X-3F1A | 3 | 30 | 20 | - | - | - |
| OSY5LU3E34X-3F1A | 3 | 30 | 20 | - | - | - |
| OSRGLX3E34X-3F2B | 3 | 30 | 20 | 100...150 | 68...100 | - |
| OSTSLT3E34X-3F3C | 3 | 30 | 20 | 100...150 | 68...100 | 100...150 |
| OSGRLX3E34X-3F2B | 3 | 30 | 20 | 100...150 | 68...100 | - |
| OSG8NX3E34B-3F2B | 3 | 30 | 20 | - | - | - |
| OSR6LX3E34B-3F2B | 3 | 30 | 20 | - | - | - |
| OSY5LX3E34B-3F2B | 3 | 30 | 20 | - | - | - |
| OSYGLX3E34B-3F2B | 3 | 30 | 20 | - | 40...50 | 40...55 |
| OSG8NX3E34B-3F3C | 3 | 30 | 20 | - | - | - |
| OSR6LX3E34B-3F3C | 3 | 30 | 20 | - | - | - |
| OSY5LX3E34B-3F3C | 3 | 30 | 20 | - | - | - |
| OSG8HA5F64X-5F1A | 5 | 60 | 30 | - | - | - |
| OSG8HX5F64X-5F2A | 5 | 60 | 30 | - | - | - |
| OSR5JA5F64X-5F1A | 5 | 60 | 30 | - | - | - |
| OSR5JX5F64X-5F2A | 5 | 60 | 30 | - | - | - |
| OSRGH23E62X-3F2B | 3 | 60 | 30 | - | - | - |
| OSRGHX5F64X-5F2A | 5 | 60 | 30 | - | - | - |
| OSY5JA5F64X-5F1A | 5 | 60 | 30 | - | - | - |
| OSY5JX5F64X-5F2A | 5 | 60 | 30 | - | - | - |
| OSYGH23E62X-3F2B | 3 | 60 | 30 | - | - | - |
| OSYGHX5F64X-5F2A | 5 | 60 | 30 | - | - | - |
