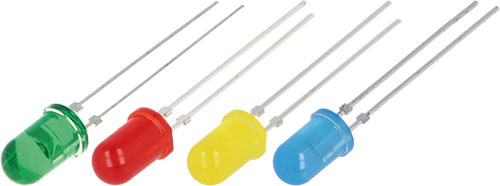

LED; THT; VISHAY
| Manufacturer | VISHAY |
| Type of diode | LED |
| Mounting | THT |
| Symbol | ØLED | Colour | Luminosity | Luminosity | View. angle | Current | Operating voltage |
|---|---|---|---|---|---|---|---|
| [mm] | [mcd] | [mlm] | [°] | [mA] | [V DC] | ||
| TLUR2400 | 1.8 | red | 4...15 | - | 20 | 10 | 2...3 |
| TLUG2400 | 1.8 | green | 1.6...10 | - | 20 | 10 | 2.4...3 |
| TLUY2400 | 1.8 | yellow | 1...8 | - | 20 | 10 | 2.4...3 |
| TLUY2401 | 1.8 | yellow | 2.5...12.5 | - | 20 | 10 | 2.4...3 |
| TLUO2401 | 1.8 | red | 4...20 | - | 20 | 10 | 2...3 |
| TLUR2401 | 1.8 | red | 4...32 | - | 40 | 20 | 2...3 |
| TLUG2401 | 1.8 | green | 4...12 | - | 40 | 2 | 2.4...3 |
| TLUY2401-AS12 | 1.8 | yellow | 2.5...12.5 | - | 20 | 20 | 2.4...3 |
| TLHA44R1S2 | 3 | amber | 112...280 | - | 30 | 20 | 2...2.6 |
| TLVD4200-MSZ | 3 | red | - | 40...130 | 85 | 10 | 1.8...2.2 |
| TLLR4400 | 3 | red | 0.63...1.2 | - | 50 | 2 | 1.9...2.4 |
| TLLR4400-AS12Z | 3 | red | 0.63...1.2 | - | 25 | 2 | 1.9...2.4 |
| TLLR4401 | 3 | red | 1...2 | - | 50 | 2 | 1.9...2.4 |
| TLHR4600 | 3 | red | 1...4 | - | 60 | 10 | 2...3 |
| TLHR4400 | 3 | red | 1.6...13 | - | 30 | 20 | 2...3 |
| TLHR4400-AS12Z | 3 | red | 1.6...13 | - | 30 | 10 | 2...3 |
| TLHR4605 | 3 | red | 2.5...6 | - | 120 | 10 | 2...3 |
| TLHR4605-MS12Z | 3 | red | 2.5...6 | - | 60 | 10 | 2...3 |
| TLHR4401 | 3 | red | 2.5...14 | - | 60 | 10 | 2...3 |
| TLHR4200 | 3 | red | 4...8 | - | 22 | 10 | 2...3 |
| TLUR4400 | 3 | red | 4...15 | - | 30 | 20 | 2...3 |
| TLUR4401 | 3 | red | 4...32 | - | 30 | 20 | 2...3 |
| TLHK4600 | 3 | red | 6.3...15 | - | 60 | 10 | 1.9...2.6 |
| TLHR4405 | 3 | red | 6.3...15 | - | 60 | 10 | 2...3 |
| TLHR4900 | 3 | red | 6.3...25 | - | 32 | 10 | 2...3 |
| TLLK4401 | 3 | red | 6.3...32 | - | 30 | 2 | 1.6...2.2 |
| TLLK4401-AS21 | 3 | red | 6.3...32 | - | 30 | 2 | 1.6...2.2 |
| TLHR4205 | 3 | red | 10...15 | - | 22 | 20 | 2...3 |
| TLDR4400 | 3 | red | 25...45 | - | 80 | 20 | 1.8...2.2 |
| TLHK4200 | 3 | red | 25...100 | - | 22 | 10 | 1.9...2.6 |
| TLVD4200 | 3 | red | 40...130 | - | 85 | 20 | 1.8...2.2 |
| TLDR4900 | 3 | red | 63...200 | - | 32 | 20 | 1.8...2.2 |
| TLDR4901 | 3 | red | 63...200 | - | 16 | 20 | 1.8...2.2 |
| TLHK46Q1R2 | 3 | red | 71...180 | - | 60 | 20 | 2...2.6 |
| TLHK44R1S2 | 3 | red | 112...280 | - | 30 | 20 | 1.9...2.6 |
| TLHK42S1T2 | 3 | red | 180...450 | - | 22 | 20 | 1.9...2.6 |
| TLHK42T1U2 | 3 | red | 280...710 | - | 44 | 20 | 1.9...2.6 |
| TLHO4400 | 3 | orange | 1.6...13 | - | 60 | 10 | 2.4...3 |
| TLHR4400-AS12 | 3 | orange | 1.6...13 | - | 60 | 10 | 2.4...3 |
| TLHO4200 | 3 | orange | 4...10 | - | 22 | 10 | 2.4...3 |
| TLHO4201 | 3 | orange | 10...18 | - | 22 | 10 | 2.4...3 |
| TLHF4600 | 3 | orange | 26 | - | 60 | 10 | 2...2.6 |
| TLHF4601 | 3 | orange | 40...125 | - | 60 | 10 | 2...2.6 |
| TLHF4900 | 3 | orange | 63...300 | - | 16 | 10 | 1.9...2.6 |
| TLLG4400 | 3 | green | 0.63...1.2 | - | 50 | 2 | 1.9...2.4 |
| TLLG4401 | 3 | green | 1...2 | - | 30 | 20 | 1.9...2.4 |
| TLLG4401-AS12 | 3 | green | 1...2 | - | 25 | 2 | 1.9...2.4 |
| TLHG4600 | 3 | green | 1...4 | - | 60 | 10 | 2.4...3 |
| TLHG4400 | 3 | green | 2.5...13 | - | 30 | 20 | 2.4...3 |
| TLHG4400-AS12 | 3 | green | 2.5...13 | - | 30 | 20 | 2.4...3 |
| TLHG4605 | 3 | green | 4...6 | - | 120 | 10 | 2.4...3 |
| TLHG4401 | 3 | green | 4...14 | - | 30 | 20 | 2.4...3 |
| TLHG4200 | 3 | green | 6.3...10 | - | 22 | 10 | 2.4...3 |
| TLHG4405 | 3 | green | 6.3...15 | - | 30 | 20 | 2.4...3 |
| TLHG44K1M2 | 3 | green | 7.1...28 | - | 30 | 10 | 2.1...2.6 |
| TLHG4201 | 3 | green | 10...15 | - | 22 | 10 | 2.4...3 |
| TLVG4200 | 3 | green | 10...30 | - | 85 | 20 | 2.4...3 |
| TLHG4205 | 3 | green | 16...20 | - | 44 | 10 | 2.4...3 |
| TLHG4400-AS12Z | 3 | green | 16...32 | - | 30 | 20 | 2.4...3 |
| TLHG4900 | 3 | green | 16...37 | - | 32 | 10 | 2.4...3 |
| TLLY4400 | 3 | yellow | 0.63...1.2 | - | 50 | 2 | 2.4...2.9 |
| TLLY4401 | 3 | yellow | 0.63...1.2 | - | 50 | 2 | 2.4...2.9 |
| TLHY4600 | 3 | yellow | 0.63...3.5 | - | 60 | 10 | 2.4...3 |
| TLHY4400 | 3 | yellow | 1.6...10 | - | 30 | 20 | 2.4...3 |
| TLHY4400-MS12 | 3 | yellow | 1.6...10 | - | 30 | 20 | 2.4...3 |
| TLHY4605 | 3 | yellow | 2.5...5 | - | 60 | 10 | 2.4...3 |
| TLHY4401 | 3 | yellow | 2.5...10.5 | - | 30 | 20 | 2.4...3 |
| TLHY4200 | 3 | yellow | 4...10 | - | 22 | 10 | 2.4...3 |
| TLHY4405 | 3 | yellow | 6.3...11 | - | 30 | 20 | 2.4...3 |
| TLHY4405-MS12 | 3 | yellow | 6.3...11 | - | 30 | 10 | 2.4...3 |
| TLLE4401 | 3 | yellow | 6.3...32 | - | 30 | 2 | 1.6...2.2 |
| TLHY4205 | 3 | yellow | 10...20 | - | 44 | 10 | 2.4...3 |
| TLHE4600 | 3 | yellow | 10...26 | - | 60 | 10 | 1.9...2.6 |
| TLVY4200 | 3 | yellow | 10...30 | - | 85 | 20 | 2.4...3 |
| TLHE44R1S2-26 | 3 | yellow | 112...280 | - | 30 | 20 | 2...2.6 |
| VLHW5100 | 5 | white | 5600...11200 | - | 10 | 20 | 2.8...3.6 |
| TLLR5400 | 5 | red | 0.63...1.2 | - | 25 | 2 | 1.9...2.4 |
| TLLR5401 | 5 | red | 1...2 | - | 50 | 2 | 1.9...2.4 |
| TLHR5400 | 5 | red | 1.6...10 | - | 60 | 10 | 2...3 |
| TLHR5400-AS12Z | 5 | red | 1.6...10 | - | 30 | 10 | 2...3 |
| TLHR6400 | 5 | red | 1.6...10 | - | 30 | 10 | 2...3 |
| TLHR6400-CS12Z | 5 | red | 1.6...10 | - | 30 | 20 | 2...3 |
| TLHR5401 | 5 | red | 4...12 | - | 30 | 20 | 2...3 |
| TLHR6401 | 5 | red | 4...12 | - | 30 | 10 | 2...3 |
| TLUR5400 | 5 | red | 4...15 | - | 30 | 20 | 2...3 |
| TLUR5401 | 5 | red | 4...15 | - | 30 | 20 | 2...3 |
| TLHR5405 | 5 | red | 6.3...14 | - | 60 | 10 | 2...3 |
| TLHR6405 | 5 | red | 6.3...14 | - | 30 | 10 | 2...3 |
| TLHR5200 | 5 | red | 10...50 | - | 28 | 10 | 2...3 |
| TLDR5400 | 5 | red | 35...70 | - | 60 | 20 | 1.8...2.2 |
| TLDR6400-CSZ | 5 | red | 35...70 | - | 30 | 20 | 1.8...2.2 |
| TLHK5100 | 5 | red | 320...1400 | - | 18 | 20 | 2...2.6 |
| TLDR5800 | 5 | red | 1000...2500 | - | 4 | 20 | 1.8...2.2 |
| TLHK5800 | 5 | red | 1000...5500 | - | 4 | 20 | 1.9...2.6 |
| TLCS5100 | 5 | red | 2400...7500 | - | 9 | 50 | 2.1...2.7 |
| TLCR5100 | 5 | red | 4300...11000 | - | 18 | 50 | 2.1...2.7 |
| VLCS5130 | 5 | red | 7500...25000 | - | 9 | 50 | 2.2...3 |
| TLCR5800 | 5 | red | 7500...35000 | - | 8 | 50 | 2.1...2.7 |
| VLCS5830 | 5 | red | 24000...65000 | - | 4 | 50 | 2.2...3 |
| TLLG5420 | 5 | green | 1...3.5 | - | 25 | 2 | 1.9...2.2 |
| TLHG5420 | 5 | green | 6.3...20 | - | 25 | 20 | 2.1...2.4 |
| TLHG5420-ASZ | 5 | green | 6.3...20 | - | 25 | 10 | 2.1...2.4 |
| TLHG5420-KSZ | 5 | green | 6.3...20 | - | 25 | 10 | 2.1...2.4 |
| TLHG6420 | 5 | green | 6.3...20 | - | 25 | 20 | 2.1...2.4 |
| TLHG6420-ASZ | 5 | green | 6.3...20 | - | 25 | 10 | 2.1...2.4 |
| TLHG6420-CSZ | 5 | green | 6.3...20 | - | 25 | 20 | 2.1...2.4 |
| TLCYG5100 | 5 | yellow green | 1350...3500 | - | 9 | 50 | 2.2...2.7 |
| TLHY5400 | 5 | yellow | 1.6...10 | - | 60 | 10 | 2.4...3 |
| TLHY5400-AS12Z | 5 | yellow | 1.6...10 | - | 30 | 10 | 2.4...3 |
| TLHY6400 | 5 | yellow | 1.6...10 | - | 30 | 10 | 2.4...3 |
| TLHY5401 | 5 | yellow | 4...12 | - | 30 | 10 | 2.4...3 |
| TLHY5405 | 5 | yellow | 6.3...14 | - | 60 | 10 | 2.4...3 |
| TLHY6405 | 5 | yellow | 6.3...14 | - | 30 | 10 | 2.4...3 |
| TLHE5800 | 5 | yellow | 1000...3500 | - | 4 | 20 | 2...2.6 |
| TLCY5200 | 5 | yellow | 1350...4000 | - | 15 | 50 | 2.1...2.7 |
| TLCY6800 | 5 | yellow | 5750...25000 | - | 4 | 50 | 2.1...2.7 |
| TLCY5800 | 5 | yellow | 7500...35000 | - | 8 | 50 | 2.1...2.7 |
| Symbol | Front | λd | Chromatic coord. |
|---|---|---|---|
| [nm] | |||
| TLUR2400 | convex | 630 | - |
| TLUG2400 | convex | 562...575 | - |
| TLUY2400 | convex | 581...594 | - |
| TLUY2401 | convex | 581...594 | - |
| TLUO2401 | convex | 612...625 | - |
| TLUR2401 | convex | 630 | - |
| TLUG2401 | convex | 568...575 | - |
| TLUY2401-AS12 | convex | 581...594 | - |
| TLHA44R1S2 | convex | 612...625 | - |
| TLVD4200-MSZ | recessed | 640 | - |
| TLLR4400 | convex | 612...625 | - |
| TLLR4400-AS12Z | convex | 612...625 | - |
| TLLR4401 | convex | 612...625 | - |
| TLHR4600 | convex | 612...625 | - |
| TLHR4400 | convex | 612...625 | - |
| TLHR4400-AS12Z | convex | 612...625 | - |
| TLHR4605 | convex | 612...625 | - |
| TLHR4605-MS12Z | convex | 612...625 | - |
| TLHR4401 | convex | 612...625 | - |
| TLHR4200 | convex | 612...625 | - |
| TLUR4400 | convex | 630 | - |
| TLUR4401 | convex | 630 | - |
| TLHK4600 | convex | 630 | - |
| TLHR4405 | convex | 612...625 | - |
| TLHR4900 | convex | 612...625 | - |
| TLLK4401 | convex | 626...639 | - |
| TLLK4401-AS21 | convex | 626...639 | - |
| TLHR4205 | convex | 612...625 | - |
| TLDR4400 | convex | 648 | - |
| TLHK4200 | convex | 630 | - |
| TLVD4200 | recessed | 640 | - |
| TLDR4900 | convex | 648 | - |
| TLDR4901 | convex | 648 | - |
| TLHK46Q1R2 | convex | 630 | - |
| TLHK44R1S2 | convex | 630 | - |
| TLHK42S1T2 | convex | 630 | - |
| TLHK42T1U2 | convex | 630 | - |
| TLHO4400 | convex | 598...611 | - |
| TLHR4400-AS12 | convex | 598...611 | - |
| TLHO4200 | convex | 598...611 | - |
| TLHO4201 | convex | 598...611 | - |
| TLHF4600 | convex | 605 | - |
| TLHF4601 | convex | 602...609 | - |
| TLHF4900 | convex | 598...611 | - |
| TLLG4400 | convex | 565...575 | - |
| TLLG4401 | convex | 562...575 | - |
| TLLG4401-AS12 | convex | 562...575 | - |
| TLHG4600 | convex | 562...575 | - |
| TLHG4400 | convex | 562...575 | - |
| TLHG4400-AS12 | convex | 562...575 | - |
| TLHG4605 | convex | 562...575 | - |
| TLHG4401 | convex | 562...575 | - |
| TLHG4200 | convex | 562...575 | - |
| TLHG4405 | convex | 562...575 | - |
| TLHG44K1M2 | convex | 562...575 | - |
| TLHG4201 | convex | 562...575 | - |
| TLVG4200 | recessed | 562...575 | - |
| TLHG4205 | convex | 562...575 | - |
| TLHG4400-AS12Z | convex | 562...575 | - |
| TLHG4900 | convex | 562...575 | - |
| TLLY4400 | convex | 581...594 | - |
| TLLY4401 | convex | 581...594 | - |
| TLHY4600 | convex | 581...594 | - |
| TLHY4400 | convex | 581...594 | - |
| TLHY4400-MS12 | convex | 581...594 | - |
| TLHY4605 | convex | 581...594 | - |
| TLHY4401 | convex | 581...594 | - |
| TLHY4200 | convex | 581...594 | - |
| TLHY4405 | convex | 581...594 | - |
| TLHY4405-MS12 | convex | 581...594 | - |
| TLLE4401 | convex | 581...594 | - |
| TLHY4205 | convex | 581...594 | - |
| TLHE4600 | convex | 581...594 | - |
| TLVY4200 | recessed | 581...594 | - |
| TLHE44R1S2-26 | convex | 583...594 | - |
| VLHW5100 | convex | - | x: 0.33; y: 0.33 |
| TLLR5400 | convex | 612...625 | - |
| TLLR5401 | convex | 612...625 | - |
| TLHR5400 | convex | 612...625 | - |
| TLHR5400-AS12Z | convex | 612...625 | - |
| TLHR6400 | convex | 612...630 | - |
| TLHR6400-CS12Z | convex | 612...625 | - |
| TLHR5401 | convex | 612...625 | - |
| TLHR6401 | convex | 612...630 | - |
| TLUR5400 | convex | 630 | - |
| TLUR5401 | convex | 630 | - |
| TLHR5405 | convex | 612...625 | - |
| TLHR6405 | convex | 612...630 | - |
| TLHR5200 | convex | 612...625 | - |
| TLDR5400 | convex | 648 | - |
| TLDR6400-CSZ | convex | 648 | - |
| TLHK5100 | convex | 626...639 | - |
| TLDR5800 | convex | 648 | - |
| TLHK5800 | convex | 630 | - |
| TLCS5100 | convex | 626...638 | - |
| TLCR5100 | convex | 611...622 | - |
| VLCS5130 | convex | 620...630 | - |
| TLCR5800 | convex | 611...622 | - |
| VLCS5830 | convex | 620...630 | - |
| TLLG5420 | convex | 562...575 | - |
| TLHG5420 | convex | 562...575 | - |
| TLHG5420-ASZ | convex | 562...575 | - |
| TLHG5420-KSZ | convex | 562...575 | - |
| TLHG6420 | convex | 562...575 | - |
| TLHG6420-ASZ | convex | 562...575 | - |
| TLHG6420-CSZ | convex | 562...575 | - |
| TLCYG5100 | convex | 565...576 | - |
| TLHY5400 | convex | 581...594 | - |
| TLHY5400-AS12Z | convex | 581...594 | - |
| TLHY6400 | convex | 581...594 | - |
| TLHY5401 | convex | 581...594 | - |
| TLHY5405 | convex | 581...594 | - |
| TLHY6405 | convex | 581...594 | - |
| TLHE5800 | convex | 581...594 | - |
| TLCY5200 | convex | 585...597 | - |
| TLCY6800 | convex | 585...597 | - |
| TLCY5800 | convex | 585...597 | - |
