Limit switch; HIGHLY ELECTRIC
| Manufacturer | HIGHLY ELECTRIC |
| Type of sensor | limit switch |
| Body material | plastic |
| Body dimensions | 53.9x30.8x30.6mm |
| Contact current max. | 5A |
| Switched voltage | max. 240V AC |
| Switched voltage | max. 240V DC |
| AC load rating @R* | 1.5A / 240V AC |
| DC load rating @R* | 0.27A / 240V DC |
| Switching frequency max | 1.6Hz |
| Operating temperature | -25...80°C |
| IP rating | IP67 |
| Number of mounting holes | 2 |
| Mounting holes pitch | 20...22mm |
* at resistive load

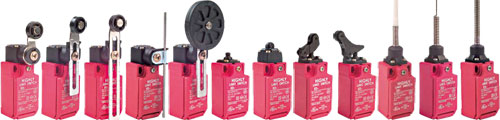

| Symbol | Kind of actuator |
|---|---|
| ED-1-1-20 | lever R 26mm, plastic roller Ø17,5mm |
| ED-1-1-21 | adjustable lever R 20-65mm, plastic roller Ø17,5mm |
| ED-1-1-22 | adjustable lever R 20-95mm, plastic roller Ø17,5mm |
| ED-1-3-24 | plastic plunger on spring loaded element, total length 121,8mm |
| ED-1-3-241 | plunger on spring loaded element, total length 116,8mm |
| ED-1-3-242 | spring, total length 116,8mm |
| ED-4-3-242 | spring, total length 116,8mm |
| ED-1-1-25 | adjustable plunger, length R 92-136mm |
| ED-1-1-27 | adjustable lever R 31-65mm, rubber rollerØ50mm |
| ED-1-1-31 | plunger |
| ED-1-1-32 | plastic roller Ø9,3mm |
| ED-1-1-62 | lever R 20mm, plastic roller Ø12mm |
| ED-1-1-63 | lever R 21,5mm with plastic roller, making only in one direction |
| ED-1-2-22 | adjustable lever R 20-95mm, plastic roller Ø17,5mm |
| Symbol | Output configuration | Connection | Features |
|---|---|---|---|
| ED-1-1-20 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-21 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-22 | NO + NC | PG13,5 | slow action contacts |
| ED-1-3-24 | NO + NC | PG13,5 | snap action contacts |
| ED-1-3-241 | NO + NC | PG13,5 | snap action contacts |
| ED-1-3-242 | NO + NC | PG13,5 | snap action contacts |
| ED-4-3-242 | NO + NC | PG11 | snap action contacts |
| ED-1-1-25 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-27 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-31 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-32 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-62 | NO + NC | PG13,5 | slow action contacts |
| ED-1-1-63 | NO + NC | PG13,5 | slow action contacts |
| ED-1-2-22 | NC x2 | PG13,5 | - |
