Limit switches, FL series

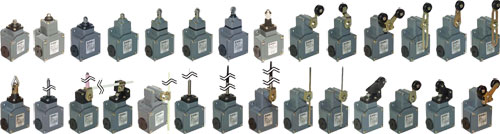

Limit switches, FL series, FL501, FL502, FL504, FL505, FL508, FL510, FL511, FL515, FL516, FL518 |EN|
Type of sensorlimit switch
Body materialmetal
Body dimensions57x56x33mm
Output configurationNO + NC
Contact current max.10A
Switched voltagemax. 500V AC
Switched voltagemax. 250V DC
AC load rating @R*6A / 250V AC
DC load rating @R*6A / 24V DC
Mechanical durability20000000 cycles
ConnectionPG13,5
Operating temperature-25...80°C
IP ratingIP67
Featuressnap action contacts
Number of mounting holes2
Mounting holes pitch40mm
* at resistive load
Symbol Kind of actuator
FL501 pin plunger Ø10mm
FL502 plastic roller Ø20mm
FL504 adjustable fiber glass rod, max length 187mm
FL505 plastic roller Ø20mm
FL508 pin plunger Ø10mm
FL510 rubber seal, pin plunger Ø10mm
FL511 pin plunger Ø10mm
FL515 rubber seal, steel roller Ø13mm
FL516 steel roller Ø13mm
FL518 stainless steel sphere Ø8mm
FL519 stainless steel sphere Ø12,7mm
FL520 rubber seal, spring, total length 101,5mm
FL521 rubber seal, plunger on spring loaded element, total length 116,5mm
FL525 rubber seal, spring, total length 104,5mm
FL531 lever R 40mm, plastic roller Ø20mm
FL532 adjustable plunger, length R 19-116mm
FL533 adjustable plunger, length R 19-116mm
FL534 plunger on spring loaded element R 106mm
FL535 adjustable lever R 34-93mm, plastic roller Ø20mm
FL538 without lever
FL541 lever R 40mm, plastic roller Ø20mm, double
FL542 lever R 40mm, plastic roller Ø20mm, double
FL551 lever R 40mm, plastic roller Ø20mm
FL552 lever R 49mm, plastic roller Ø20mm
FL553-E11V9 porcelain roller Ø9x57mm R 80mm
FL556 adjustable lever R 34-93mm, plastic roller Ø20mm
FL557 lever R 43mm, plastic roller Ø20mm
