Limit switches, FX series

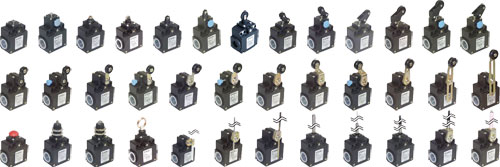

Limit switches, FX series, FX501, FX502, FX505, FX507, FX508, FX512, FX513, FX514, FX515 |EN|
Type of sensorlimit switch
Body materialplastic
Body dimensions56x58x31.7mm
Output configurationNO + NC
Contact current max.10A
Switched voltagemax. 500V AC
Switched voltagemax. 250V DC
AC load rating @R*6A / 250V AC
DC load rating @R*6A / 24V DC
Mechanical durability20000000 cycles
ConnectionPG13,5
Operating temperature-25...80°C
IP ratingIP67
Number of mounting holes4
Mounting holes pitch20...22mm, 40...42mm
* at resistive load
Symbol Kind of actuator Features
FX501 pin plunger Ø8mm snap action contacts
FX502 plastic roller Ø14mm snap action contacts
FX505 plastic roller Ø14mm snap action contacts
FX507 plastic roller Ø22mm snap action contacts
FX508 rubber seal, pin plunger Ø10mm snap action contacts
FX512 pin plunger Ø8mm and additional fixation snap action contacts
FX513 plunger with metal roller Ø12mm snap action contacts
FX514 mushroom head plunger snap action contacts
FX515 plastic roller Ø11mm snap action contacts
FX515-1 steel roller Ø12mm snap action contacts
FX516 plastic roller Ø20mm snap action contacts
FX520 rubber seal, spring, total length 101,5mm snap action contacts
FX521 plunger on spring loaded element, total length 116,5mm snap action contacts
FX525 rubber seal, spring, total length 104,5mm snap action contacts
FX530 lever R 35mm, plastic roller Ø18mm snap action contacts
FX531 lever R 35mm, plastic roller Ø18mm snap action contacts
FX533 adjustable plunger, length R 19-116mm snap action contacts
FX534 plunger on spring loaded element R 106mm snap action contacts
FX550 adjustable plunger, length R 19-116mm snap action contacts
FX551 lever R 40mm, plastic roller Ø20mm snap action contacts
FX552 lever R 49mm, plastic roller Ø20mm snap action contacts
FX553-E0V9 porcelain roller Ø9x57mm R 80mm snap action contacts
FX554 lever R 40mm, plastic roller Ø20mm snap action contacts
FX555 adjustable lever R 34-93mm, plastic roller Ø20mm snap action contacts
FX556 adjustable lever R 34-93mm, plastic roller Ø20mm snap action contacts
FX557 lever R 43mm, plastic roller Ø20mm snap action contacts
FX569 adjustable fiber glass rod, R 19- 189mm snap action contacts
FX576 ring snap action contacts
FX601-W3 pin plunger Ø8mm, with reset slow action contacts
FX602-W3 plastic roller Ø14mm, with reset slow action contacts
FX605-W3 plastic roller Ø14mm, with reset slow action contacts
FX607-W3 plastic roller Ø20mm, with reset slow action contacts
FX615-W3 plastic roller Ø11mm, with reset slow action contacts
FX630-W3 lever R 40mm, plastic roller Ø18mm, with reset slow action contacts
FX651-W3 lever R 49mm, plastic roller Ø20mm, with reset slow action contacts
FX654-W3 lever R 43mm, plastic roller Ø20mm, with reset slow action contacts
FX693 - slow action contacts
