Limit switches, PDM1 series

Limit switches, PDM1 series, PDM1F11PZ11, PDM1F12PZ11, PDM1F41PZ11, PDM1F42PZ11, PDM1F45PZ11 |EN|
Type of sensorlimit switch
Body materialmetal
Body dimensions54.5x59x32mm
Output configurationNO + NC
Contact current max.10A
Switched voltagemax. 240V AC
Switched voltagemax. 250V DC
AC load rating @R*3A / 240V AC
DC load rating @R*2.8A / 24V DC
Switching frequency max1Hz
ConnectionPG13,5
Operating temperature-25...70°C
IP ratingIP65
Featuressnap action contacts
Number of mounting holes4
Mounting holes pitch20...22mm, 40...42mm
* at resistive load

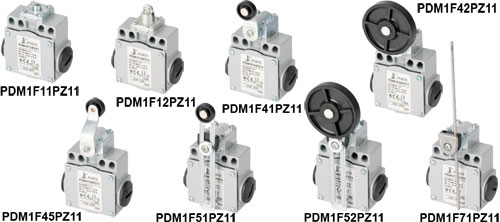

Symbol Kind of actuator
PDM1F11PZ11 pin plunger Ø8mm
PDM1F12PZ11 steel roller Ø11mm
PDM1F41PZ11 lever R 26,5mm, plastic roller Ø18mm
PDM1F42PZ11 lever R 26,5mm, rubber roller Ø50mm
PDM1F45PZ11 lever R 34,5mm, plastic roller Ø18mm
PDM1F51PZ11 adjustable lever R 45,5-117,5mm, plastic roller Ø18mm
PDM1F52PZ11 adjustable lever R 72,5-131mm, rubber rollerØ50mm
PDM1F71PZ11 adjustable plunger, max length 177,5mm
PDM1R11PZ11 pin plunger Ø8mm, with reset
PDM1R31PZ11 plastic roller Ø12,5mm, with reset
PDM1R38PZ11 plastic roller Ø22mm, with reset
PDM1R41PZ11 lever R 26,5mm, plastic roller Ø18mm, with reset
