Limit switches, WL series
| Type of sensor | limit switch |
| Body material | metal |
| Body dimensions | 72.3x40x41.5mm |
| Output configuration | NO + NC |
| Contact current max. | 10A |
| Switched voltage | max. 250V AC |
| Switched voltage | max. 250V DC |
| AC load rating @R* | 10A / 125V AC |
| DC load rating @R* | 0.4A / 250V DC |
| Connection | M20 |
| Operating temperature | -25...70°C |
| IP rating | IP64 |
| Dimensions | Fig. 1. |
| Number of mounting holes | 4 |
| Mounting holes pitch | 30.2/58.7mm |
* at resistive load

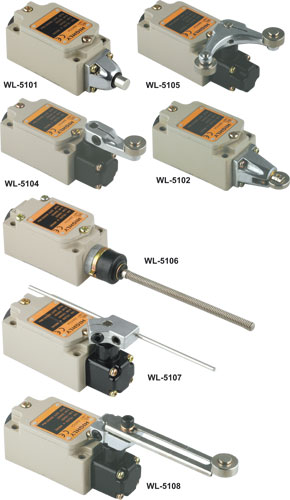

| Symbol | Kind of actuator |
|---|---|
| WL-5101 | pin plunger Ø9mm |
| WL-5102 | metal roller Ø17mm |
| WL-5104 | lever R 38mm, metal roller Ø17,5mm |
| WL-5108 | adjustable lever R 90mm, metal roller Ø17,5mm |
| WL-5106 | spring, total length 110mm |
| WL-5107 | adjustable plunger, max length 141mm |
| WL-5105 | lever R 38mm, metal roller Ø17,5mm, double |
