Linx MCX connectors
| Type of connector | MCX |
| Contact plating | gold-plated |
| Zwave | 50Ω |
| Insulation | PTFE |
| Manufacturer | LINX TECHNOLOGIES / TE Connectivity |
| Symbol | Connector | Kind | Mech. mounting | Electr. mounting | Orientation | Type | Cable | Mounting plate thickness |
|---|---|---|---|---|---|---|---|---|
| [mm] | ||||||||
| CONMCX001 | socket | female | on PCBs | THT | straight | - | - | - |
| CONMCX001-SMD | socket | female | on PCBs | SMT | vertical | - | - | - |
| CONMCX002 | socket | female | on PCBs | THT | angled 90° | - | - | - |

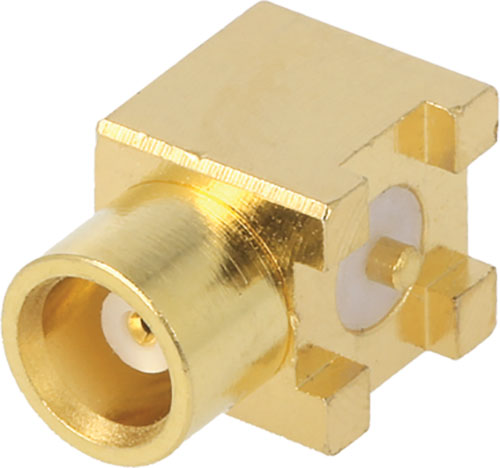

| CONMCX002-SMD | socket | female | on PCBs | SMT | horizontal | - | - | - |
| CONMCX003.031 | socket | female | on PCBs | - | - | card edge | - | 0.785 |
| CONMCX003.031-L | socket | female | on PCBs | - | - | card edge; with long thread | - | 0.785 |
| CONMCX003.062 | socket | female | on PCBs | - | - | card edge | - | 1.57 |
| CONMCX003.062-L | socket | female | on PCBs | - | - | card edge; with long thread | - | 1.57 |
| CONMCX004 | socket | female | for panel mounting, screwed | soldering | straight | - | - | - |
| CONMCX005 | plug | female | for panel mounting, for cable, screwed | soldering, crimped | straight | - | RG174 | - |
| CONMCX005-R178 | plug | female | for panel mounting, for cable, screwed | soldering, crimped | straight | - | RG178(A,B) | - |
| CONMCX007 | plug | male | for cable | soldering, crimped | straight | - | RG174 | - |
| CONMCX007-R178 | plug | male | for cable | soldering, crimped | straight | - | RG178(A,B) | - |
| CONMCX011 | plug | female | for cable | soldering, crimped | straight | - | RG174 | - |
| CONMCX011-R178 | plug | female | for cable | soldering, crimped | straight | - | RG178(A,B) | - |
| CONMCX012 | plug | male | for cable | soldering, crimped | angled 90° | - | RG174 | - |
| CONMCX012-R178 | plug | male | for cable | soldering, crimped | angled 90° | - | RG178(A,B) | - |
