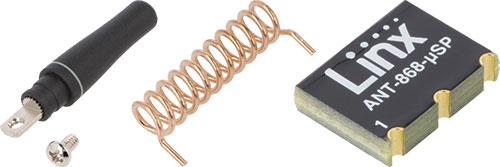

Linx Technologies RF Antennas
| Manufacturer | LINX TECHNOLOGIES / TE Connectivity |
| Accessories | antenna |
| Antenna | RF |
| Impedance | 50Ω |
| Symbol | Polarisation | Gain | Frequency | Kind of connector | Standing wave-ratio | Dimensions (a x b x c) | Operating temp. | Bandwidth |
|---|---|---|---|---|---|---|---|---|
| [dBi] | [MHz] | [mm] | [°C] | [MHz] | ||||
| ANT-868-CHP-T | linear | 0.5 | 868 | - | 2 | 16x3x1.7 | -40...85 | 10 |
| ANT-868-CW-HWR-SMA | - | 2.3 | 853...883 | male; SMA | 2 | - | -30...80 | 30 |
| ANT-868-CW-RCS-SMA | - | 3.6 | 850...880 | male; SMA | 2 | - | -20...85 | - |
| ANT-868-CW-RH-SMA | - | 1.5 | 855...880 | male; SMA | 1.9 | - | -40...90 | 25 |
| ANT-916-CW-HWR-SMA | - | 1.2 | 900...930 | male; SMA | 2 | 8.2x142 | -30...80 | 30 |
| ANT-916-JJB-HT-T | - | -12.3 | 902...928 | - | 2 | 7.1x12.2 | -40...90 | - |
| ANT-418-CW-QW | - | 2.9 | 380...450 | RP-SMA | - | - | -40...90 | - |
| ANT-418-CW-QW-SMA | - | 2.9 | 380...450 | male; SMA | - | - | -40...90 | - |
| ANT-418-PW-LP | - | -1 | 418 | - | - | - | -20...85 | 14 |
| ANT-433-PW-LP | - | -1.9 | 433 | - | - | - | -20...85 | 12 |
| ANT-433-PW-RA | - | 0.7 | 413...443 | - | - | - | -20...60 | - |
| ANT-433-SP | - | -6.4 | 429...437 | - | - | 27.94x13.7x1.5 | -40...130 | 8 |
| ANT-490-CW-QW-SMA | - | 1.3 | 470...510 | male; SMA | - | - | -40...90 | - |
| ANT-490-PW-QW-UFL | linear | 1.3 | 470...510 | U.FL | - | - | -40...90 | - |
| ANT-868-PW-QW-UFL | - | 1.6 | 750...950 | U.FL | - | - | -40...90 | - |
| ANT-868-USP-T | - | 0.2 | 859...877 | - | - | 12.7x9.14x2.54 | -40...130 | 18 |
| ANT-916-JJB-ST | - | -10.2 | 901...931 | - | - | - | -40...90 | - |
| ANT-916-SP | - | 1.4 | 900...930 | - | - | 27.94x13.7x1.5 | -40...130 | 30 |
| ANT-916-CW-RH | - | -1.3 | 900...935 | male; RP-SMA | - | - | -40...90 | 30 |
| Symbol: (ANT-868-CHP-T, ANT-868-USP-T, ANT-433-SP, ANT-916-SP) | |
|---|---|
| Mounting | SMD |
| Symbol: (ANT-868-CW-HWR-SMA, ANT-916-CW-HWR-SMA, ANT-418-CW-QW, ANT-418-CW-QW-SMA) | |
| Mounting | angular, twist-on, vertical |
| Symbol: (ANT-868-CW-RCS-SMA) | |
| Mounting | angular, twist-on |
| Symbol: (ANT-868-CW-RH-SMA, ANT-490-CW-QW-SMA) | |
| Mounting | twist-on, vertical |
| Symbol: (ANT-418-PW-LP, ANT-433-PW-LP) | |
| Mounting | screw |
| Symbol: (ANT-433-PW-RA) | |
| Mounting | angular, vertical, screw |
| Symbol: (ANT-916-JJB-ST) | |
| Mounting | soldered |
| Symbol: (ANT-916-CW-RH) | |
| Mounting | twist-on, vertical |
| Length | 51mm |
