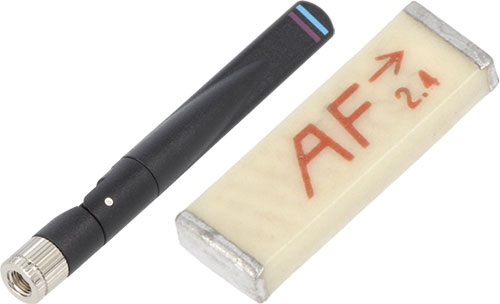

Linx Technologies WiFi/Bluetooth Antennas
| Manufacturer | LINX TECHNOLOGIES / TE Connectivity |
| Acces. for communic. modules | antenna |
| Symbol | Gain | Frequency | Kind of connector | Mounting | Polarisation | Dim. (a x b x c) |
|---|---|---|---|---|---|---|
| [Hz] | [mm] | |||||
| ANT-2.45-CHP-T | 0.5dBi | 2.4G...2.5G | - | SMD | linear | 6.5x2.2x1 |
| ANT-2.4-CW-RAH-RPS | 1.6dBi | 2.4G...2.5G | RP-SMA | twist-on | - | - |
| ANT-2.4-WRT-UFL | 3.5dBi | 2.4G...2.55G | U.FL | twist-on | - | - |
| ANT-DB1-RAF-RPS | 2.5dBi | 2.4G...2.485G, 5.15G...5.85G | RP-SMA | twist-on | - | - |
| ANT-2.4-JJB-RA | 3.3dBi | 2390M...2480M | - | - | - | - |
| ANT-2.4-LCW-RPS | 2.8dBi | 2.4G...2.5G | RP-SMA | twist-on | - | - |
| ANT-2.4-LCW-SMA | 2.8dBi | 2.4G...2.5G | SMA | twist-on | - | - |
| ANT-2.4-USP-T | 3.8dBi | 2.37G...2.54G | - | SMD | - | 12.7x9.14x1.57 |
| ANT-DB1-LCD-SMA | [email protected], [email protected], [email protected] | 2.4G...2.5G, 5.125G...5.725G, 5.725G...5.875G | SMA | - | linear | - |
| ANT-DB1-LPD-125 | [email protected], [email protected] | 2.4G...2.485G, 5.15G...5.85G | U.FL | push-in | linear | - |
| ANT-DB1-NSP250-T | [email protected], [email protected], [email protected] | 2.4G...2.5G, 5.15G...5.725G, 5.725G...5.875G | - | SMD | linear | 9.6x8.4x1.1 |
| ANT-DB1-RAF-SMA | [email protected], [email protected] | 2.4G...2.485G, 5.15G...5.85G | SMA | twist-on | - | - |
| ANT-2.4-ID2000-RPS | 3dBi | 2.35G...2.6G | RP-SMA | - | - | - |
| ANT-2.4-ID2000-SMA | 3dBi | 2.35G...2.6G | SMA | - | - | - |
| Symbol: (ANT-2.45-CHP-T) | |
|---|---|
| Antenna | Bluetooth, WiFi, ZigBee |
| Operating temperature | -40...85°C |
| Symbol: (ANT-2.4-CW-RAH-RPS, ANT-2.4-WRT-UFL, ANT-2.4-JJB-RA) | |
| Antenna | Bluetooth, WiFi, ZigBee |
| Operating temperature | -40...90°C |
| Symbol: (ANT-DB1-RAF-RPS, ANT-DB1-RAF-SMA, ANT-DB1-LPD-125, ANT-2.4-LCW-RPS, ANT-2.4-LCW-SMA, ANT-2.4-ID2000-RPS, ANT-2.4-ID2000-SMA) | |
| Antenna | Bluetooth, WiFi, ZigBee |
| Operating temperature | -40...80°C |
| Symbol: (ANT-2.4-USP-T) | |
| Antenna | Bluetooth, WiFi, ZigBee |
| Operating temperature | -40...130°C |
| Symbol: (ANT-DB1-LCD-SMA) | |
| Antenna | Bluetooth, U-NII, WiFi, ZigBee |
| Operating temperature | -40...80°C |
| Symbol: (ANT-DB1-NSP250-T) | |
| Antenna | Bluetooth, U-NII, WiFi, ZigBee |
| Operating temperature | -40...130°C |
