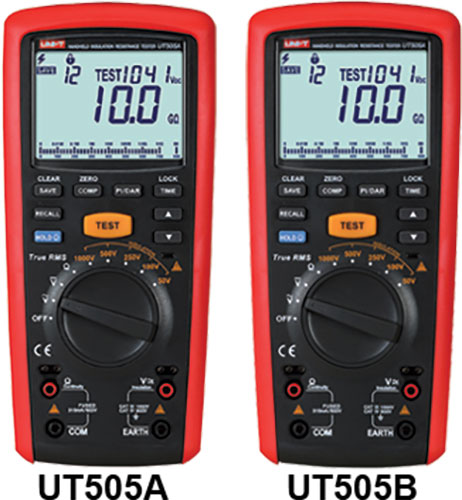

Meter: insulation resistance; UNI-T
| Manufacturer | UNI-T |
| Type of meter | insulation resistance |
| Measurement | AC voltage, DC voltage, insulation resistance |
| Display | LCD |
| Display parameters | (6000) |
| Bargraph | yes |
| Illumination | yes |
| True effective value measurement | True RMS |
| DC voltage measuring accuracy | ±(2% + 3 digit) |
| Test voltage | 50V/100V/250V/500V/1kV |
| Measurement memory | 99 |
| Battery/ rechargeable battery | battery R6 AA 1,5V x6 |
| Power supply | battery R6 AA 1,5V x6 |
| Body dimensions | 103x225x59mm |
| Symbol | UT505A | UT505B |
|---|---|---|
| DC voltage measuring range [V] | ||
| - -600...600 | x | |
| - 600 | x | |
| AC voltage measuring range [V] | ||
| - 0...600 | x | |
| - 600 | x | |
| Insulation resistance measuring ranges [Ω] | ||
| - 0.01M...50M/2000M | x | |
| - 10k...50M/1G/50G/200G | x | |
| - 100M/200M/500M/10G/20G | x | x |
| Continuity test [Ω] | ||
| - 10m...100 | x | |
| Continuity test | ||
| - acoustic indication | x | |
| Frequency measuring range [Hz] | ||
| - 45...1000 | x | |
| Resistance measuring range [Ω] | ||
| - 1...10M | x | |
| Capacitance measuring range [F] | ||
| - 100p...500µ | x | |
| Frequency measuring accuracy | ||
| - ±(2%+3 digit) | x | |
| Capacitance measuring accuracy | ||
| - ±(5%+ 5 digit) | x | |
| AC voltage measuring accuracy | ||
| - ±(1.5% + 5 digit) | x | |
| - ±(2% + 3 digit) | x | |
| Resistance measuring accuracy | ||
| - ±(3%+3 digit) | x |
Features:
- autoranging
- automatic circuit discharging after insulation resistance measurement
- automatic power-off
- HOLD function
- low battery indicator
- polarization index (PI) and dielelectric absorption ratio (DAR) (UT505B)
Equipment:
- crocodile clips
- case
- test leads
- test probes
