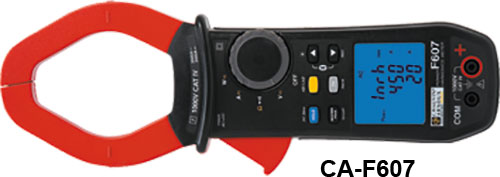

Meter: multifunction; digital; CHAUVIN ARNOUX
| Manufacturer | CHAUVIN ARNOUX |
| Type of meter | multifunction |
| Display | LCD |
| Illumination | yes |
| Frequency measuring range | 5...20kHz |
| AC current measuring accuracy | ±(1% + 3 digit) |
| AC voltage measuring accuracy | ±(1% + 3 digit) |
| DC voltage measuring accuracy | ±(1% + 3 digit) |
| Continuity test | acoustic indication |
Display parameters:
- (10000) (CA-F40xx, CA-F60x)
- (5999) (CA-F20x)
Max. diameter of measured cable:
- 34mm (CA-F20x)
- 48mm (CA-F40xx)
- 60mm (CA-F60x)
| Symbol | CA-F201 | CA-F203 | CA-F205 | CA-F401 | CA-F402 | CA-F404 | CA-F404T | CA-F406 | CA-F407 | CA-F604 | CA-F606 | CA-F607 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC voltage measuring range [V] | ||||||||||||
| - 15m...1.2k | x | |||||||||||
| - 150m...1k | x | x | x | x | x | x | ||||||
| - 150m...1.2k | x | x | x | x | x | |||||||
| DC current measuring range [A] | ||||||||||||
| - 150m...900 | x | x | ||||||||||
| - 150m...1.5k | x | |||||||||||
| - 150m...3k | x | |||||||||||
| - 250m...1.5k | x | x | x | |||||||||
| - 250m...3k | x | x | ||||||||||
| AC current measuring range [A] | ||||||||||||
| - 150m...600 | x | x | x | |||||||||
| - 150m...1k | x | x | ||||||||||
| - 150m...2k | x | |||||||||||
| - 250m...1k | x | x | x | x | ||||||||
| - 250m...2k | x | x | ||||||||||
| Resistance measuring range [kΩ] | ||||||||||||
| - 0.1...59.99 | x | x | x | |||||||||
| - 0.1...99.99 | x | x | x | x | x | x | x | x | x | |||
| Temp. range [°C] | ||||||||||||
| - -60...1000 | x | x | x | x | x | x | ||||||
| True effective value measurement | ||||||||||||
| - True RMS | x | x | x | x | x | x | x | x | x | x | x | x |
| Test | ||||||||||||
| - diodes | x | x | x | x | x | x | x | x | x | x | ||
| Conform to the norm | ||||||||||||
| - CAT III 1000V | x | x | x | |||||||||
| - CAT III 1500V | x | x | x | x | x | x | ||||||
| - CAT IV 1000V | x | x | x | x | x | x | x | x | x | |||
| - CAT IV 600V | x | x | x | |||||||||
| - EN 61010 | x | x | x | x | x | x | x | x | x | x | x | x |
| - EN 61243-3:2010 | x | x | x | x | x | x | ||||||
| Power supply | ||||||||||||
| - battery 6LF22 9V x1 | x | x | x | |||||||||
| - battery LR6 AA 1,5V x4 | x | x | x | x | x | x | x | x | x | |||
| Dimensions [mm] | 78x222x42 | 78x222x42 | 78x222x42 | 92x272x41 | 92x272x41 | 92x272x41 | 92x272x41 | 92x272x41 | 92x272x41 | 111x296x41 | 111x296x41 | 111x296x41 |
| Software | ||||||||||||
| - included | x | x | ||||||||||
| Battery/ rechargeable battery | ||||||||||||
| - battery 6LF22 9V x1 | x | x | x | |||||||||
| - battery LR6 AA 1,5V x4 | x | x | x | x | x | x | x | x | x |
Measuring instrument features:
- harmonics analyser (CA-F205, CA-F407, CA-F607)
- automatic power-off
- HOLD function
- MIN/MAX function
- PEAK function (CA-F205, CA-F406, CA-F407, CA-F606, CA-F607)
- REL function (CA-F203, CA-F205, CA-F406, CA-F604, CA-F606)
- True InRush function
- possibility of connecting environmental conditions probes ended with a double banana plug (CA-F203, CA-F404, CA-F404T, CA-F604)
- indicates phase sequence (CA-F205)
- low battery indicator
- selection of AC or AC+DC measurement (CA-F205, CA-F406, CA-F407, CA-F606, CA-F607)
| Symbol | Frequency measuring accuracy | Resistance measuring accuracy | Kind of meter | Product description | Measurement | DC current measuring accuracy | Temperature measurement accuracy |
|---|---|---|---|---|---|---|---|
| CA-F201 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC pincers type | Meter:multifunction;digital,AC pincers type;LCD;(5999) | continuity, frequency, AC voltage, DC voltage, AC current, inrush current, resistance, temperature | - | ±(1% + 3 digit) |
| CA-F203 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:34mm | frequency, AC voltage, DC voltage, AC current, DC current, inrush current, resistance, temperature | ±(1% + 3 digit) | ±(1% + 3 digit) |
| CA-F205 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:34mm | frequency, harmonics, phase sequence, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F401 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC pincers type | Meter:multifunction;digital,AC pincers type;LCD;(10000) | continuity, frequency, AC voltage, DC voltage, AC current, inrush current, resistance, temperature | - | ±(1% + 3 digit) |
| CA-F402 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC pincers type | Meter:multifunction;digital,AC pincers type;LCD;(10000) | continuity, frequency, harmonics, phase sequence, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F404 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:48mm | continuity, frequency, harmonics, phase sequence, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F404T | - | - | digital, AC/DC pincers type | Meter:multifunction;VAC accuracy:±(1%+3digit);VAC:15mV÷1.2kV | continuity, frequency, AC voltage, DC voltage, AC current, DC current, resistance, temperature | ±(1% + 3 digit) | - |
| CA-F406 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:48mm | continuity, frequency, harmonics, phase sequence, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F407 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:48mm | continuity, frequency, harmonics, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F604 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:60mm | continuity, frequency, harmonics, phase sequence, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F606 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:60mm | continuity, frequency, harmonics, phase sequence, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
| CA-F607 | ±(0.4%+1 digit) | ±(1%+5 digit) | digital, AC/DC pincers type | Meter:multifunction;digital,AC/DC pincers type;Øcable:60mm | continuity, frequency, harmonics, reactive power, active power, apparent power, AC voltage, DC voltage, AC current, DC current, inrush current, resistance | ±(1% + 3 digit) | - |
