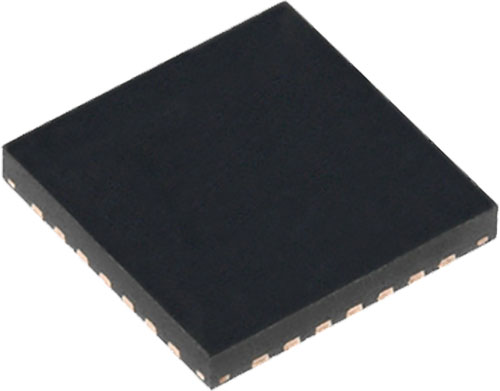

MICROCHIP TECHNOLOGY Digitally-Enhanced Power Analog integrated circuits
| Manufacturer | MICROCHIP TECHNOLOGY |
| IC | driver |
| Kind of ciruit | AC/DC switcher, DC/DC switcher, DEPA, PWM controller |
| Mounting | SMD |
| Operating temperature | -40...125°C |
| Application | automotive industry |
| Symbol | Topology | Interface | I/O | Iout max | Usup | Frequency | Clock frequency | Case |
|---|---|---|---|---|---|---|---|---|
| [A] | [V] | [kHz] | [MHz] | |||||
| MCP19110-E/MJ | buck | I2C | 11 | 4 | 4.5...32 | 100...1600 | 8 | QFN24 |
| MCP19111-E/MQ | buck | I2C | 15 | 4 | 4.5...32 | 100...1600 | 8 | QFN28 |
| MCP19114-E/MJ | boost, flyback, SEPIC, Čuk | I2C | 9 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN24 |
| MCP19116-E/MJ | boost, flyback, SEPIC, Čuk | AUSART; I2C | 8 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN24 |
| MCP19117-E/MQ | boost, flyback, SEPIC, Čuk | AUSART; I2C | 12 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN28 |
| MCP19118-E/MJ | buck | I2C | 11 | 4 | 4.5...40 | 100...1600 | 8 | QFN24 |
| MCP19119-E/MQ | buck | I2C | 15 | 4 | 4.5...40 | 100...1600 | 8 | QFN28 |
| MCP19124-E/MJ | boost, flyback, SEPIC, Čuk | I2C | 9 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN24 |
| MCP19124T-E/MJ | boost, flyback, SEPIC, Čuk | I2C | 9 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN24 |
| MCP19125-E/MQ | boost, flyback, SEPIC, Čuk | I2C | 13 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN28 |
| MCP19125T-E/MQ | boost, flyback, SEPIC, Čuk | I2C | 13 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN28 |
| MCP19214-E/MQ | boost, flyback, SEPIC, Čuk | I2C | 10 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN28 |
| MCP19215-E/S8 | boost, flyback, SEPIC, Čuk | AUSART; I2C | 13 | 1 | 4.5...42 | 31.25...2000 | 8 | QFN32 |
| Symbol | 8bit timers | 16bit timers | A/D 10bit |
|---|---|---|---|
| MCP19110-E/MJ | 2 | 1 | 1 |
| MCP19111-E/MQ | 2 | 1 | 1 |
| MCP19114-E/MJ | 2 | 1 | 1 |
| MCP19116-E/MJ | 2 | 1 | 1 |
| MCP19117-E/MQ | 2 | 1 | 1 |
| MCP19118-E/MJ | 2 | 1 | 1 |
| MCP19119-E/MQ | 2 | 1 | 1 |
| MCP19124-E/MJ | 2 | 1 | 1 |
| MCP19124T-E/MJ | 2 | 1 | 1 |
| MCP19125-E/MQ | 2 | 1 | 1 |
| MCP19125T-E/MQ | 2 | 1 | 1 |
| MCP19214-E/MQ | 2 | 1 | 1 |
| MCP19215-E/S8 | 2 | 1 | 1 |
| Symbol | Protection |
|---|---|
| MCP19110-E/MJ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19111-E/MQ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19114-E/MJ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19116-E/MJ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19117-E/MQ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19118-E/MJ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19119-E/MQ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19124-E/MJ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19124T-E/MJ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19125-E/MQ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19125T-E/MQ | undervoltage UVP, anti-overload OPP, anti-overvoltage OVP, overheating OTP |
| MCP19214-E/MQ | undervoltage UVP, anti-overvoltage OVP, overheating OTP |
| MCP19215-E/S8 | undervoltage UVP, anti-overvoltage OVP, overheating OTP |
| Features | Brown Out Reset (BOR); 8bit PIC microcontroller core; watchdog |
| Symbol | Features | Kind of package | Memory | Output current | Number of channels | Manufacturer standard package |
|---|---|---|---|---|---|---|
| [B] | [A] | [pcs.] | ||||
| MCP19110-E/MJ | dead time; charge pump; PoR; soft-start function | tube | 256 SRAM 4k FLASH | - | - | 91 |
| MCP19111-E/MQ | dead time; charge pump; PoR; soft-start function | tube | 256 SRAM 4k FLASH | 30m | - | 73 |
| MCP19114-E/MJ | dead time; charge pump; PoR; differential amplifier | tube | 256 SRAM 4k FLASH | - | 1 | 91 |
| MCP19116-E/MJ | dead time; charge pump; PoR | tube | 336 SRAM 8k FLASH | - | 1 | 91 |
| MCP19117-E/MQ | dead time; charge pump; PoR | tube | 336 SRAM 8k FLASH | 1 | 1 | 73 |
| MCP19118-E/MJ | dead time; charge pump; PoR; soft-start function | tube | 256 SRAM 4k FLASH | 25m | 1 | 91 |
| MCP19119-E/MQ | dead time; charge pump; PoR; soft-start function | tube | 256 SRAM 4k FLASH | 25m | 1 | 73 |
| MCP19124-E/MJ | dead time; charge pump; PoR; differential amplifier | tube | 256 SRAM 4k FLASH | 1 | 1 | 91 |
| MCP19124T-E/MJ | dead time; charge pump; PoR; differential amplifier | reel, tape | 256 SRAM 4k FLASH | - | 1 | 3300 |
| MCP19125-E/MQ | dead time; charge pump; PoR; differential amplifier | tube | 256 SRAM 4k FLASH | 1 | - | 73 |
| MCP19125T-E/MQ | dead time; charge pump; PoR; differential amplifier | reel, tape | 256 SRAM 4k FLASH | - | - | 3300 |
| MCP19214-E/MQ | tube | 336 SRAM 8k FLASH | - | 2 | 73 | |
| MCP19215-E/S8 | tube | 336 SRAM 8k FLASH | 35m | 2 | 73 |
