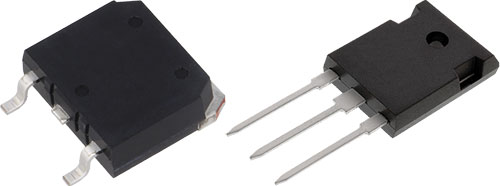

MICROCHIP TECHNOLOGY (MICROSEMI) IGBT transistors
| Transistor | IGBT |
| Manufacturer | MICROCHIP TECHNOLOGY |
| Symbol | Uce | Ic | Icm | Uge | Pd | QG | t(on) | t(off) | Case | Mounting | Package | Technology | Features | Part status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [A] | [V] | [W] | [nC] | [ns] | [ns] | |||||||
| APT20GN60SDQ2G | 600 | 24 | 60 | ±30 | 136 | 120 | 19 | 290 | D3PAK | SMD | tube | Field Stop | integrated anti-parallel diode | - |
| APT36GA60SD15 | 600 | 36 | 109 | ±30 | 290 | 102 | 29 | 262 | D3PAK | SMD | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT75GN60SDQ2G | 600 | 93 | 225 | ±30 | 536 | 485 | 95 | 485 | D3PAK | SMD | tube | Field Stop | integrated anti-parallel diode | - |
| APT80GA90S | 900 | 80 | 239 | ±30 | 625 | 200 | 49 | 320 | D3PAK | SMD | tube | POWER MOS 8®, PT | - | - |
| APT15GN120SDQ1G | 1.2k | 22 | 45 | ±30 | 195 | 90 | 19 | 355 | D3PAK | SMD | tube | Field Stop | integrated anti-parallel diode | - |
| APT25GN120SG | 1200 | 33 | 75 | ±30 | 272 | 155 | 39 | 560 | D3PAK | SMD | tube | - | - | - |
| APT35GN120SG | 1.2k | 46 | 105 | ±30 | 379 | 220 | 46 | 465 | D3PAK | SMD | tube | Field Stop | - | - |
| APT40GP60B2DQ2G | 600 | 62 | 160 | ±20 | 543 | 135 | 49 | 160 | T-Max | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT68GA60B2D40 | 600 | 68 | 202 | ±30 | 520 | 198 | 46 | 304 | T-Max | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT50GP60B2DQ2G | 600 | 72 | 190 | ±30 | 625 | 165 | 55 | 200 | T-Max | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT65GP60B2G | 600 | 96 | 250 | ±20 | 833 | 210 | 84 | 219 | T-Max | THT | tube | POWER MOS 7®, PT | - | - |
| APT80GP60B2G | 600 | 100 | 330 | ±20 | 1041 | 280 | 69 | 233 | T-Max | THT | tube | POWER MOS 7®, PT | - | - |
| APT102GA60B2 | 600 | 102 | 307 | ±30 | 780 | 294 | 64 | 389 | T-Max | THT | tube | POWER MOS 8®, PT | - | - |
| APT150GN60B2G | 600 | 123 | 450 | ±30 | 536 | 970 | 154 | 575 | T-Max | THT | tube | Field Stop | - | - |
| APT100GN60B2G | 600 | 135 | 300 | ±30 | 625 | 600 | 96 | 435 | T-Max | THT | tube | Field Stop | - | - |
| APT200GN60B2G | 600 | 158 | 600 | ±20 | 682 | 1180 | 130 | 690 | T-Max | THT | tube | Field Stop | - | - |
| APT95GR65B2 | 650 | 100 | 400 | ±30 | 892 | 312 | 105 | 336 | T-Max | THT | tube | NPT, POWER MOS 8® | - | - |
| APT40GP90B2DQ2G | 900 | 50 | 160 | ±30 | 543 | 145 | 37 | 220 | T-Max | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT64GA90B2D30 | 900 | 64 | 193 | ±30 | 500 | 162 | 44 | 352 | T-Max | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT33GF120B2RDQ2G | 1.2k | 30 | 75 | ±30 | 357 | 170 | 31 | 355 | T-Max | THT | tube | NPT | integrated anti-parallel diode | - |
| APT25GN120B2DQ2G | 1.2k | 33 | 75 | ±30 | 272 | 155 | 39 | 560 | T-Max | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT40GR120B2D30 | 1.2k | 40 | 160 | ±30 | 500 | 210 | 47 | 232 | T-Max | THT | tube | NPT, POWER MOS 8® | integrated anti-parallel diode | Not recommended for new designs |
| APT35GP120B2D2G | 1.2k | 46 | 140 | ±30 | 543 | 150 | 36 | 220 | T-Max | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT35GP120B2DQ2G | 1.2k | 46 | 140 | ±30 | 543 | 150 | 36 | 220 | T-Max | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT50GR120B2 | 1.2k | 50 | 200 | ±30 | 694 | 330 | 66 | 324 | T-Max | THT | tube | NPT, POWER MOS 8® | - | - |
| APT50GT120B2RDQ2G | 1.2k | 50 | 150 | ±30 | 625 | 340 | 77 | 303 | T-Max | THT | tube | NPT | integrated anti-parallel diode | - |
| APT50GT120B2RG | 1.2k | 50 | 150 | ±30 | 625 | 340 | 77 | 303 | T-Max | THT | tube | NPT | - | - |
| APT45GP120B2DQ2G | 1.2k | 54 | 170 | ±30 | 625 | 185 | 47 | 230 | T-Max | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT50GN120B2G | 1.2k | 66 | 150 | ±30 | 543 | 315 | 55 | 600 | T-Max | THT | tube | Field Stop | - | - |
| APT75GP120B2G | 1.2k | 91 | 300 | ±20 | 1042 | 320 | 60 | 359 | T-Max | THT | tube | POWER MOS 7®, PT | - | - |
| APT75GN120B2G | 1.2k | 99 | 225 | ±30 | 833 | 425 | 101 | 925 | T-Max | THT | tube | Field Stop | - | - |
| APT100GN120B2G | 1.2k | 100 | 300 | ±30 | 960 | 540 | 100 | 935 | T-Max | THT | tube | Field Stop | - | - |
| APT20GN60BDQ1G | 600 | 24 | 60 | ±30 | 136 | 120 | 19 | 290 | TO247-3 | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT20GN60BDQ2G | 600 | 24 | 60 | ±30 | 136 | 120 | 19 | 290 | TO247-3 | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT20GN60BG | 600 | 24 | 60 | ±30 | 136 | 120 | 19 | 290 | TO247-3 | THT | tube | Field Stop | - | - |
| APT15GP60BDQ1G | 600 | 27 | 65 | ±20 | 250 | 55 | 20 | 160 | TO247-3 | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT15GP60BG | 600 | 27 | 65 | ±20 | 250 | 55 | 20 | 157 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT36GA60B | 600 | 36 | 109 | ±30 | 290 | 102 | 29 | 262 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT36GA60BD15 | 600 | 36 | 109 | ±30 | 290 | 102 | 29 | 262 | TO247-3 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT30GN60BDQ2G | 600 | 37 | 90 | ±30 | 203 | 165 | 16 | 255 | TO247-3 | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT30GN60BG | 600 | 37 | 90 | ±30 | 203 | 165 | 26 | 255 | TO247-3 | THT | tube | Field Stop | - | - |
| APT30GP60BDQ1G | 600 | 49 | 120 | ±20 | 463 | 90 | 31 | 165 | TO247-3 | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT30GP60BG | 600 | 49 | 120 | ±30 | 463 | 90 | 31 | 164 | TO247-3 | THT | tube | POWER MOS 7® | - | - |
| APT54GA60B | 600 | 54 | 161 | ±30 | 416 | 158 | 37 | 291 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT54GA60BD30 | 600 | 54 | 161 | ±30 | 416 | 158 | 37 | 291 | TO247-3 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT40GP60BG | 600 | 62 | 160 | ±20 | 543 | 135 | 49 | 156 | TO247-3 | THT | tube | POWER MOS 7® | - | - |
| APT50GN60BDQ2G | 600 | 64 | 150 | ±30 | 366 | 325 | 45 | 400 | TO247-3 | THT | tube | - | - | - |
| APT50GN60BDQ3G | 600 | 64 | 150 | ±30 | 366 | 325 | 45 | 400 | TO247-3 | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT50GN60BG | 600 | 64 | 150 | ±30 | 366 | 325 | 45 | 400 | TO247-3 | THT | tube | - | - | - |
| APT68GA60B | 600 | 68 | 202 | ±30 | 520 | 198 | 46 | 304 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT50GP60BG | 600 | 72 | 190 | ±20 | 625 | 165 | 55 | 202 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT80GA60B | 600 | 80 | 240 | ±30 | 625 | 230 | 52 | 326 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT75GN60BDQ2G | 600 | 93 | 225 | ±30 | 536 | 485 | 95 | 485 | TO247-3 | THT | tube | Field Stop | - | - |
| APT75GN60BG | 600 | 93 | 225 | ±30 | 536 | 485 | 95 | 485 | TO247-3 | THT | tube | - | - | - |
| APT70GR65B | 650 | 65 | 260 | ±30 | 595 | 226 | 64 | 264 | TO247-3 | THT | tube | NPT, POWER MOS 8® | - | - |
| APT15GP90BDQ1G | 900 | 21 | 60 | ±30 | 250 | 60 | 23 | 170 | TO247-3 | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT27GA90BD15 | 900 | 27 | 79 | ±30 | 223 | 62 | 18 | 281 | TO247-3 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT35GA90B | 900 | 35 | 105 | ±30 | 290 | 84 | 25 | 298 | TO247-3 | THT | tube | POWER MOS 8® | - | - |
| APT35GA90BD15 | 900 | 35 | 105 | ±30 | 290 | 84 | 25 | 298 | TO247-3 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT25GP90BDQ1G | 900 | 36 | 110 | ±30 | 417 | 110 | 29 | 190 | TO247-3 | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT25GP90BG | 900 | 36 | 110 | ±20 | 417 | 110 | 29 | 190 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT43GA90B | 900 | 43 | 129 | ±30 | 337 | 116 | 28 | 246 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT43GA90BD30 | 900 | 43 | 129 | ±30 | 337 | 116 | 28 | 246 | TO247-3 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT40GP90BG | 900 | 50 | 160 | ±20 | 543 | 145 | 43 | 215 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT64GA90B | 900 | 64 | 193 | ±30 | 500 | 162 | 44 | 352 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT80GA90B | 900 | 80 | 239 | ±30 | 625 | 200 | 49 | 320 | TO247-3 | THT | tube | POWER MOS 8®, PT | - | - |
| APT15GT120BRDQ1G | 1.2k | 18 | 45 | ±30 | 250 | 105 | 21 | 137 | TO247-3 | THT | tube | NPT | integrated anti-parallel diode | Not recommended for new designs |
| APT13GP120BDQ1G | 1.2k | 20 | 50 | ±20 | 250 | 55 | 21 | 270 | TO247-3 | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT13GP120BG | 1.2k | 20 | 50 | ±30 | 250 | 55 | 21 | 270 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT15GN120BDQ1G | 1.2k | 22 | 45 | ±30 | 195 | 90 | 19 | 355 | TO247-3 | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT25GR120B | 1.2k | 25 | 100 | ±30 | 521 | 154 | 26 | 164 | TO247-3 | THT | tube | NPT, POWER MOS 8® | - | Not recommended for new designs |
| APT25GT120BRDQ2G | 1200 | 25 | 75 | ±30 | 347 | 170 | 41 | 220 | TO247-3 | THT | tube | Thunderblot IGBT® | - | - |
| APT25GT120BRG | 1200 | 25 | 75 | ±30 | 347 | 170 | 41 | 220 | TO247-3 | THT | tube | Thunderblot IGBT® | - | - |
| APT25GN120BG | 1.2k | 33 | 75 | ±30 | 272 | 155 | 39 | 560 | TO247-3 | THT | tube | Field Stop | - | - |
| APT25GP120BDQ1G | 1.2k | 33 | 90 | ±30 | 417 | 110 | 26 | 200 | TO247-3 | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT25GP120BG | 1.2k | 33 | 90 | ±20 | 417 | 110 | 26 | 197 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT33GF120BRG | 1200 | 33 | 104 | ±20 | 297 | 170 | 85 | 284 | TO247-3 | THT | tube | Fast IGBT | - | - |
| APT35GN120BG | 1.2k | 46 | 105 | ±30 | 379 | 220 | 46 | 465 | TO247-3 | THT | tube | Field Stop | - | - |
| APT35GP120BG | 1.2k | 46 | 140 | ±20 | 543 | 150 | 36 | 222 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT45GP120BG | 1.2k | 54 | 170 | ±20 | 625 | 185 | 47 | 230 | TO247-3 | THT | tube | POWER MOS 7®, PT | - | - |
| APT70GR120B2 | 1200 | 70 | 280 | ±30 | 961 | 412 | 81 | 394 | TO247-3 | THT | tube | NPT Ultra Fast IGBT | - | - |
| APT85GR120B2 | 1200 | 85 | 340 | ±30 | 962 | 490 | 113 | 445 | TO247-3 | THT | tube | NPT Ultra Fast IGBT | - | - |
| APT68GA60LD40 | 600 | 68 | 202 | ±30 | 520 | 198 | 46 | 304 | TO264 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT80GA60LD40 | 600 | 80 | 240 | ±30 | 625 | 230 | 52 | 326 | TO264 | THT | tube | POWER MOS 8® | - | - |
| APT75GN60LDQ3G | 600 | 93 | 225 | ±30 | 536 | 485 | 95 | 485 | TO264 | THT | tube | - | - | - |
| APT102GA60L | 600 | 102 | 307 | ±30 | 780 | 294 | 65 | 313 | TO264 | THT | tube | POWER MOS 8® | - | - |
| APT150GN60LDQ4G | 600 | 123 | 450 | ±30 | 536 | 970 | 154 | 575 | TO264 | THT | tube | Field Stop | integrated anti-parallel diode | - |
| APT100GN60LDQ4G | 600 | 135 | 300 | ±30 | 625 | 600 | 96 | 435 | TO264 | THT | tube | - | - | - |
| APT64GA90LD30 | 900 | 64 | 193 | ±30 | 500 | 162 | 44 | 352 | TO264 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT80GA90LD40 | 900 | 80 | 239 | ±30 | 625 | 200 | 49 | 320 | TO264 | THT | tube | POWER MOS 8®, PT | integrated anti-parallel diode | - |
| APT33GF120LRDQ2G | 1.2k | 30 | 75 | ±30 | 357 | 170 | 31 | 355 | TO264 | THT | tube | NPT | integrated anti-parallel diode | - |
| APT50GR120L | 1.2k | 50 | 200 | ±30 | 694 | 330 | 66 | 324 | TO264 | THT | tube | NPT, POWER MOS 8® | - | - |
| APT50GT120LRDQ2G | 1.2k | 50 | 150 | ±30 | 694 | 240 | 73 | 305 | TO264 | THT | tube | NPT | integrated anti-parallel diode | - |
| APT50GT120LRG | 1.2k | 50 | 150 | ±30 | 625 | 340 | 77 | 303 | TO264 | THT | tube | NPT | - | - |
| APT70GR120L | 1.2k | 70 | 280 | ±30 | 961 | 412 | 81 | 394 | TO264 | THT | tube | NPT, POWER MOS 8® | - | - |
| APT85GR120L | 1.2k | 85 | 340 | ±30 | 962 | 490 | 113 | 445 | TO264 | THT | tube | NPT, POWER MOS 8® | - | - |
| APT75GN120LG | 1.2k | 99 | 225 | ±30 | 833 | 425 | 101 | 925 | TO264 | THT | tube | Field Stop | - | - |
| APT65GP60L2DQ2G | 600 | 96 | 250 | ±30 | 833 | 210 | 85 | 220 | TO264MAX | THT | tube | POWER MOS 7®, PT | integrated anti-parallel diode | - |
| APT35GN120L2DQ2G | 1.2k | 46 | 105 | ±30 | 379 | 220 | 46 | 465 | TO264MAX | THT | tube | Field Stop | integrated anti-parallel diode | - |
