MICROCHIP TECHNOLOGY Schottky diodes
| Manufacturer | MICROCHIP TECHNOLOGY |
| Symbol | Type of diode | Kind of package | Structure | If | Ifmax | Ifsm | Urmax | Ufmax | Leakage current | Case | Mounting | Manufacturer standard package | C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [A] | [V] | [V] | [A] | [pcs.] | [pF] | |||||||
| 1N5711/TR | Schottky switching | reel, tape | single diode | 33mA | - | - | 50 | 1 | 200n | DO35 | - | - | 2 |
| 1N5711-1 | Schottky switching | - | single diode | 33mA | - | - | 50 | 1 | 200n | - | - | - | 2 |
| 1N5711-1/TR | Schottky switching | reel, tape | single diode | 33mA | - | - | 50 | 1 | 200n | DO35 | - | - | 2 |
| 1N5711E3 | Schottky switching | - | single diode | 33mA | - | - | 50 | 1 | 200n | DO35 | - | - | 2 |
| 1N5711E3/TR | Schottky switching | reel, tape | single diode | - | - | - | - | 1 | 200n | - | - | - | 2 |
| 1N5711UB | Schottky switching | - | single diode | 15A | - | - | 70 | 1 | 200n | - | SMD | - | 2 |
| 1N5711UB/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| 1N5711UBCA | Schottky switching | - | common anode | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| 1N5711UBCA/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | - |
| 1N5711UBCC | Schottky switching | - | common cathode | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| 1N5711UBD | Schottky switching | - | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| 1N5711UBD/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | - |
| 1N5711UR-1 | Schottky switching | - | single diode | 15mA | - | - | 50 | 1 | 200n | - | SMD | - | 2 |
| 1N5711UR-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| 1N5711UR-1E3 | Schottky switching | - | - | 15mA | - | - | 50 | 1 | 200n | MELF | SMD | - | 2 |
| 1N5711UR-1E3/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| 1N5712 | Schottky switching | - | single diode | 35mA | - | - | 16 | 1 | 150n | - | - | - | 2 |
| 1N5712/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| 1N5712-1 | Schottky switching | - | single diode | 35mA | - | - | 16 | 1 | 150n | - | - | - | 2 |
| 1N5712-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| 1N5712-1E3 | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| 1N5712-1E3/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| 1N5712UB | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| 1N5712UB/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| 1N5712UBCA | Schottky switching | - | - | 35mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| 1N5712UBCA/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | SMD | - | - |
| 1N5712UBCC | Schottky switching | - | common cathode | 75mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| 1N5712UBD | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| 1N5712UBD/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | SMD | - | - |
| 1N5712UR-1 | Schottky switching | - | - | 35mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| 1N5712UR-1/TR | Schottky switching | reel, tape | - | 75mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| 1N5819UR-1 | Schottky rectifying | reel, tape | single diode | 1A | - | 25 | 30 | 0.6 | - | DO213AB | SMD | - | - |
| 1N5831 | Schottky rectifying | bulk | - | - | - | 800 | - | 0.48 | 2m | - | screw type | - | - |
| 1N5834 | Schottky rectifying | bulk | - | - | - | - | - | 0.59 | 20m | DO203AB, DO5 | screw type | - | - |
| 1N6095 | Schottky rectifying | bulk | - | - | - | - | - | 0.6 | 2m | - | screw type | - | - |
| 1N6097 | Schottky rectifying | bulk | - | - | - | - | - | - | - | DO203AB, DO5 | screw type | - | - |
| 1N6391 | Schottky rectifying | bulk | cathode to stud | 25A | 25 | 600 | 45 | 0.68 | - | DO4 | screw type | - | - |
| 1N6677 | Schottky switching | - | - | - | - | - | - | 0.7 | 5µ | - | THT | - | - |
| 1N6677/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.5 | 5µ | - | - | - | 50 |
| 1N6677-1 | Schottky switching | - | - | - | - | - | - | 0.5 | 5µ | - | - | - | 50 |
| 1N6677-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.5 | 5µ | - | - | - | 50 |
| 1N6677-1E3 | Schottky switching | - | - | - | - | - | - | 0.5 | 5µ | DO35 | - | - | 50 |
| 1N6677-1E3/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.5 | 5µ | - | - | - | 50 |
| 1N6677UR-1 | Schottky switching | - | single diode | 200mA | - | 5 | 40 | 0.5 | 5µ | - | SMD | - | 50 |
| 1N6677UR-1/TR | Schottky switching | reel, tape | - | 200mA | - | - | 40 | 0.5 | 5µ | - | SMD | - | 50 |
| 1N6700 | Schottky switching | - | - | - | - | - | - | - | - | - | - | - | - |
| 1N6700/TR | Schottky switching | reel, tape | - | - | - | - | - | - | - | - | - | - | - |
| 1N6700US/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.47 | 200µ | - | SMD | - | - |
| 1N6701 | Schottky switching | - | - | - | - | - | - | - | - | - | - | - | - |
| 1N6701/TR | Schottky switching | reel, tape | - | - | - | - | - | - | - | - | - | - | - |
| 1N6701US/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.47 | 200µ | - | SMD | - | - |
| 1N6702 | Schottky switching | - | - | - | - | - | - | 0.47 | 200µ | - | THT | - | - |
| 1N6702/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.47 | 200µ | - | THT | - | - |
| 1N6702US | Schottky switching | - | - | - | - | - | - | 0.47 | 200µ | - | SMD | - | - |
| 1N6702US/TR | Schottky switching | reel, tape | - | - | - | - | - | 0.47 | 200µ | - | SMD | - | - |
| 75HQ045 | Schottky rectifying | bulk | - | - | - | 1.2k | - | 0.74 | 5m | DO203AB, DO5 | screw type | - | - |

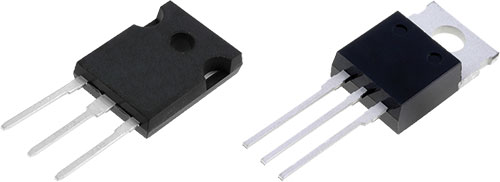

| APT100S20BG | Schottky rectifying | tube | single diode | 120A | 318 | 1k | 200 | 1.06 | 40µ | TO247-2 | THT | - | - |
| APT100S20LCTG | Schottky rectifying | tube | double, common cathode | 120A | 318 | 1k | 200 | 1.06 | 40µ | TO264 | THT | - | - |
| APT30S20BCTG | Schottky rectifying | tube | double, common cathode | 45A x2 | 121 | 320 | 200 | 0.91 | 15m | TO247-3 | THT | - | - |
| APT30S20BG | Schottky rectifying | tube | single diode | 45A | 121 | 320 | 200 | 0.91 | 15m | TO247-2 | THT | - | - |
| APT60S20B2CTG | Schottky rectifying | tube | double, common cathode | 75A x2 | 208 | 600 | 200 | 0.98 | 25m | T-Max | THT | - | - |
| APT60S20BG | Schottky rectifying | tube | single diode | 75A | 208 | 600 | 200 | 0.98 | 25m | TO247-2 | THT | - | - |
| APT60S20SG | Schottky rectifying | tube | single diode | 75A | 208 | 600 | 200 | 0.98 | 25m | D3PAK | SMD | - | - |
| CDLL5711 | Schottky switching | reel, tape | single diode | 15mA | - | - | 50 | 1 | 200n | DO213AA | SMD | - | - |
| CDLL5819 | Schottky switching | - | single diode | 1A | - | 25 | 45 | 0.49 | 5m | DO213AB | SMD | - | - |
| JAN1N5712-1 | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| JAN1N5712-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| JAN1N5712UB | Schottky switching | - | - | - | - | - | - | 1 | - | - | SMD | - | 2 |
| JAN1N5712UBCA | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JAN1N5712UBCC | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JAN1N5712UBD | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JAN1N5712UR-1 | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JAN1N5712UR-1/TR | Schottky switching | reel, tape | - | 35mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| JANHCA1N5712 | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | THT | - | 2 |
| JANS1N5712UB | Schottky switching | - | - | - | - | - | - | 1 | - | - | SMD | - | 2 |
| JANS1N5712UB/TR | Schottky switching | reel, tape | - | 75mA | - | - | 16 | 1 | - | - | SMD | - | 2 |
| JANS1N5712UBCA | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANS1N5712UBCC | Schottky switching | - | common cathode | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANS1N5712UBD | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANS1N5712UBD/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTX1N5711-1 | Schottky switching | - | single diode | 33mA | - | - | 50 | 0.41 | 200n | DO35 | - | - | 2 |
| JANTX1N5711-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | DO35 | - | - | 2 |
| JANTX1N5711UB | Schottky switching | - | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| JANTX1N5711UB/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| JANTX1N5711UBCA | Schottky switching | - | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| JANTX1N5711UBCA/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | - |
| JANTX1N5711UBCC | Schottky switching | - | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| JANTX1N5711UBD | Schottky switching | - | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| JANTX1N5711UBD/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | - |
| JANTX1N5711UR-1 | Schottky switching | - | single diode | 33mA | - | - | 50 | 1 | 200n | MiniMELF | SMD | - | 2 |
| JANTX1N5711UR-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 200n | - | SMD | - | 2 |
| JANTX1N5712-1 | Schottky switching | - | single diode | 35mA | - | - | 16 | 1 | 150n | - | - | - | 2 |
| JANTX1N5712-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| JANTX1N5712UB | Schottky switching | - | - | - | - | - | - | 1 | - | - | SMD | - | 2 |
| JANTX1N5712UBCA | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTX1N5712UBCC | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTX1N5712UBD | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTX1N5712UBD/TR | Schottky switching | reel, tape | - | 35mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| JANTX1N5712UR-1 | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTX1N5712UR-1/TR | Schottky switching | reel, tape | - | 75mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| JANTXV1N5712-1 | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | - | - | 2 |
| JANTXV1N5712-1/TR | Schottky switching | reel, tape | - | - | - | - | - | 1 | 150n | - | THT | - | 2 |
| JANTXV1N5712UB | Schottky switching | - | - | - | - | - | - | 1 | - | - | SMD | - | 2 |
| JANTXV1N5712UBCA | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTXV1N5712UBCC | Schottky switching | - | common cathode | - | - | - | - | 1 | 150n | - | SMD | - | - |
| JANTXV1N5712UBD | Schottky switching | - | - | - | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTXV1N5712UR-1 | Schottky switching | - | - | 75mA | - | - | - | 1 | 150n | - | SMD | - | 2 |
| JANTXV1N5712UR-1TR | Schottky switching | reel, tape | - | 35mA | - | - | 16 | 1 | 150n | - | SMD | - | 2 |
| SD41 | Schottky rectifying | bulk | anode to stud | 30A | 30 | 600 | 35 | 0.68 | - | DO4 | screw type | - | - |
| UPS120EE3/TR7 | Schottky rectifying | reel, tape | single diode | 1A | 2 | 50 | 20 | 0.455 | - | DO216AA | SMD | 3000 | - |
| UPS540E3/TR13 | Schottky rectifying | reel, tape | single diode | 5A | - | 100 | 40 | 0.45 | - | Powermite3 | SMD | 5000 | - |
