Microswitch SNAP ACTION; BZ; HONEYWELL
| Manufacturer | HONEYWELL |
| IP rating | IP40 |
| Body dimensions | 49.3x17.5x24.1mm |
| Operating temperature | -55...85°C |
| Manufacturer series | BZ |
| Type of switch | microswitch SNAP ACTION |
| Contacts layout | SPDT |
| Positions | 2 |
| Stabl.pos. | 1 |
| Min. insulation resistance | 100000MΩ |
| Max. contact resistance: | 15mΩ |
| Electrical life | 100000 cycles |
| Mechanical durability | 20000000 cycles |
| Symbol | AC load rating @R* | Features | Lever length | Operating Force | Leads |
|---|---|---|---|---|---|
| [mm] | [N] | ||||

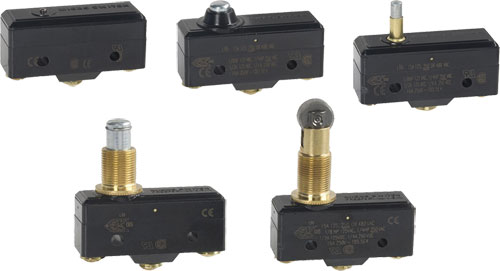

| BZ-2R-A2 | 15A / 250V AC | without lever | - | 3.61 | M4 screws |
| BZ-2RD-A2 | 15A / 250V AC | with pin | - | 3.61 | M4 screws |
| BZ-2RQ18-A2 | 15A / 250V AC | with transverse roller | - | 3.61 | M4 screws |
| BZ-2RQ1-A2 | 15A / 250V AC | with pin | - | 3.61 | M4 screws |
| BZ-2RS-A2 | 15A / 250V AC | with pin | - | 3.61 | M4 screws |
| BZ-2RW822-A2 | 15A / 250V AC | with lever (with roller) | 26.2 | 1.67 | M4 screws |
| BZ-2RW826-A2 | 15A / 250V AC | with lever (with roller) | 26.2 | 1.67 | M4 screws |
| BZ-2RW82-A2 | 15A / 250V AC | with lever (with roller) | 48.3 | 0.97 | M4 screws |
| BZ-2RW863-A2 | 15A / 250V AC | with lever | 63.5 | 0.28 | M4 screws |
| BZ-2RW822 | 15A / 250V AC | with lever (with roller) | 26.2 | 0.97 | screw |
| BZ-2RS | 15A / 250V AC | with pin | - | 3.61 | screw |
| BZ-RSX | 15A / 250V AC | without lever | - | 2.64 | screw |
| BZ-2RW84-A2 | 15A / 480V AC | with lever | - | 1 | screw |
| BZ-R | 15A / 250V AC | without lever | - | 2.5 | screw |
| BZ-2RQ66 | 15A / 600V AC | without lever | - | 0.5 | screw |
| BZ-2RW80 | 15A / 480V AC | with lever | - | 0.5 | screw |
| BZ-2RW82255-A2-S | 15A / 480V AC | with lever (with roller) | - | 0.5 | screw |
| BZ-2RW8225551-A2 | 15A / 480V AC | with lever (with roller) | - | 1.67 | screw |
| BZ-2RW82272-A2 | 1A / 125V AC | with lever (with roller) | - | 0.5 | screw |
| BZ-2RW8255-A2-S | 15A / 480V AC | with lever (with roller) | - | 0.5 | screw |
| BZ-7RW80189-A2 | 15A / 250V AC | with lever with roller simulation | - | 0.5 | screw |
| BZ-R-A2 | 15A / 250V AC | without lever | - | 0.5 | screw |
| BZ-RMX | 15A / 480V AC | with lever | - | - | screw |
| BZ-2R | 15A / 125V AC | without lever | - | 3.7 | screw |
| BZ-2R55-A2-S | 15A / 125V AC | without lever | - | 4.25 | screw |
| BZ-2RQ1 | 15A / 125V AC | with pin | - | 3.7 | screw |
| BZ-2RQ124-A2 | 15A / 125V AC | with pin | - | 3.7 | screw |
| BZ-2RQ172-A2 | 1A / 125V AC | with pin | - | 3.7 | screw |
| BZ-2RW822-D5 | 15A / 125V AC | with lever (with roller) | - | 1.7 | screw |
| BZ-2RW8244-A2 | 5A / 125V AC | with lever | - | 0.7 | screw |
| BZ-2RW824-A2 | 15A / 125V AC | with lever | - | 0.7 | screw |
* at resistive load
Switch. method*:
- (OFF)-ON (BZ-2RQ66, BZ-2RQ1, BZ-2RQ124-A2, BZ-2RQ172-A2, BZ-2RW80, BZ-2RW82255-A2-S, BZ-2RW8225551-A2, BZ-2RW82272-A2, BZ-2RW822-D5, BZ-2RW8255-A2-S, BZ-2RW8244-A2, BZ-2RW824-A2, BZ-2R, BZ-2R55-A2-S, BZ-7RW80189-A2, BZ-R-A2, BZ-RMX)
- (ON)-OFF (BZ-2RQ66, BZ-2RQ1, BZ-2RQ124-A2, BZ-2RQ172-A2, BZ-2RW80, BZ-2RW82255-A2-S, BZ-2RW8225551-A2, BZ-2RW82272-A2, BZ-2RW822-D5, BZ-2RW8255-A2-S, BZ-2RW8244-A2, BZ-2RW824-A2, BZ-2R, BZ-2R55-A2-S, BZ-7RW80189-A2, BZ-R-A2, BZ-RMX)
- OFF-(ON) (BZ-2RW84-A2)
- ON-(OFF) (BZ-2RW84-A2)
- ON-(ON) (BZ-2R-A2, BZ-2RD-A2, BZ-2RQ18-A2, BZ-2RQ1-A2, BZ-2RS-A2, BZ-2RS, BZ-2RW822-A2, BZ-2RW822, BZ-2RW826-A2, BZ-2RW82-A2, BZ-2RW863-A2, BZ-RSX, BZ-R)
DC load rating @R**:
- 15A / 250V DC (BZ-2RQ66, BZ-2RW80, BZ-2RW82255-A2-S, BZ-2RW8225551-A2, BZ-2RW8255-A2-S, BZ-7RW80189-A2, BZ-RMX)
- 0.5A / 125V DC (BZ-2R, BZ-2R55-A2-S, BZ-2RQ1, BZ-2RQ124-A2, BZ-2RW822-D5, BZ-2RW8244-A2, BZ-2RW824-A2)
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
