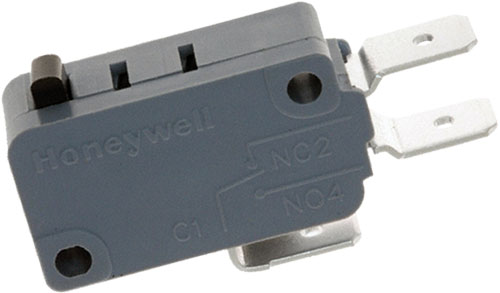

Microswitch SNAP ACTION; HONEYWELL
| Manufacturer | HONEYWELL |
| Type of switch | microswitch SNAP ACTION |
| Switch. method* | ON-(ON) |
| Positions | 2 |
| Leads | connectors |
* the position in bracket indicates momentary position.
Contacts layout:
- SPDT (V15T16-CZxxx, V15T16-EZ100A02, V15T16-EZ300, V15H22-CZ100A02-K)
- SPST-NO (V15T16-CP100)
Body dimensions:
- 33x10.3x15.9mm (V15T16-CZxxx, V15T16-EZ100A02, V15T16-EZ300)
Features:
- without lever (V15T16-xxx00)
- with lever (V15T16-CZ100A02, V15T16-CZ200A03, V15T16-EZ100A02, V15H22-CZ100A02-K)
- with lever (with roller) (V15T16-CZ100A05-K, V15T16-CZ100A06, V15T16-CZ100A06-K, V15T16-CZ300A06-K)
Manufacturer series:
- V15T (V15T16-xxx)
Leads dimensions:
- 4.8x0.5mm (V15T16-EZ100A02, V15T16-EZ300)
- 6.35x0.8mm (V15T16-Cxxx, V15H22-CZ100A02-K)
| Symbol | Mechanical durability | IP rating | Operating temperature | AC load rating @R* | Lever length | Operating Force |
|---|---|---|---|---|---|---|
| [°C] | [mm] | [N] | ||||
| V15T16-CZ100 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | - | 0.98 |
| V15T16-CZ100A02 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 27.5 | 0.98 |
| V15T16-CZ100A05-K | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 12.5 | 0.98 |
| V15T16-CZ100A06 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 25.9 | 0.98 |
| V15T16-CZ100A06-K | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 25.9 | 0.98 |
| V15T16-CZ200A03 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 51.4 | 1.96 |
| V15T16-CZ300A06-K | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 25.9 | 2.94 |
| V15T16-EZ100A02 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | 27.5 | 0.98 |
| V15T16-EZ300 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | - | 2.94 |
| V15T16-CP100 | 1000000 cycles | IP40 | -25...125 | 16A / 250V AC | - | 0.96 |
| V15H22-CZ100A02-K | 5000000 cycles | - | -25...150 | 22A / 250V AC | - | 0.6 |
* at resistive load
