Microswitch SNAP ACTION; SE; HONEYWELL

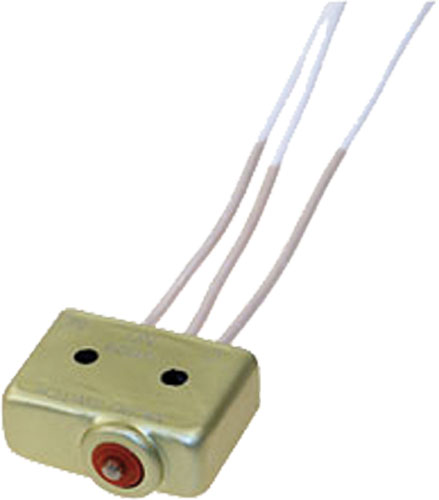

Microswitch SNAP ACTION; SE; HONEYWELL, 1SE1, 1SE1-2, 1SE1-3, 1SE2, 1SE2-3, 1SE3, 1SE3-3, 5SE1 |EN|
ManufacturerHONEYWELL
Type of switchmicroswitch SNAP ACTION
Body dimensions20.3x6.3x12.7mm
Operating temperature-53...105°C
Positions2
AC load rating @R*5A / 250V AC
DC load rating @R*5A / 30V DC
Featureswithout lever
IP ratingIP67
Mechanical durability50000 cycles
Electrical life50000 cycles
Applicationoil environment
Manufacturer seriesSE
* at resistive load
Symbol: (1SE1xx, 5SE1-3, 5SE1-12)
Contacts layoutSPDT
Switch. method*ON-(ON)
Symbol: (1SE2-3)
Contacts layoutSPST-NC
Switch. method*ON-(OFF)
Symbol: (1SE3, 1SE3-3)
Contacts layoutSPST-NO
Switch. method*OFF-(ON)
* the position in bracket indicates momentary position.
Symbol Leads Lead length
[mm]
1SE1 downwards, cables 305
1SE1-2 downwards, cables 610
1SE1-3 downwards, cables 915
1SE2-3 cables 915
1SE3 cables 305
1SE3-3 cables 915
5SE1-3 cables 915
5SE1-12 cables 3660
