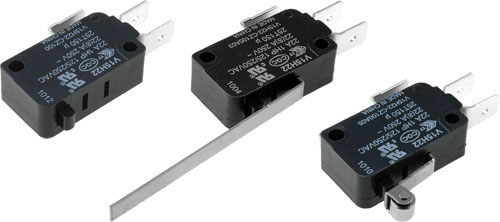

Microswitch SNAP ACTION; V15H; HONEYWELL
| Manufacturer | HONEYWELL |
| Type of switch | microswitch SNAP ACTION |
| Body dimensions | 27.8x10.3x15.9mm |
| Mechanical durability | 5000000 cycles |
| IP rating | IP40 |
| Contacts layout | SPDT |
| Switch. method* | ON-(ON) |
| Positions | 2 |
| AC load rating @R** | 22A / 250V AC |
| Leads | connectors |
| Operating temperature | -25...70°C |
| Manufacturer series | V15H |
| Leads dimensions | 6.3x0.8mm |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
Operating Force:
- 0.98N (V15H22-CZ100xxx)
- 2.94N (V15H22-CZ300A02-K)
Lever length:
- 27.5mm (V15H22-CZ100A02, V15H22-CZ300A02-K)
- 12.5mm (V15H22-CZ100A05, V15H22-CZ100A05-K)
- 26mm (V15H22-CZ100A06)
| Symbol | Ømount. hole | Features |
|---|---|---|
| [mm] | ||
| V15H22-CZ100 | 3.1 | without lever |
| V15H22-CZ100A02 | 3.1 | with lever |
| V15H22-CZ300A02-K | 2.9 | with lever |
| V15H22-CZ100A05 | 3.1 | with lever (with roller) |
| V15H22-CZ100A05-K | 2.9 | with lever (with roller) |
| V15H22-CZ100A06 | 3.1 | with lever (with roller) |
