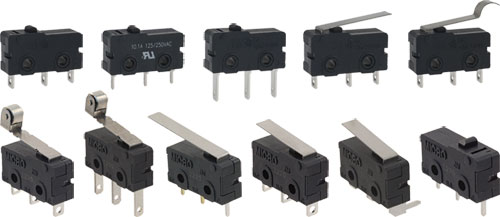

Microswitch SNAP ACTION; ZM; HONEYWELL
| Manufacturer | HONEYWELL |
| Type of switch | microswitch SNAP ACTION |
| Body dimensions | 19.8x6.4x9.5mm |
| Mechanical durability | 10000000 cycles |
| Operating temperature | -40...120°C |
| IP rating | IP40 |
| Contacts layout | SPDT |
| Switch. method* | ON-(ON) |
| Positions | 2 |
| Manufacturer series | ZM |
* the position in bracket indicates momentary position.
DC load rating @R*:
- 0.1A / 30V DC (ZM10xxx01)
- 5A / 30V DC (ZM50Exxx01)
- 10.1A / 30V DC (ZM90G20A01, ZM90G20F01)
AC load rating @R*:
- 0.1A / 125V AC (ZM10xxx01)
- 5A / 250V AC (ZM50Exxx01)
- 10.1A / 250V AC (ZM90G20A01, ZM90G20F01)
Operating Force:
- 0.6N (ZM10B70E01, ZM10B10A01)
- 1N (ZM10D20D01)
- 1.5N (ZM10E10A01, ZM50Exxx01)
- 2.5N (ZM90G20A01, ZM90G20F01)
Features:
- without lever (ZMxxx0A01)
- with lever (ZM10D20D01, ZM50E10C01, ZM50E60B01)
- with lever (with roller) (ZMxxx0F01)
- with lever with roller simulation (ZM10B70E01, ZM50E10E01)
Lever length:
- 18mm (ZM10B70E01, ZM50E10E01)
- 24.8mm (ZM10D20D01)
- 18.7mm (ZM50E10C01)
- 16.6mm (ZMxxx0F01)
- 16.7mm (ZM50E60B01)
* at resistive load
| Symbol | Leads dimensions | Leads |
|---|---|---|
| [mm] | ||
| ZM10B70E01 | 2.8x0.8 | connectors |
| ZM10D20D01 | - | for PCB, straight |
| ZM10E10A01 | - | for soldering |
| ZM50E10A01 | - | for soldering |
| ZM50E10C01 | - | for soldering |
| ZM50E10E01 | - | for soldering |
| ZM50E10F01 | - | for soldering |
| ZM50E20A01 | - | for PCB, straight |
| ZM50E60B01 | - | for PCB, angled |
| ZM50E70A01 | 2.8x0.8 | connectors |
| ZM50E70F01 | 2.8x0.8 | connectors |
| ZM90G20A01 | - | for PCB, straight |
| ZM90G20F01 | - | for PCB, straight |
| ZM10B10A01 | - | for soldering |
