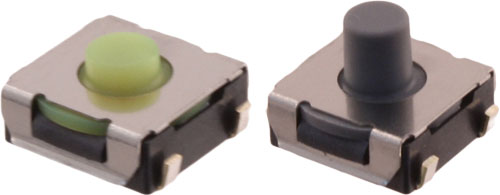

Microswitch TACT; B3SL; OMRON Electronic Components
| Manufacturer | OMRON Electronic Components |
| Mounting | SMT |
| DC contacts rating @R* | 0.05A / 12V DC |
| Button shape | round |
| Min. insulation resistance | 100MΩ |
| Max. contact resistance: | 100mΩ |
| Mechanical durability | 100000 cycles |
| Operating temperature | -25...90°C |
| Positions | 2 |
| Illumination | none |
| Contacts layout | SPST-NO |
| Switch. method** | OFF-(ON) |
| Pitch | 8.5x5mm |
| Type of switch | microswitch TACT |
| Manufacturer series | B3SL |
| Body dimensions | 6.2x6.5mm |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Operating Force |
|---|---|
| [N] | |
| B3SL-1002P-REEL | 1.96 |
| B3SL1005P | 3.5 |
| B3SL1022P | 1.96 |
| Symbol | Leads | Button height* | Actuator colour | Key stroke | Reel |
|---|---|---|---|---|---|
| [mm] | [mm] | [pcs.] | |||
| B3SL-1002P-REEL | for PCB | 3.4 | yellow-green | 0.3 | 100 |
| B3SL1005P | for PCB | 3.4 | blue | 0.6 | 2000 |
| B3SL1022P | - | 5.1 | grey | 0.5 | 1400 |
* measured from PCB
