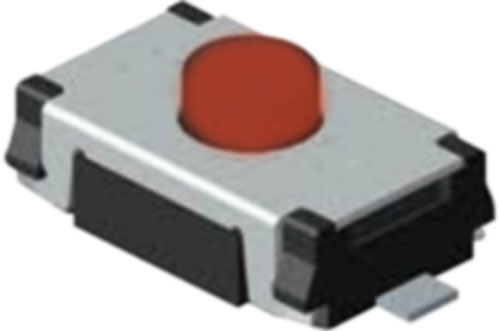

Microswitch TACT; DIPTRONICS
| Manufacturer | DIPTRONICS |
| Type of switch | microswitch TACT |
| Mounting | SMT |
| Leads | for PCB |
| DC contacts rating @R* | 0.025A / 24V DC |
| Button shape | round |
| Operating temperature | -40...85°C |
| Contacts layout | SPST-NO |
| Switch. method** | OFF-(ON) |
| Pitch | 1.4x8mm |
| Button height*** | 2.5mm |

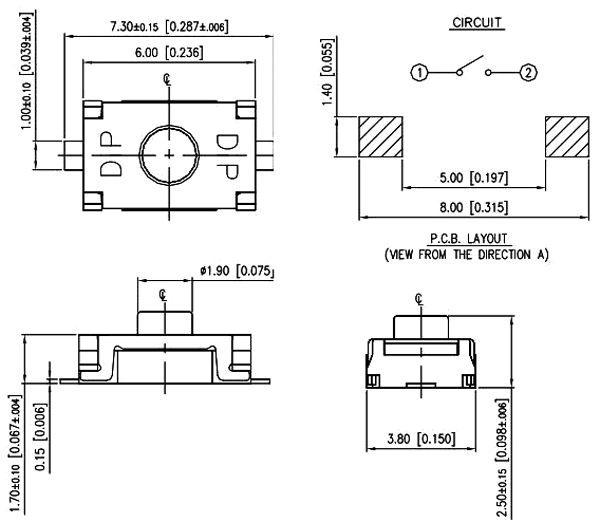

| Dimensions | Fig. 1. |
| Positions | 2 |
| Body dimensions | 3.8x6mm |
* at resistive load
** the position in bracket indicates momentary position.
*** measured from PCB
** the position in bracket indicates momentary position.
*** measured from PCB
| Symbol | Operating Force | Electrical life |
|---|---|---|
| [N] | ||
| TAEF-25S-V-T/R | 4.5 | 100000 cycles |
| TAEF-25K-V-REEL | 1.5 | 200000 cycles |
| TAEF-25N-V-REEL | 2 | 200000 cycles |
| TAEF-25R-V-REEL | 3 | 200000 cycles |
| TAEF-25S-V-REEL | 4.5 | 100000 cycles |
| Symbol | Reel |
|---|---|
| [pcs.] | |
| TAEF-25K-V-REEL | 2700 |
| TAEF-25N-V-REEL | 2700 |
| TAEF-25R-V-REEL | 2700 |
| TAEF-25S-V-REEL | 2700 |
