Microswitches, 83-133LO series

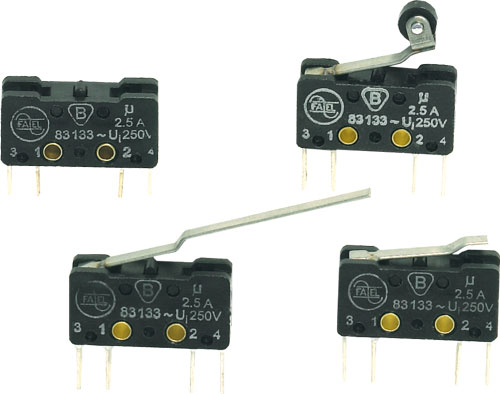

Microswitches, 83-133LO series, WLK-13, WLK-14, WLK-15, WLK-16, WLK-17, WLK-18 |EN|

Manufacturer	PROMET
Type of switch	microswitch SNAP ACTION
Body dimensions	20.4x6.4x10mm
Terminals plating	silver plated
Operating temperature	-25...40°C
Contacts layout	SPST-NO + SPST-NC
Switch. method*	ON-(ON)
Positions	2
AC load rating @R**	2.5A / 250V AC
DC load rating @R**	0.3A / 220V DC
IP rating	IP40
Pitch	3.6mm
Operating Force	1.6N
Dimensions	Fig. 1.

* the position in bracket indicates momentary position.
** at resistive load

Symbol	Features	Lever length
		[mm]
WLK-13	with lever (with roller)	14.1
WLK-14	with lever	35.75
WLK-15	without lever	-
WLK-16	with lever	14.75
WLK-17	with lever (with roller)	34.4
WLK-18	with lever (with roller)	7.5

Symbol	Leads
WLK-13	for PCB, straight
WLK-14	for PCB, straight
WLK-15	for PCB, straight
WLK-16	for PCB, straight
WLK-17	for PCB, straight
WLK-18	for soldering, straight
