Microswitches, DTSMB-3 series

Manufacturer	CANAL ELECTRONIC
Type of switch	microswitch TACT
DC contacts rating @R*	0.05A / 12V DC
Contacts layout	SPST-NO
Switch. method**	OFF-(ON)
Mounting	SMT
Leads	for PCB
Electrical life	50000 cycles
Min. insulation resistance	100MΩ
Max. contact resistance:	100mΩ
Contact material	phosphor bronze
Contact plating	silver plated
Terminals material	brass
Terminals plating	silver plated
Body material	stainless steel, thermoplastic
Actuator colour	white
Button shape	rectangular
Operating temperature	-20...85°C
Operating Force	1.6N
Pitch	1.6x7.4mm

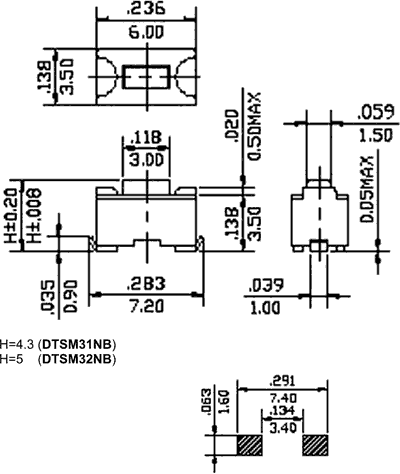

Dimensions	Fig. 1.
Positions	2
Illumination	none
Body dimensions	3.5x6mm

* at resistive load
** the position in bracket indicates momentary position.

Symbol	Button height*
	[mm]
DTSM32NB	5

* measured from PCB
