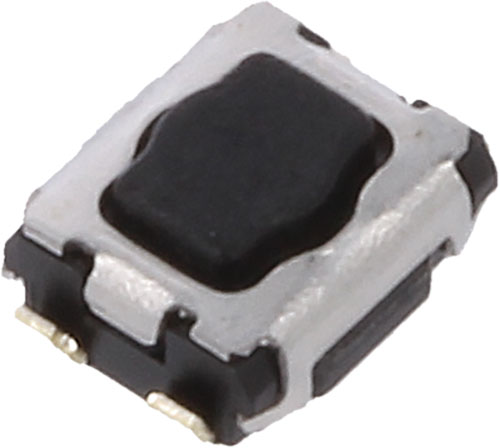

Microswitches, EVPAA series
| Manufacturer | PANASONIC |
| Contacts layout | SPST |
| Type of switch | microswitch TACT |
| Illumination | none |
| Min. insulation resistance | 100MΩ |
| Max. contact resistance: | 100mΩ |
| Operating temperature | -40...85°C |
| Leads | curved |
| Button height* | 1.7mm |
| Mounting | SMT |
| Button shape | rectangular |
| Package | reel |
| Switch. method** | (ON)-OFF |
| Positions | 2 |
| Manufacturer series | EVPAA |
| Body dimensions | 2.9x3.5x1.4mm |
* measured from PCB
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Operating Force | Mech. durability | Actuator colour |
|---|---|---|---|
| [N] | |||
| EVPAA002K | 1 | 1000000 cycles | black |
| EVPAA102K | 1 | 1000000 cycles | black |
| EVPAA202K | 1.6 | 200000 cycles | black |
| EVPAA302K | 1.6 | 200000 cycles | black |
| EVPAA402W | 2.4 | 200000 cycles | white |
| EVPAA502W | 2.4 | 200000 cycles | white |
| EVPAA602W | 3.5 | 200000 cycles | white |
| EVPAA702W | 3.5 | 200000 cycles | white |
| EVPAA802Q | 5 | 100000 cycles | grey |
| EVPAA902Q | 5 | 100000 cycles | grey |
| EVPAAM02W | 3.5 | 500000 cycles | white |
| EVPAAN02Q | 5 | 100000 cycles | grey |
| EVPAAQ02W | 3.5 | 100000 cycles | white |
| EVPAAR02Q | 5 | 100000 cycles | grey |
| EVPAAU02Q | 5 | 200000 cycles | grey |
