Microswitches EVQPE series

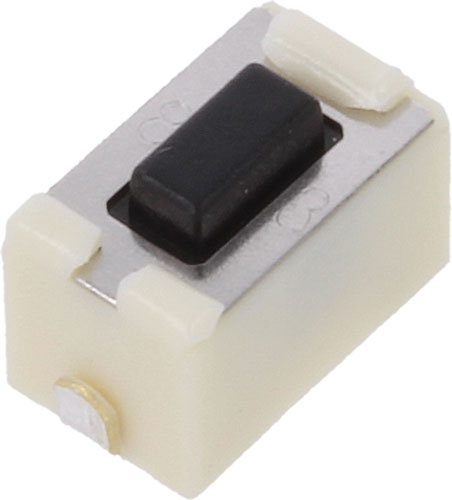

Microswitches EVQPE series, EVQPE104K, EVQPE105K, EVQPE504K, EVQPE505K |EN|

Manufacturer	PANASONIC
Contacts layout	SPST
Button shape	rectangular
Type of switch	microswitch TACT
Switch. method*	OFF-(ON)
Max. contact resistance:	100mΩ
Mechanical durability	50000 cycles
Positions	2
DC contacts rating @R**	0.05A / 12V DC
Operating temperature	-30...85°C
Body dimensions	6x3.5x3.5mm
Min. insulation resistance	100MΩ
Manufacturer series	EVQPE

* the position in bracket indicates momentary position.
** at resistive load

Symbol	Leads	Package	Button height*
			[mm]
EVQPE104K	for PCB	reel	4.3
EVQPE105K	for PCB	reel	5
EVQPE504K	for soldering	-	4.3
EVQPE505K	for soldering	-	5

* measured from PCB
