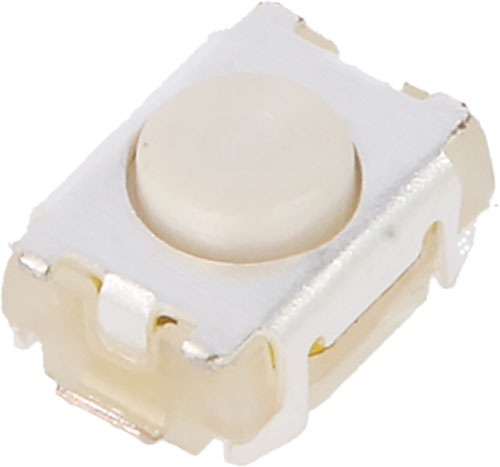

Microswitches, PTS820 series
| Manufacturer | C&K |
| Type of switch | microswitch TACT |
| DC contacts rating @R* | 0.05A / 12V DC |
| Operating temperature | -40...85°C |
| Max. contact resistance: | 100mΩ |
| Min. insulation resistance | 100MΩ |
| Leads | for PCB |
| Mounting | SMT |
| Button shape | round |
| Switch. method** | OFF-(ON) |
| Contacts layout | SPST-NO |
| Package | reel |
| Positions | 2 |
| Illumination | none |
| Contact plating | silver plated |
| Mechanical durability | 200000 cycles |
| Quantity in set/package | 2500pcs. |
| Manufacturer series | PTS820 |
| Body dimensions | 3.9x2.9mm |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Operating Force | Button height* |
|---|---|---|
| [N] | [mm] | |
| PTS820J20MSMTRLFS | 1.6 | 2 |
| PTS820J25MSMTRLFS | 1.6 | 2.5 |
| PTS820J25KSMTR | 2.5 | 2.5 |
* measured from PCB
