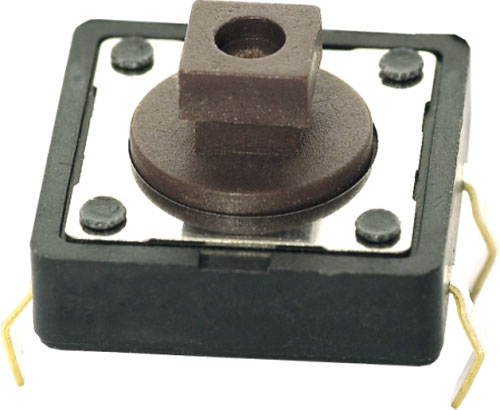

Microswitches, TACTS-2 series
| Manufacturer | NINIGI |
| Type of switch | microswitch TACT |
| DC contacts rating @R* | 0.05A / 12V DC |
| Contacts layout | SPST-NO |
| Mounting | THT |
| Min. insulation resistance | 100MΩ |
| Max. contact resistance: | 50mΩ |
| Pitch | 5x12.5mm |
| Button height** | 7.3mm |
| Positions | 2 |
| Illumination | none |
| Switch. method*** | OFF-(ON) |
| Button size | 3.8x3.8mm |
| Body dimensions | 12x12mm |
* at resistive load
** measured from PCB
*** the position in bracket indicates momentary position.
** measured from PCB
*** the position in bracket indicates momentary position.
| Symbol | Leads | Soldering temperature | Button shape | Operating temperature | Actuator colour | Operating Force |
|---|---|---|---|---|---|---|
| [°C] | [N] | |||||
| TACTS-24K-F | for PCB, straight | 250°C | square | -25...70 | black | 0.69 |
| TACTS-24N-F | for PCB, straight | 250°C | square | -25...70 | yellow | 1.57 |
| TACTS-24R | for soldering | 260°C / 5 s | round | -20...70 | red | 2.55 |
| TACTS-24R-F | for PCB, straight | 250°C | square | -25...70 | black | 2.55 |
