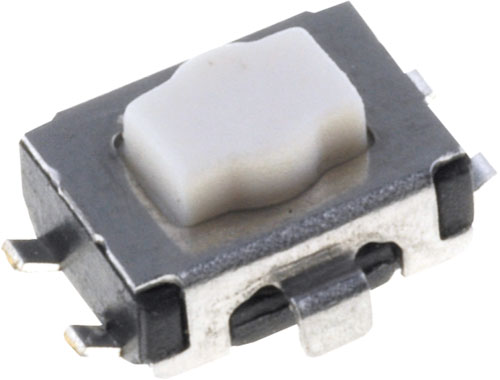

Microswitches, TS472 series
| Manufacturer | CANAL ELECTRONIC |
| Type of switch | microswitch TACT |
| Contacts layout | SPST-NO |
| Switch. method* | OFF-(ON) |
| Mounting | SMT |
| Leads | for PCB |
| DC contacts rating @R** | 0.05A / 12V DC |
| Button shape | rectangular |
| Operating Force | 1.6N |
| Pitch | 1.7x5.15mm |
| Button height*** | 2.5mm |
| Soldering temperature | 230°C / 5 s |
| Mechanical durability | 100000 cycles |
| Min. insulation resistance | 1000MΩ |
| Max. contact resistance: | 500mΩ |
| Contact material | steel |
| Contact plating | silver plated |
| Terminals material | brass |
| Terminals plating | silver plated |
| Body material | stainless steel, thermoplastic |
| Actuator colour | white |
| Operating temperature | -20...70°C |
| Dimensions | Fig. 1. |
| Package | reel |
| Positions | 2 |
| Illumination | none |
| Body dimensions | 4.7x3.5mm |
* the position in bracket indicates momentary position.
** at resistive load
*** measured from PCB
** at resistive load
*** measured from PCB
| Symbol | Product description |
|---|---|
| TS4725MV160 | Microswitch TACT;SPST-NO;Pos:2;0.05A/12VDC;SMT;none;1.6N |
