Microswitches, WLK series

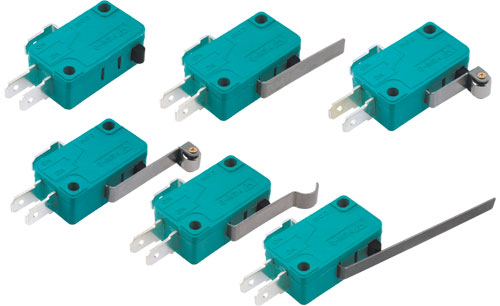

Microswitches, WLK series, WLK-1, WLK-2, WLK-3, WLK-4, WLK-6, WLK-7 |EN|

Manufacturer	NINIGI
Type of switch	microswitch SNAP ACTION
Contacts layout	SPDT
Switch. method*	ON-(ON)
Positions	2
Body dimensions	28x10.3x16mm
Electrical life	100000 cycles
Min. insulation resistance	100MΩ
Max. contact resistance:	30mΩ
Operating temperature	-25...80°C
IP rating	IP40
Operating Force	1.6N
AC load rating @R**	10A / 250V AC
Leads	connectors
Leads dimensions	4.8x0.5mm

* the position in bracket indicates momentary position.
** at resistive load

Lever length:

27mm (WLK-2)
12mm (WLK-3)
25mm (WLK-4)
23mm (WLK-6)
53mm (WLK-7)

Symbol	Features	Dimensions
WLK-1	without lever	Fig. 1.
WLK-2	with lever	Fig. 2.
WLK-3	with lever (with roller)	-
WLK-4	with lever (with roller)	Fig. 3.

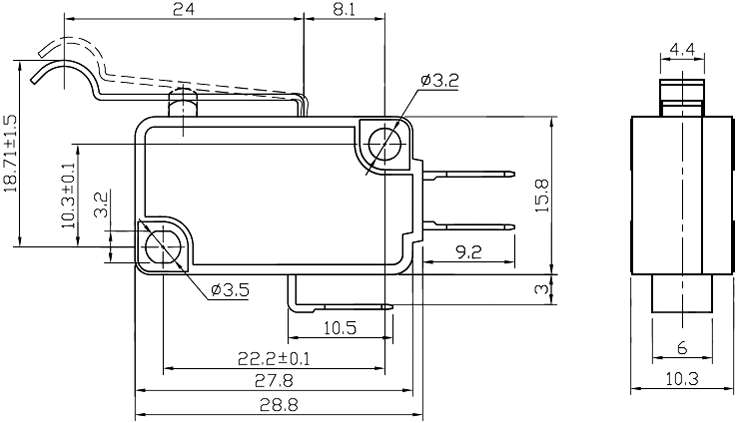

WLK-6	with lever with roller simulation	Fig. 4.
WLK-7	with lever	Fig. 2.
