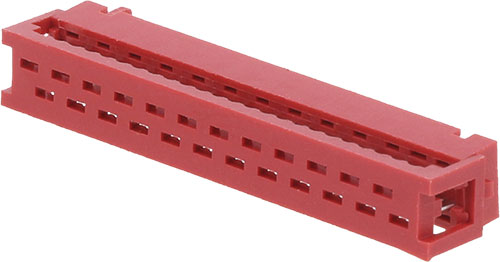

MINI FLEX , ADAM TECH
| Manufacturer | ADAM TECH |
| Type of connector | PCB-cable/PCB |
| Tape pitch | 1.27mm |
| Operating temperature | -40...105°C |
| Symbol | Connector | Kind | Spatial orientation | Current rating | Max. contact resistance: | Min. insulation resistance | Electr. mounting | Mechanical mounting | Pin | Layout |
|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [mΩ] | [MΩ] | ||||||||
| MPF-A1-04-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 4 | 2x2 |
| MPF-A1-04-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 4 | 2x2 |
| MPF-A1-04-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 4 | 2x2 |
| MPF-A1-06-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 6 | 2x3 |
| MPF-A1-06-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 6 | 2x3 |
| MPF-A1-06-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 6 | 2x3 |
| MPF-A1-08-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 8 | 2x4 |
| MPF-A1-08-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 8 | 2x4 |
| MPF-A1-08-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 8 | 2x4 |
| MPF-A1-10-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 10 | 2x5 |
| MPF-A1-10-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 10 | 2x5 |
| MPF-A1-10-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 10 | 2x5 |
| MPF-A1-12-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 12 | 2x6 |
| MPF-A1-12-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 12 | 2x6 |
| MPF-A1-12-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 12 | 2x6 |
| MPF-A1-14-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 14 | 2x7 |
| MPF-A1-14-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 14 | 2x7 |
| MPF-A1-14-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 14 | 2x7 |
| MPF-A1-16-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 16 | 2x8 |
| MPF-A1-16-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 16 | 2x8 |
| MPF-A1-16-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 16 | 2x8 |
| MPF-A1-18-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 18 | 2x9 |
| MPF-A1-20-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 20 | 2x10 |
| MPF-A1-20-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 20 | 2x10 |
| MPF-A1-20-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 20 | 2x10 |
| MPF-A1-24-H-T | socket | female | angled | 1 | 20 | 1000 | THT | on PCBs | 24 | 2x12 |
| MPF-A1-24-SMT-T | socket | female | straight | 1 | 20 | 1000 | SMT | on PCBs | 24 | 2x12 |
| MPF-A1-24-V-T-L | socket | female | straight | 1.2 | 30 | 300 | THT | on PCBs | 24 | 2x12 |
| MPH-04-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 4 | 2x2 |
| MPH-06-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 6 | 2x3 |
| MPH-08-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 8 | 2x4 |
| MPH-10-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 10 | 2x5 |
| MPH-12-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 12 | 2x6 |
| MPH-14-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 14 | 2x7 |
| MPH-16-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 16 | 2x8 |
| MPH-18-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 18 | 2x9 |
| MPH-20-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 20 | 2x10 |
| MPH-24-F3-T | plug | male | - | 1 | 20 | 1000 | IDC | for ribbon cable | 24 | 2x12 |
| MPH-A2-04-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 4 | 2x2 |
| MPH-A2-04-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 4 | 2x2 |
| MPH-A2-06-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 6 | 2x3 |
| MPH-A2-06-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 6 | 2x3 |
| MPH-A2-08-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 8 | 2x4 |
| MPH-A2-08-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 8 | 2x4 |
| MPH-A2-10-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 10 | 2x5 |
| MPH-A2-10-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 10 | 2x5 |
| MPH-A2-12-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 12 | 2x6 |
| MPH-A2-12-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 12 | 2x6 |
| MPH-A2-14-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 14 | 2x7 |
| MPH-A2-14-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 14 | 2x7 |
| MPH-A2-16-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 16 | 2x8 |
| MPH-A2-16-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 16 | 2x8 |
| MPH-A2-18-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 18 | 2x9 |
| MPH-A2-20-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 20 | 2x10 |
| MPH-A2-20-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 20 | 2x10 |
| MPH-A2-24-SMT-T | socket | male | straight | 1 | 20 | 1000 | SMT | on PCBs | 24 | 2x12 |
| MPH-A2-24-V-T | socket | male | straight | 1 | 20 | 1000 | THT | on PCBs | 24 | 2x12 |
