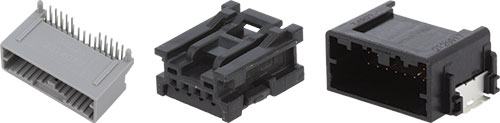

Mini50 series connectors, MOLEX

Mini50 series connectors, MOLEX, MX-34791-0020, MX-34791-0040, MX-34791-0041, MX-34791-0080 |EN|
ManufacturerMOLEX
Type of connectorautomotive
Symbol Colour Polarisation Kind Connector Type Mechanical mounting No. of pins Plating Electr. mounting Spatial orientation Wire Package Øext. cable Application - series/manufacturer Manufacturer series
[mm2] [mm]
MX-34791-0020 black A female plug w/o contacts for cable 2 - - - - - - - Mini50
MX-34791-0040 black A female plug w/o contacts for cable 4 - - - - - - - Mini50
MX-34791-0041 grey B female plug w/o contacts for cable 4 - - - - - - - Mini50
MX-34791-0080 black A female plug w/o contacts for cable 8 - - - - - - - Mini50
MX-34792-0080 - - male contact - - - - - - - - - - Mini50
MX-34792-8040 black A male socket - on PCBs 4 tinned THT straight - - - - Mini50
MX-34792-8080 black A male socket - on PCBs 8 tinned THT straight - - - - Mini50
MX-34793-0040 - - male contact - on PCBs - - - - - - - - Mini50
MX-34793-0080 - - male contact - on PCBs - - - - - - - - Mini50
MX-34824-0124 - - female - - for cable 12 - - - - - - - Mini50
MX-34824-0200 - - female socket - for cable 20 - - - - - - - Mini50
MX-34824-0244 - - female - - - 24 - - - - - - - Mini50
MX-34824-1124 black A female plug w/o contacts for cable 12 - - - - - - - Mini50
MX-34825-8200 black A male socket - on PCBs 20 tinned THT straight - - - - Mini50
MX-34826-0124 black A male socket - on PCBs 12 tinned THT angled 90° - - - - Mini50
MX-34826-0160 black A male socket - on PCBs 16 tinned THT angled 90° - - - - Mini50
MX-34826-0200 black A male socket - on PCBs 20 tinned THT angled 90° - - - - Mini50
MX-34826-0240 black A male socket - on PCBs 24 tinned THT angled 90° - - - - Mini50
MX-34826-8124 black A male socket - on PCBs 12 tinned THT angled 90° - - - - Mini50
MX-34826-8161 grey B male socket - on PCBs 16 tinned THT angled 90° - - - - Mini50
MX-34826-8241 grey B male socket - on PCBs 24 tinned THT angled 90° - - - - Mini50
MX-34897-6120 black A male socket - on PCBs 12 gold-plated SMT horizontal - - - - Mini50
MX-34897-6200 black A male socket - on PCBs 20 gold-plated SMT horizontal - - - - Mini50
MX-34912-6040 black A male socket - on PCBs 4 gold-plated SMT horizontal - - - - Mini50
MX-34912-6080 black A male socket - on PCBs 8 gold-plated SMT horizontal - - - - Mini50
MX-34912-8020 black A male socket - on PCBs 2 tinned SMT horizontal - - - - Mini50
MX-34912-8040 black A male socket - on PCBs 4 tinned SMT horizontal - - - - Mini50
MX-34912-8080 black A male socket - on PCBs 8 tinned SMT horizontal - - - - Mini50
MX-34958-0340 black A male socket - on PCBs 34 tinned THT straight - - - - Mini50
MX-34959-0340 black A female plug w/o contacts; with lock for cable 34 - - - - - - - Mini50
MX-34959-0347 black A male plug w/o contacts for cable 34 - - - - - - - Mini50
MX-34961-0340 black A male socket - on PCBs 34 tinned THT angled 90° - - - - Mini50
MX-34961-8340 black A male socket - on PCBs 34 tinned THT angled 90° - - - - Mini50
MX-34967-1001 black A female plug w/o contacts; sealed; with lock for cable 10 - - - - - - - Mini50 Sealed
MX-34967-4001 black A female plug w/o contacts; sealed; with lock for cable 4 - - - - - - - Mini50 Sealed
MX-560023-0421 - - female contact - for cable - tinned - - 0.22 cut from reel - Mini50 -
MX-560023-0444 - - female contact - for cable - tinned - - 0.13 - - Mini50 -
MX-560023-0548 - - female contact - for cable - gold-plated - - 0.35 reel 1.1...1.4 CTX50, Mini50 -
