Miniature relays, RXG series

ManufacturerSCHNEIDER ELECTRIC
Type of relayelectromagnetic
Variantminiature
Mountingsocket
Switched voltagemax. 250V AC
Switched voltagemax. 30V DC
Contact resistance100mΩ
Operating temperature-40...70°C
Contact materialAgSnO2In2O3
Trade nameZelio Relay
Manufacturer seriesRXG
Symbol Contacts layout Ucoil Pcoil Pcoil Icontacts max AC load rating @R* DC load rating @R* Term. pitch Body dimensions Dimensions Output configuration Optional equipment Related items
[mW] [VA] [A] [mm] [mm]
RXG11BD SPDT 24V DC 530 - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. test button with blocking function RGZE1S35M
RXG11B7 SPDT 24V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. test button with blocking function RGZE1S35M
RXG11P7 SPDT 230V AC - 0.82 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. test button with blocking function RGZE1S35M
RXG12BD SPDT 24V DC 530 - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12ED SPDT 48V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12FD SPDT 110V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12JD SPDT 12V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12RD SPDT 6V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12B7 SPDT 24V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12F7 SPDT 120V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. test button with blocking function; LED indicator RGZE1S35M
RXG12P7 SPDT 230V AC - 0.82 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-2. Fig. 2-2. LED indicator RGZE1S35M
RXG13B7 SPDT 24V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. LED indicator RGZE1S35M
RXG13BD SPDT 24V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. LED indicator RGZE1S35M
RXG13F7 SPDT 120V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. LED indicator RGZE1S35M
RXG13JD SPDT 12V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. LED indicator RGZE1S35M
RXG13P7 SPDT 230V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-1. Fig. 2-1. LED indicator RGZE1S35M
RXG15BD SPDT 24V DC 530 - 10 10A / 250V AC 10A / 30V DC 5.2 29x29x13 Fig. 1-3. Fig. 2-3. - RGZE1S35M
RXG15P7 SPDT 230V AC - 0.82 10 10A / 250V AC 10A / 30V DC 5.2 29x29x13 Fig. 1-3. Fig. 2-3. - RGZE1S35M
RXG15F7 SPDT 120V AC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-3. Fig. 2-3. - RGZE1S35M
RXG15JD SPDT 12V DC - - 10 10A / 250V AC 10A / 30V DC 5.2 29x36.5x13 Fig. 1-3. Fig. 2-3. - RGZE1S35M

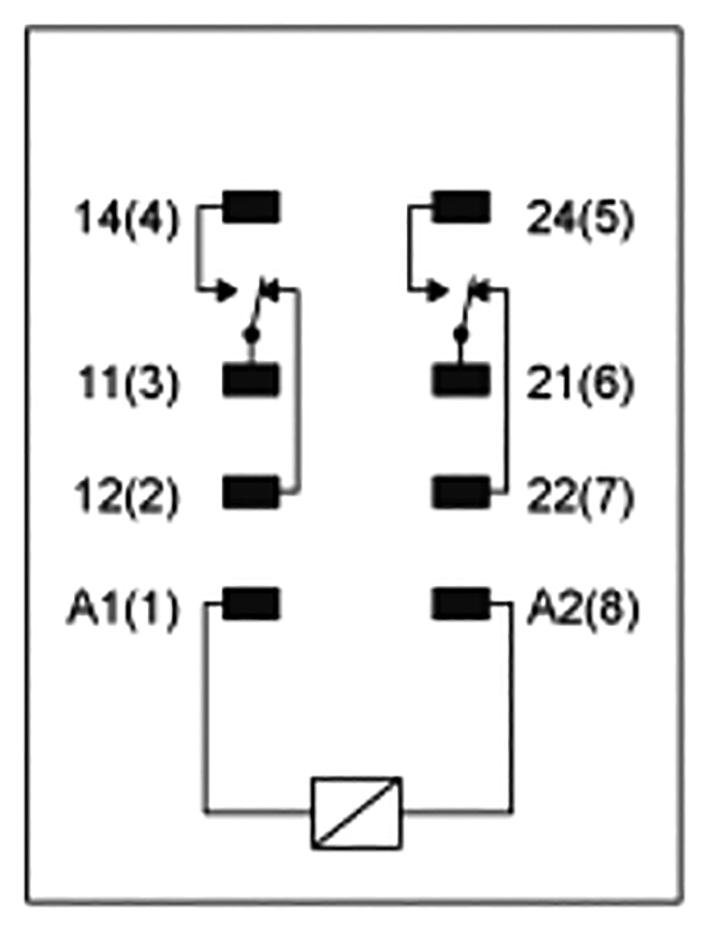

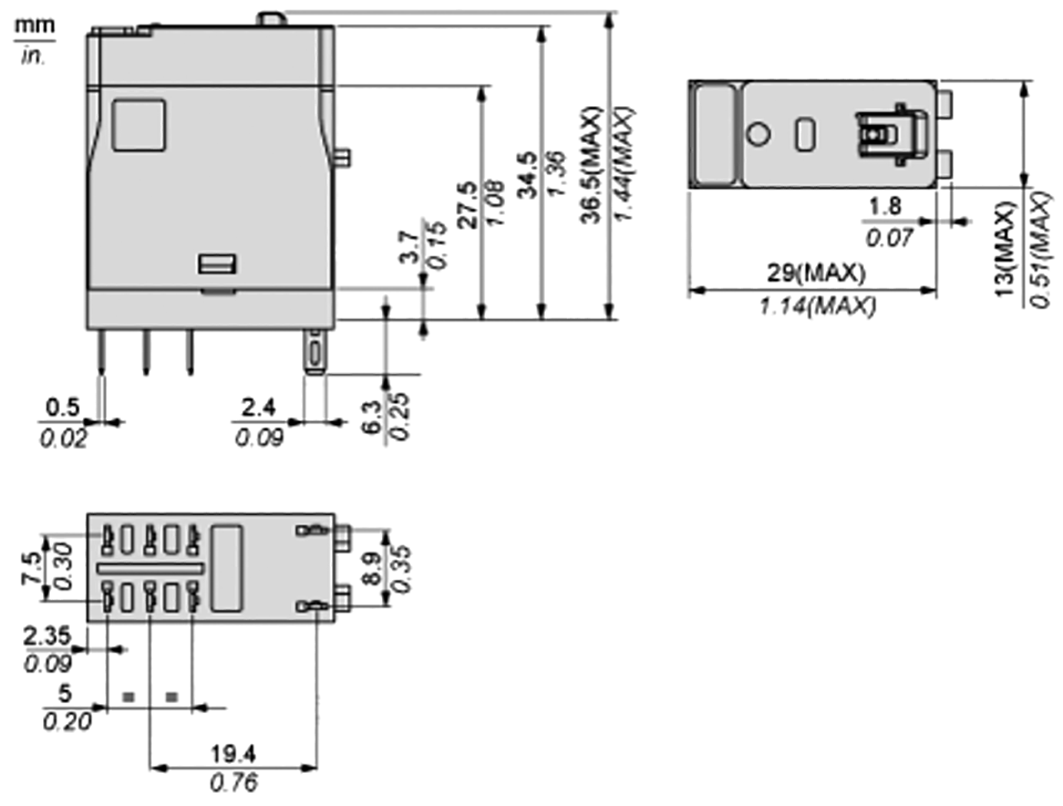

RXG21BD DPDT 24V DC 530 - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21P7 DPDT 230V AC - 0.82 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21E7 DPDT 48V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21F7 DPDT 120V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21JD DPDT 12V DC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21M7 DPDT 220V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21B7 DPDT 24V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG21RD DPDT 6V DC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-4. Fig. 2-4. test button with blocking function RGZE1S48M
RXG22BD DPDT 24V DC 530 - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22P7 DPDT 230V AC - 0.82 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22B7 DPDT 24V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22E7 DPDT 48V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22ED DPDT 48V DC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22F7 DPDT 120V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22FD DPDT 110V DC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22JD DPDT 12V DC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG22M7 DPDT 220V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-5. Fig. 2-5. test button with blocking function; LED indicator RGZE1S48M
RXG23B7 DPDT 24V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 - - LED indicator RGZE1S48M
RXG23BD DPDT 24V DC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 - - LED indicator RGZE1S48M
RXG23E7 DPDT 48V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 - - LED indicator RGZE1S48M
RXG23F7 DPDT 120V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 - - LED indicator RGZE1S48M
RXG23M7 DPDT 220V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 - - LED indicator RGZE1S48M
RXG23P7 DPDT 230V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 - - LED indicator RGZE1S48M
RXG25BD DPDT 24V DC 530 - 5 5A / 250V AC 5A / 30V DC 5 29x29x13 Fig. 1-6. Fig. 2-6. - RGZE1S48M
RXG25P7 DPDT 230V AC - 0.82 5 5A / 250V AC 5A / 30V DC 5 29x29x13 Fig. 1-6. Fig. 2-6. - RGZE1S48M
RXG25F7 DPDT 120V AC - - 5 5A / 250V AC 5A / 30V DC 5 29x36.5x13 Fig. 1-6. Fig. 2-6. - RGZE1S48M
* at resistive load
