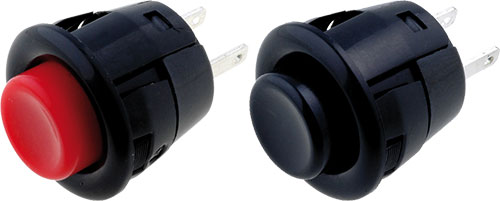

Miyama Push-button switches
| Manufacturer | MIYAMA |
| Type of switch | push-button |
| Positions | 2 |
| Contacts layout | SPST-NO |
| Mounting | on panel |
| Max. contact resistance: | 20mΩ |
| Min. insulation resistance | 100MΩ |
| Body colour | black |
| Symbol | Operating temperature | Leads | AC contacts rating @R* | Panel thickness | Mounting hole diameter | Button shape | Illumination | Backlight colour | Actuator colour | Switch. method** | AC test voltage | Manufacturer series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [°C] | [mm] | [mm] | [kV] | |||||||||
| DS412B | -10...55 | for soldering | 3A / 125V AC | 0.7...2.6 | Ø17.8 | round, prominent | none | - | black | OFF-(ON) | 1 | DS-412 |
| DS412R | -10...55 | for soldering | 3A / 125V AC | 0.7...2.6 | Ø17.8 | round, prominent | none | - | red | OFF-(ON) | 1 | DS-412 |
| DS412W | -10...55 | for soldering | 3A / 125V AC | 0.7...2.6 | Ø17.8 | round, prominent | none | - | white | OFF-(ON) | 1 | DS-412 |
| DS430-K | -10...55 | for soldering | 0.5A / 250V AC | 1...2.5 | 12.4x11.2 | square, prominent | none | - | black | OFF-(ON) | 1.5 | DS-430 |
| DS430-R | -10...55 | for soldering | 0.5A / 250V AC | 1...2.5 | 12.4x11.2 | square, prominent | none | - | red | OFF-(ON) | 1.5 | DS-430 |
| DS430-W | -10...55 | for soldering | 0.5A / 250V AC | 1...2.5 | 12.4x11.2 | square, prominent | none | - | white | OFF-(ON) | 1.5 | DS-430 |
| DS-435-S-R | -10...55 | for soldering | 1A / 250V AC | 1.5...3 | 12.2x11.2 | square, prominent | none | - | red | OFF-ON | 1.5 | DS-435 |
| DS663CRWPCKK | - | for PCB | 1A / 125V AC | - | Ø15 | round, prominent | none | - | - | OFF-(ON) | - | - |
| DS-664K-C-L-S-K-TG | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | Ø16.9 | round, prominent | LED | green | green | OFF-ON | 1 | DS-664 |
| DS-664K-C-L-S-K-TR | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | Ø16.9 | round, prominent | LED | red | red | OFF-ON | 1 | DS-664 |
| DS-664K-C-L-S-K-TY | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | Ø16.9 | round, prominent | LED | yellow | yellow | OFF-ON | 1 | DS-664 |
| DS-664K-S-L-S-K-TG | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | 16x14 | square, prominent | LED | green | green | OFF-ON | 1 | DS-664 |
| DS-664K-S-L-S-K-TR | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | 16x14 | square, prominent | LED | red | red | OFF-ON | 1 | DS-664 |
| DS-664K-S-L-S-K-TY | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | 16x14 | square, prominent | LED | yellow | yellow | OFF-ON | 1 | DS-664 |
| DS-664L-C-L-S-K-TR | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | Ø16.9 | round, prominent | LED | red | red | OFF-(ON) | 1 | DS-664 |
| DS-664L-C-N-S-K-K | -10...55 | for soldering | 1A / 125V AC | 1...2.5 | Ø16.9 | round, prominent | none | - | - | OFF-(ON) | 1 | DS-664 |
* at resistive load
** the position in bracket indicates momentary position.
