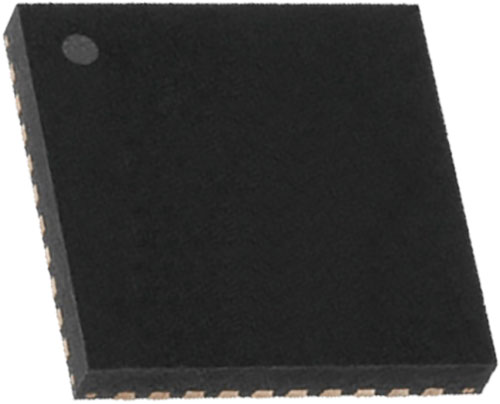

Motor drivers from MICROCHIP TECHNOLOGY
| Symbol | Manufacturer's part number | Manufacturer | IC | Mounting | Kind of output | Topology | Channels | Operating temperature | Operating voltage | Amplifiers | Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [°C] | [V DC] | ||||||||||
| MCP8024-H/MP | MCP8024-H/MP | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 6...28 | 3 | QFN40 |
| MCP8024-H/PT | MCP8024-H/PT | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 6...28 | 3 | TQFP48 |
| MCP8025-115E/PT | MCP8025-115E/PT | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 6...19 | 1 | TQFP48 |
| MCP8026-115E/PT | MCP8026-115E/PT | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 6...28 | 3 | TQFP48 |
| MTD6505T-E/NA | MTD6505T-E/NA | MICROCHIP TECHNOLOGY | driver | SMD | half bridge driver x3 | 3 | -40...150 | 2.7...5.5 | - | DFN10 | |
| MTD6508-ADJE/JQ | MTD6508-ADJE/JQ | MICROCHIP TECHNOLOGY | driver | SMD | half bridge driver x3 | - | 3 | -40...125 | 2.7...5.5 | - | UQFN16 |
| MCP8063-E/MD | MCP8063-E/MD | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 2...14 | - | DFN8 |
| MCP80223315HNHXVAO | MCP8022-3315H/NHXVAO | MICROCHIP TECHNOLOGY | driver | SMD | half bridge driver x3 | - | 3 | -40...150 | 4...40 | 3 | VQFN40 |
| MCP80225015HNHXVAO | MCP8022-5015H/NHXVAO | MICROCHIP TECHNOLOGY | driver | SMD | half bridge driver x3 | - | 3 | -40...150 | 4...40 | 3 | VQFN40 |
| MCP80215015H9PXVAO | MCP8021-5015H/9PXVAO | MICROCHIP TECHNOLOGY | driver | SMD | half bridge driver x3 | - | 3 | -40...150 | 4...40 | - | VQFN28 |
| MCP8027T-H/Q9X | MCP8027T-H/Q9X | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 6...28 | 3 | QFN40 |
| MCP8027T-H/Y4X | MCP8027T-H/Y4X | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 6...28 | 3 | TQFP48 |
| MIC4607A-1YML-TR | MIC4607A-1YML-TR | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | H-bridge | - | -40...125 | 5.5...16 | - | VQFN28 |
| MIC4607A-2YML-TR | MIC4607A-2YML-TR | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | H-bridge | - | -40...125 | 5.5...16 | - | VQFN28 |
| ATA6847T-3333E/NHX | ATA6847T-3333E/NHX | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...125 | 3...42 | - | VQFN40 |
| ATA6847T-3333H/NHX | ATA6847T-3333H/NHX | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN40 |
| ATA6847T-5033E/NHX | ATA6847T-5033E/NHX | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...125 | 3...42 | - | VQFN40 |
| ATA6847T-5033H/NHX | ATA6847T-5033H/NHX | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN40 |
| ATA6847T-5050E/NHX | ATA6847T-5050E/NHX | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...125 | 3...42 | - | VQFN40 |
| ATA6847T-5050H/NHX | ATA6847T-5050H/NHX | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN40 |
| ATA6847T3333HNHXVA | ATA6847T-3333H/NHXVAO | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN40 |
| ATA6847T3333LHZWXV | ATA6847T-3333LH/ZWXVAO | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN48 |
| ATA6847T5033HNHXVA | ATA6847T-5033H/NHXVAO | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN40 |
| ATA6847T5033LHZWXV | ATA6847T-5033LH/ZWXVAO | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN48 |
| ATA6847T5050HNHXVA | ATA6847T-5050H/NHXVAO | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN40 |
| ATA6847T5050LHZWXV | ATA6847T-5050LH/ZWXVAO | MICROCHIP TECHNOLOGY | driver | SMD | gate driver | - | - | -40...150 | 3...42 | - | VQFN48 |
| Symbol | Kind of ciruit | Protection | Iout | Output voltage | Application | Features | Interface | Kind of package |
|---|---|---|---|---|---|---|---|---|
| [A] | [V] | |||||||
| MCP8024-H/MP | 3-phase motor controller | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP, voltage drop BOP | 20m | - | universal | - | - | tube |
| MCP8024-H/PT | 3-phase motor controller | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP, voltage drop BOP | - | - | universal | - | - | in-tray |
| MCP8025-115E/PT | 3-phase motor controller | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP, voltage drop BOP | 30m | - | automotive industry | - | - | in-tray |
| MCP8026-115E/PT | 3-phase motor controller | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP, voltage drop BOP | - | - | motors, fans | - | - | in-tray |
| MTD6505T-E/NA | 3-phase motor controller | anti-overload OPP, anti-overvoltage OVP, overheating OTP | 1 | -0.7...7 | motors, fans | - | PWM | reel, tape |
| MTD6508-ADJE/JQ | 3-phase motor controller | anti-overload OPP, anti-overvoltage OVP, overheating OTP | 750m | 2...5.5 | motors, fans | - | PWM | tube |
| MCP8063-E/MD | 3-phase motor controller | anti-overload OPP, overheating OTP | 1.5 | - | automotive industry | - | PSM; PWM | tube |
| MCP80223315HNHXVAO | 3-phase motor controller, LDO | undervoltage UVP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP | 0.5 | 3.3, 6.25...29 | 3-phase BLDC motors, automotive industry | - | UART | tube |
| MCP80225015HNHXVAO | 3-phase motor controller, LDO | undervoltage UVP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP | 0.5 | 5, 6.25...29 | 3-phase BLDC motors, automotive industry | - | UART | tube |
| MCP80215015H9PXVAO | 3-phase motor controller, LDO | undervoltage UVP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP | 0.5 | 5, 6.25...29 | 3-phase BLDC motors, automotive industry | - | UART | tube |
| MCP8027T-H/Q9X | 3-phase motor controller, LDO | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP, voltage drop BOP | 0.5 | - | motors, fans | - | PWM | reel, tape |
| MCP8027T-H/Y4X | 3-phase motor controller, LDO | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP, voltage drop BOP | 0.5 | - | motors, fans | - | PWM | reel, tape |
| MIC4607A-1YML-TR | 3-phase motor controller | - | 1 | - | universal | - | - | reel, tape |
| MIC4607A-2YML-TR | 3-phase motor controller | - | 1 | - | - | - | - | reel, tape |
| ATA6847T-3333E/NHX | system basis chip SBC | - | - | 3.3 | 3-phase BLDC motors | motor gate driver unit GDU; integrated voltage regulator | SPI | reel, tape |
| ATA6847T-3333H/NHX | system basis chip SBC | - | - | 3.3 | 3-phase BLDC motors | motor gate driver unit GDU; integrated voltage regulator | SPI | reel, tape |
| ATA6847T-5033E/NHX | system basis chip SBC | - | - | 3.3, 5 | 3-phase BLDC motors | motor gate driver unit GDU; integrated voltage regulator | SPI | reel, tape |
| ATA6847T-5033H/NHX | system basis chip SBC | - | - | 3.3, 5 | 3-phase BLDC motors | motor gate driver unit GDU; integrated voltage regulator | SPI | reel, tape |
| ATA6847T-5050E/NHX | system basis chip SBC | - | - | 5 | 3-phase BLDC motors | motor gate driver unit GDU; integrated voltage regulator | SPI | reel, tape |
| ATA6847T-5050H/NHX | system basis chip SBC | - | - | 5 | 3-phase BLDC motors | motor gate driver unit GDU; integrated voltage regulator | SPI | reel, tape |
| ATA6847T3333HNHXVA | system basis chip SBC | - | - | 3.3 | 3-phase BLDC motors, automotive industry | motor gate driver unit GDU; operational amplifier x2; integrated voltage regulator | - | - |
| ATA6847T3333LHZWXV | system basis chip SBC | - | - | 3.3 | 3-phase BLDC motors, automotive industry | LIN transceiver; motor gate driver unit GDU; operational amplifier x2; integrated voltage regulator | - | - |
| ATA6847T5033HNHXVA | system basis chip SBC | - | - | 3.3, 5 | 3-phase BLDC motors, automotive industry | motor gate driver unit GDU; operational amplifier x2; integrated voltage regulator | - | - |
| ATA6847T5033LHZWXV | system basis chip SBC | - | - | 3.3, 5 | 3-phase BLDC motors, automotive industry | LIN transceiver; motor gate driver unit GDU; operational amplifier x2; integrated voltage regulator | - | - |
| ATA6847T5050HNHXVA | system basis chip SBC | - | - | 5 | 3-phase BLDC motors, automotive industry | motor gate driver unit GDU; operational amplifier x2; integrated voltage regulator | - | - |
| ATA6847T5050LHZWXV | system basis chip SBC | - | - | 5 | 3-phase BLDC motors, automotive industry | LIN transceiver; motor gate driver unit GDU; operational amplifier x2; integrated voltage regulator | - | - |
