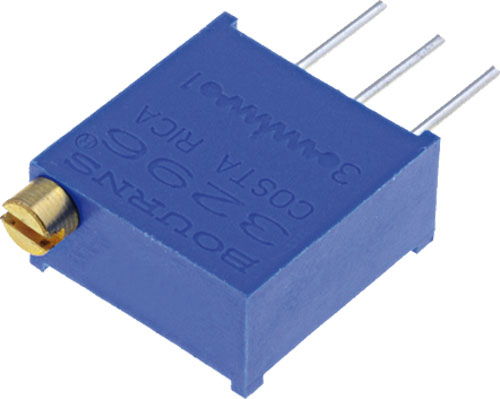

Multiturn trimmers, 3/8” standard, Bourns
| Manufacturer | BOURNS |
| Type of potentiometer | mounting |
| Track mat. | cermet |
| Characteristics | linear |
| Power | 500mW |
| Tolerance | ±10% |
| Temp. coefficient | 100ppm/°C |
| Number of electrical turns | 25 |
| Mounting | THT |
| Operating temperature | -55...125°C |
| Dimensions | Fig. 1. |
| Potentiometer standard - inch | 3/8" |
| Symbol | Body dimensions | Resist. | Term. pitch | Operating voltage | Manufacturer series |
|---|---|---|---|---|---|
| [mm] | [Ω] | [mm] | [V] | ||
| 3296W-1-101LF | 10x9.5x4.8 | 100 | 2.54 | 300 | 3269W |
| 3296W-1-102LF | 10x9.5x4.8 | 1k | 2.54 | 300 | 3269W |
| 3296W-1-103LF | 10x9.5x4.8 | 10k | 2.54 | 300 | 3269W |
| 3296W-1-104LF | 10x9.5x4.8 | 100k | 2.54 | 300 | 3269W |
| 3296W-1-105LF | 10x9.5x4.8 | 1M | 2.54 | 300 | - |
| 3296W-1-201LF | 10x9.5x4.8 | 200 | 2.54 | 300 | 3269W |
| 3296W-1-202LF | 10x9.5x4.8 | 2k | 2.54 | 300 | 3269W |
| 3296W-1-203LF | 10x9.5x4.8 | 20k | 2.54 | 300 | 3269W |
| 3296W-1-204LF | 10x9.5x4.8 | 200k | 2.54 | 300 | 3269W |
| 3296W-1-501LF | 10x9.5x4.8 | 500 | 2.54 | 300 | 3269W |
| 3296W-1-502LF | 10x9.5x4.8 | 5k | 2.54 | 300 | - |
| 3296W-1-503LF | 10x9.5x4.8 | 50k | 2.54 | 300 | 3269W |
| 3296W-1-504LF | 10x9.5x4.8 | 500k | 2.54 | 300 | - |
| 3296X-1-101LF | 10x9.5x4.8 | 100 | 2.54 | 300 | 3296X |
| 3296X-1-102LF | 10x9.5x4.8 | 1k | 2.54 | 300 | 3296X |
| 3296X-1-103LF | 10x9.5x4.8 | 10k | 2.54 | 300 | 3296X |
| 3296X-1-104LF | 10x9.5x4.8 | 100k | 2.54 | 300 | 3296X |
| 3296X-1-201LF | 10x9.5x4.8 | 200 | 2.54 | 300 | 3296X |
| 3296X-1-202LF | 10x9.5x4.8 | 2k | 2.54 | 300 | 3296X |
| 3296X-1-203LF | 10x9.5x4.8 | 20k | 2.54 | 300 | 3296X |
| 3296X-1-204LF | 10x9.5x4.8 | 200k | 2.54 | 300 | 3296X |
| 3296X-1-501LF | 10x9.5x4.8 | 500 | 2.54 | 300 | 3296X |
| 3296X-1-503LF | 10x9.5x4.8 | 50k | 2.54 | 300 | 3296X |
| 3296Y-1-101LF | 10x9.5x4.8 | 100 | 5.08x2.54 | 300 | - |
| 3296Y-1-102LF | 10x9.5x4.8 | 1k | 5.08x2.54 | 300 | - |
| 3296Y-1-103LF | 10x9.5x4.8 | 10k | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-104LF | 10x9.5x4.8 | 100k | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-105LF | 10x9.5x4.8 | 1M | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-201LF | 10x9.5x4.8 | 200 | 5.08x2.54 | 300 | - |
| 3296Y-1-202LF | 10x9.5x4.8 | 2k | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-203LF | 10x9.5x4.8 | 20k | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-204LF | 10x9.5x4.8 | 200k | 5.08x2.54 | 300 | - |
| 3296Y-1-501LF | 10x9.5x4.8 | 500 | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-502LF | 10x9.5x4.8 | 5k | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-503LF | 10x9.5x4.8 | 50k | 5.08x2.54 | 300 | 3296Y |
| 3296Y-1-504LF | 10x9.5x4.8 | 500k | 5.08x2.54 | 300 | 3296Y |
| 3296Z-1-103LF | 10x9.5x4.8 | 10k | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-104LF | 10x9.5x4.8 | 100k | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-105LF | 10x9.5x4.8 | 1M | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-202LF | 10x9.5x4.8 | 2k | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-203LF | 10x9.5x4.8 | 20k | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-501LF | 10x9.5x4.8 | 500 | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-502LF | 10x9.5x4.8 | 5k | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-503LF | 10x9.5x4.8 | 50k | 5.08x2.54 | 300 | 3296Z |
| 3296Z-1-504LF | 10x9.5x4.8 | 500k | 5.08x2.54 | 300 | 3296Z |
| 3299P-1-100LF | 10x9.5x6.1 | 10 | 5.08x2.54 | 300 | - |
| 3299P-1-101LF | 10x9.5x6.1 | 100 | 5.08x2.54 | 300 | - |
| 3299P-1-102LF | 10x9.5x6.1 | 1k | 5.08x2.54 | 300 | - |
| 3299P-1-103LF | 10x9.5x6.1 | 10k | 5.08x2.54 | 300 | - |
| 3299P-1-104LF | 10x9.5x6.1 | 100k | 5.08x2.54 | 300 | - |
| 3299P-1-105LF | 10x9.5x6.1 | 1M | 5.08x2.54 | 300 | - |
| 3299P-1-201LF | 10x9.5x6.1 | 200 | 5.08x2.54 | 300 | - |
| 3299P-1-202LF | 10x9.5x6.1 | 2k | 5.08x2.54 | 300 | - |
| 3299P-1-203LF | 10x9.5x6.1 | 20k | 5.08x2.54 | 300 | - |
| 3299P-1-501LF | 10x9.5x6.1 | 500 | 5.08x2.54 | 300 | - |
| 3299P-1-502LF | 10x9.5x6.1 | 5k | 5.08x2.54 | 300 | - |
| 3299P-1-503LF | 10x9.5x6.1 | 50k | 5.08x2.54 | 300 | - |
| 3299P-1-504LF | 10x9.5x6.1 | 500k | 5.08x2.54 | 300 | - |
| 3299W-1-101LF | 10x9.5x6.1 | 100 | 2.54 | 300 | 3299W |
| 3299W-1-102LF | 10x9.5x6.1 | 1k | 2.54 | 300 | 3299W |
| 3299W-1-103LF | 10x9.5x6.1 | 10k | 2.54 | 300 | 3299W |
| 3299W-1-104LF | 10x9.5x6.1 | 100k | 2.54 | 300 | 3299W |
| 3299W-1-105LF | 10x9.5x6.1 | 1M | 2.54 | 300 | 3299W |
| 3299W-1-201LF | 10x9.5x6.1 | 200 | 2.54 | 300 | 3299W |
| 3299W-1-202LF | 10x9.5x6.1 | 2k | 2.54 | 300 | 3299W |
| 3299W-1-203LF | 10x9.5x6.1 | 20k | 2.54 | 300 | 3299W |
| 3299W-1-204LF | 10x9.5x6.1 | 200k | 2.54 | 300 | 3299W |
| 3299W-1-253LF | 10x9.5x6.1 | 25k | 2.54 | 300 | 3299W |
| 3299W-1-254LF | 10x9.5x6.1 | 250k | 2.54 | 300 | - |
| 3299W-1-501LF | 10x9.5x6.1 | 500 | 2.54 | 300 | 3299W |
| 3299W-1-502LF | 10x9.5x6.1 | 5k | 2.54 | 300 | 3299W |
| 3299W-1-503LF | 10x9.5x6.1 | 50k | 2.54 | 300 | 3299W |
| 3299W-1-504LF | 10x9.5x6.1 | 500k | 2.54 | 300 | 3299W |
| 3299X-1-101LF | 10x9.5x6.1 | 100 | 2.54 | 300 | 3299X |
| 3299X-1-102LF | 10x9.5x6.1 | 1k | 2.54 | 300 | 3299X |
| 3299X-1-103LF | 10x9.5x6.1 | 10k | 2.54 | 300 | 3299X |
| 3299X-1-104LF | 10x9.5x6.1 | 100k | 2.54 | 300 | 3299X |
| 3299X-1-105LF | 10x9.5x6.1 | 1M | 2.54 | 300 | 3299X |
| 3299X-1-201LF | 10x9.5x6.1 | 200 | 2.54 | 300 | 3299X |
| 3299X-1-202LF | 10x9.5x6.1 | 2k | 2.54 | 300 | 3299X |
| 3299X-1-203LF | 10x9.5x6.1 | 20k | 2.54 | 300 | 3299X |
| 3299X-1-204LF | 10x9.5x6.1 | 200k | 2.54 | 300 | 3299X |
| 3299X-1-253LF | 10x9.5x6.1 | 25k | 2.54 | 300 | 3299X |
| 3299X-1-501LF | 10x9.5x6.1 | 500 | 2.54 | 300 | 3299X |
| 3299X-1-502LF | 10x9.5x6.1 | 5k | 2.54 | 300 | 3299X |
| 3299X-1-503LF | 10x9.5x6.1 | 50k | 2.54 | 300 | 3299X |
| 3299X-1-504LF | 10x9.5x6.1 | 500k | 2.54 | 300 | 3299X |
| 3296P-1-103LF | 10x9.5x6.1 | 10k | 2.54 | 300 | - |
| 3296W-1-205LF | 10x9.5x6.1 | 2M | 2.54 | 300 | - |
| 3296W-1-500LF | 10x9.5x6.1 | 50 | 2.54 | 300 | - |
| 3296X-1-502LF | 10x9.5x6.1 | 5k | 2.54 | 300 | - |
| 3296Z-1-102LF | 10x9.5x6.1 | 1k | 2.54 | 300 | - |
