MURATA AC/DC converters
| Manufacturer | Murata Power Solutions |
| Symbol | Dimensions | Uinsul | Type of converter | Power | Manufacturer series | Mounting | Case | Output voltage | Iout | Efficiency | Operating temperature | Body dim. | Input voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [kV DC] | [W] | [V DC] | [mA] | [%] | [°C] | [mm] | |||||||

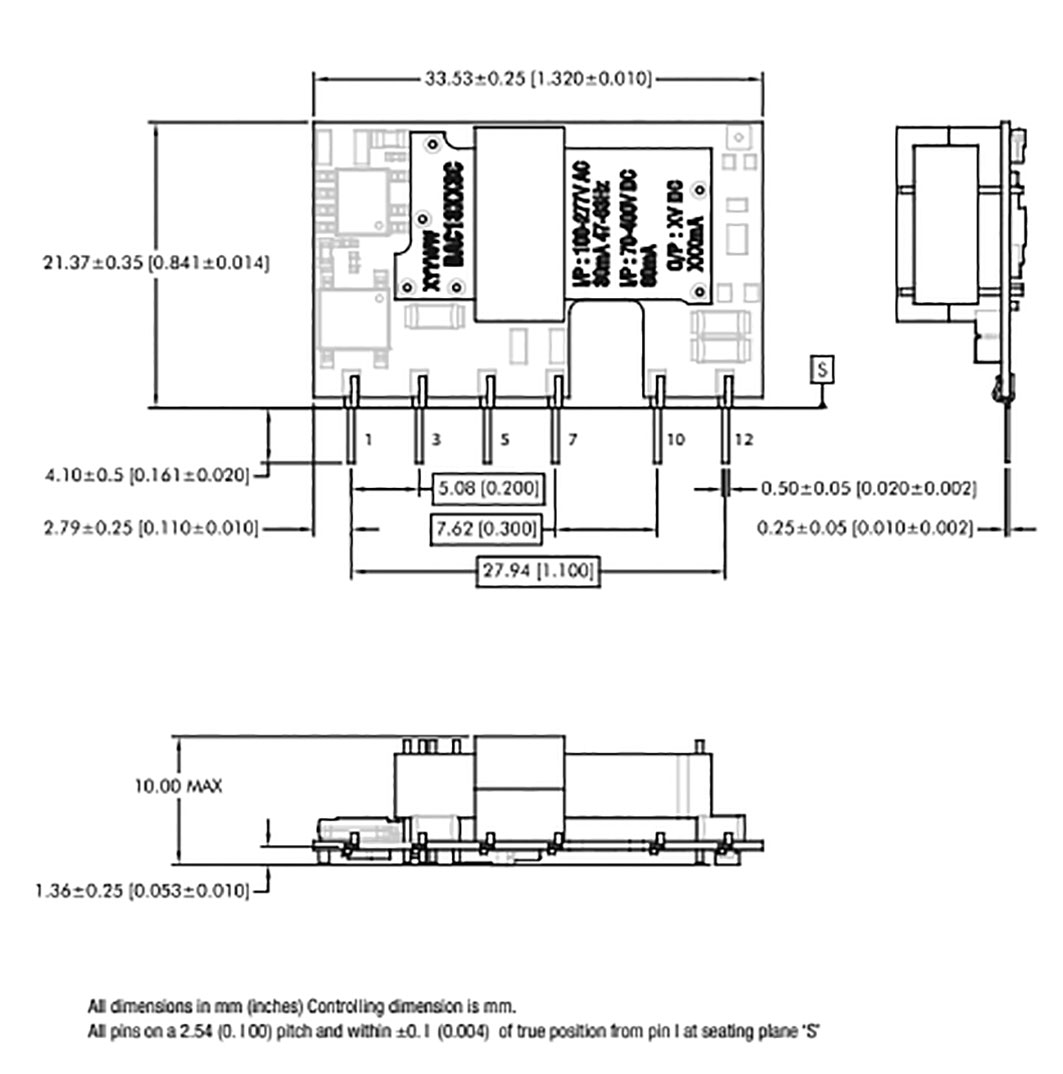

| BAC1S05SC | Fig. 1. | 4 | AC/DC | 1 | BAC | THT | SIP | 5 | 200 | 73 | -40...85 | 33.53x10x21.37 | 85...305V AC, 70...400V DC |
| BAC1S12SC | Fig. 1. | 4 | AC/DC | 1 | BAC | THT | SIP | 12 | 83 | 73 | -40...85 | 33.53x10x21.37 | 85...305V AC, 70...400V DC |
| BAC1S24SC | Fig. 1. | 4 | AC/DC | 1 | BAC | THT | SIP | 24 | 42 | 71 | -40...85 | 33.53x10x21.37 | 85...305V AC, 70...400V DC |

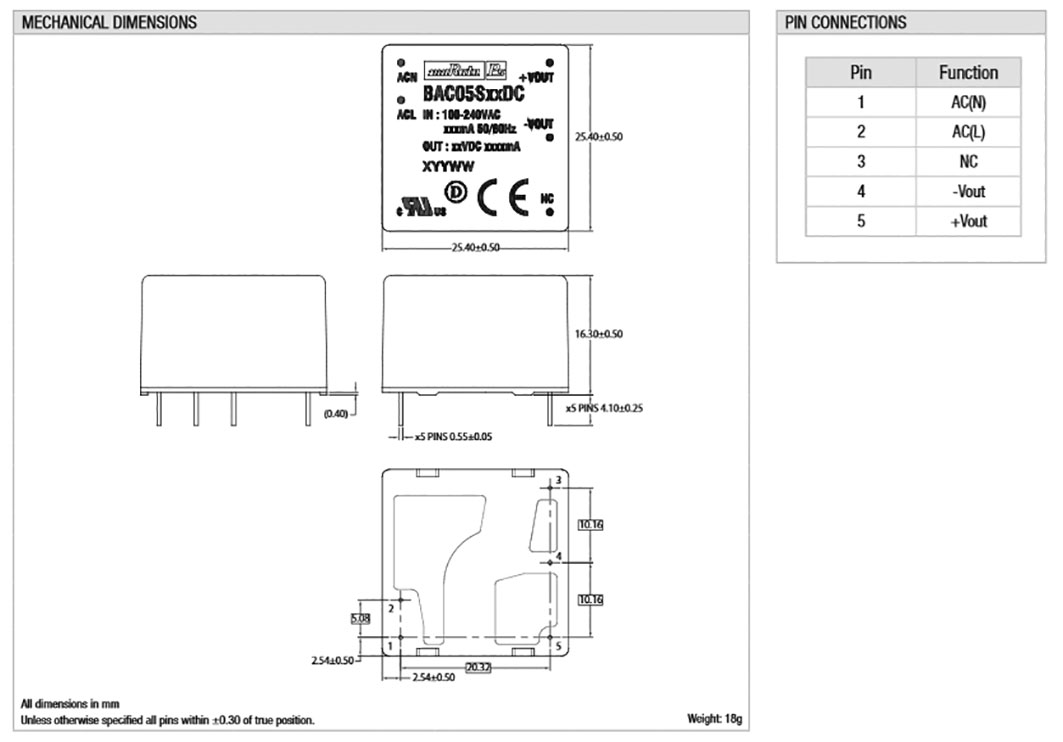

| BAC05S05DC | Fig. 2. | 4.25 | AC/DC | 5 | BAC | THT | DIP | 5 | 1000 | 76 | -40...85 | 25.4x25.4x16.3 | 85...264V AC, 120...370V DC |
| BAC05S12DC | Fig. 2. | 4.25 | AC/DC | 5 | BAC | THT | DIP | 12 | 420 | 79 | -40...85 | 25.4x25.4x16.3 | 85...264V AC, 120...370V DC |
| BAC05S24DC | Fig. 2. | 4.25 | AC/DC | 5 | BAC | THT | DIP | 24 | 210 | 80.5 | -40...85 | 25.4x25.4x16.3 | 85...264V AC, 120...370V DC |

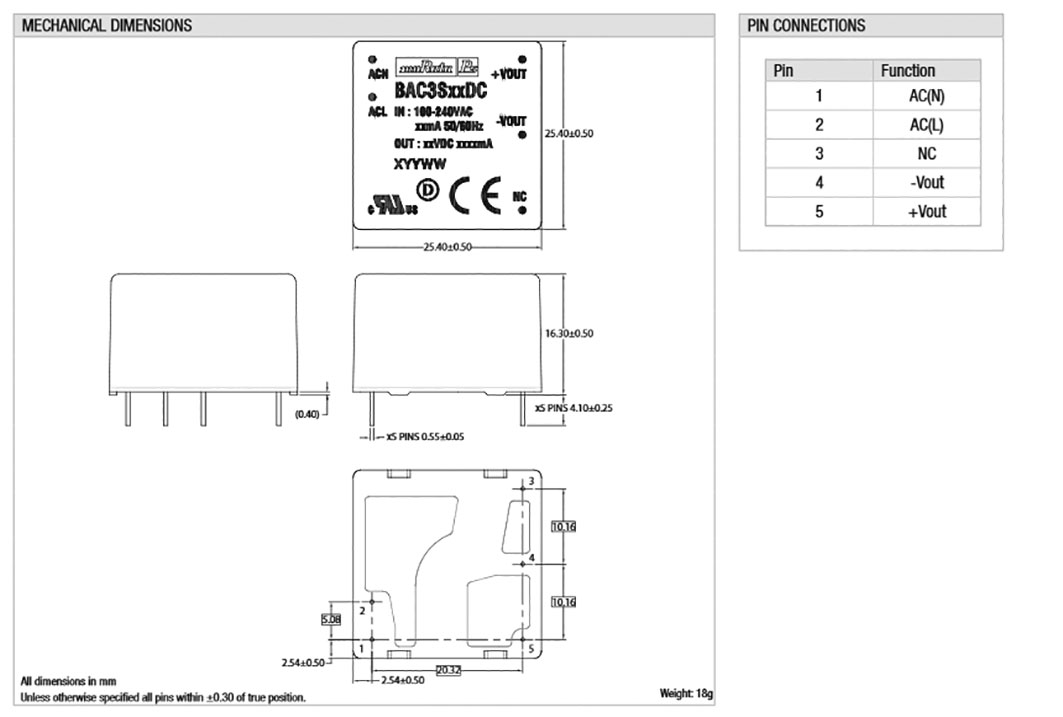

| BAC3S05DC | Fig. 3. | 4.25 | AC/DC | 3 | BAC | THT | DIP | 5 | 600 | 75 | -40...85 | 25.4x25.4x16.3 | 85...264V AC, 120...370V DC |
| BAC3S12DC | Fig. 3. | 4.25 | AC/DC | 3 | BAC | THT | DIP | 12 | 250 | 77 | -40...85 | 25.4x25.4x16.3 | 85...264V AC, 120...370V DC |
| BAC3S24DC | Fig. 3. | 4.25 | AC/DC | 3 | BAC | THT | DIP | 24 | 125 | 78 | -40...85 | 25.4x25.4x16.3 | 85...264V AC, 120...370V DC |
