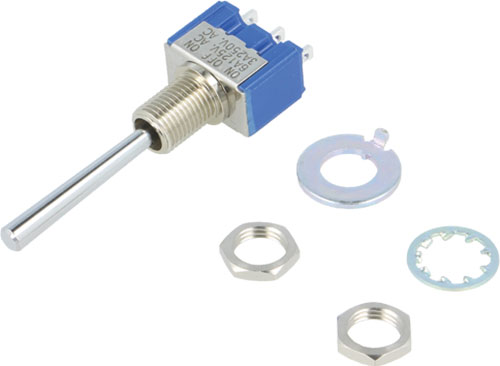

NIDEC COPAL Toggle switches
| Manufacturer | Nidec Copal Electronics |
| Type of switch | toggle |
| Symbol | Contacts layout | Kind of toggle | Switch. method* | Leads | Min. insulation resistance | Max. contact resistance: | Slider height | Positions | AC contacts rating @R** | Operating temperature | DC contacts rating @R** | Body dim. | Manufacturer series | Mounting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [MΩ] | [mΩ] | [mm] | [°C] | [mm] | ||||||||||
| ATE1D-2M3-10-Z | SPDT | round | ON-ON | for soldering | 500 | 50 | 6 | 2 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | PCB, THT |
| ATE1D-5M3-10-Z | SPDT | round | ON-ON | for soldering, right | 500 | 50 | 6 | 2 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | PCB, THT |
| ATE1E-2M3-10-Z | SP3T | round | ON-OFF-ON | for soldering | 500 | 50 | 6 | 3 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | PCB, THT |
| ATE1F-5M3-10-Z | SPDT | round | ON-(ON) | for soldering, right | 500 | 50 | 6 | 2 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | THT |
| ATE1G-2M3-10-Z | SP3T | round | (ON)-OFF-(ON) | for soldering | 500 | 50 | 6 | 3 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | PCB, THT |
| ATE2D-2M3-10-Z | DPDT | round | ON-ON | for soldering | 500 | 50 | 6 | 2 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | PCB, THT |
| ATE2E-2M3-10-Z | DP3T | round | ON-OFF-ON | for soldering | 500 | 50 | 6 | 3 | 0.05A / 48V AC | -20...85 | 0.05A / 48V DC | 9.5x5x8 | ATE | PCB, THT |
| ET105E12-Z | SP3T | round | ON-OFF-ON | for soldering | 100 | 20 | 17 | 3 | 5A / 125V AC | - | - | 28.6x16x14.5 | ET | on panel |
| ET110E12-Z | SP3T | round | ON-OFF-ON | for soldering | 100 | 20 | 17 | 3 | 10A / 125V AC | - | - | 28.6x16x14.5 | ET | on panel |
| ET115D10-Z | SPDT | round | ON-ON | screw | 100 | 20 | 17 | 2 | 15A / 125V AC | - | - | 28.6x16x14.5 | ET | on panel |
| ET115E12-Z | SP3T | round | ON-OFF-ON | for soldering | 100 | 20 | 17 | 3 | 15A / 125V AC | - | - | 28.6x16x14.5 | ET | on panel |
| ET120A12-Z | SPST | round | ON-ON | for soldering | 100 | 20 | 17 | 2 | 20A / 125V AC | - | - | 28.6x16x14.5 | ET | on panel |
| ET120D12-Z | SPDT | round | ON-ON | for soldering | 100 | 20 | 17 | 2 | 20A / 125V AC | - | - | 28.6x16x14.5 | ET | on panel |
| ET610N13-Z | 6PDT | round | ON-ON | for soldering | 100 | 20 | 27 | 2 | 10A / 125V AC | - | - | 55x34.5x25 | ET | on panel |
| FT1D-2M-Z | SPDT | round | ON-ON | for soldering | 500 | 100 | 3.8 | 2 | 0.4A / 28V AC | -40...85 | 0.4A / 28V DC | 4.5x7x5.4 | FT | THT |
| FT1D-4M-Z | SPDT | round | ON-ON | for soldering, right | 500 | 100 | 3.8 | 2 | 0.4A / 28V AC | -40...85 | 0.4A / 28V DC | 4.5x7x5.4 | FT | THT |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
