OMRON
| Manufacturer | OMRON |
| Body dimensions | Ø50x58mm |
| Features | shaft 8mm |
| Operating temperature | -10...70°C |
| IP rating | IP65 |
| Connection | cables |
| Symbol | Resolution | Usup | Output configuration | Type of encoder | Switching frequency max | Dimensions | Lead length |
|---|---|---|---|---|---|---|---|
| [imp/revol.] | [V DC] | [kHz] | [m] | ||||

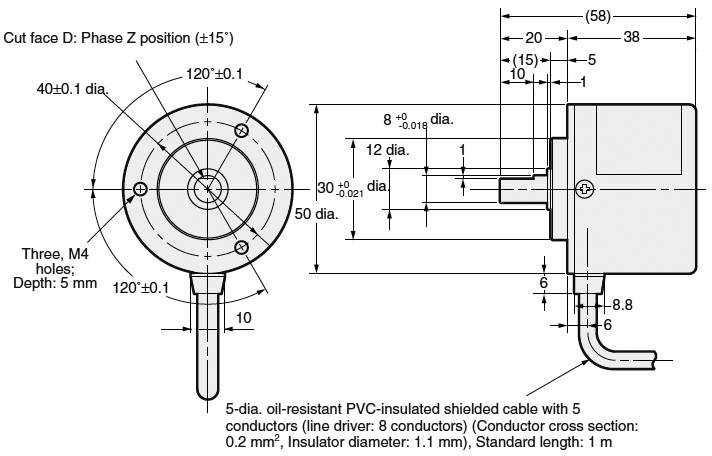

| E6C3-CWZ5GH-100 | 100 | 12...24 | PNP/NPN complementary | incremental | 125 | Fig. 1. | 2 |
| E6C3-CWZ5GH-360 | 360 | 12...24 | PNP/NPN complementary | incremental | 125 | Fig. 1. | 2 |
| E6C3-CWZ5GH-500 | 500 | 12...24 | PNP/NPN complementary | incremental | 125 | Fig. 1. | 2 |
| E6C3-CWZ5GH-1000 | 1000 | 12...24 | PNP/NPN complementary | incremental | 125 | Fig. 1. | 2 |
| E6C3-CWZ5GH-3600 | 3600 | 12...24 | PNP/NPN complementary | incremental | 125 | Fig. 1. | 2 |
| E6C3-CWZ3XH-3600 | 3600 | 5...12 | linear | incremental | 125 | Fig. 1. | 2 |
| E6C3-CWZ5GH-100-2M | 100 | 12...24 | PNP/NPN complementary | incremental | 125 | Fig. 1. | 2 |
| E6C3-AB5B-12-1M | 12 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AB5B-12-2M | 12 | 12...24 | PNP | absolute | - | - | 2 |
| E6C3-AB5B-6-1M | 6 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AB5B-6-2M | 6 | 12...24 | PNP | absolute | - | - | 2 |
| E6C3-AB5B-8-1M | 8 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AB5B-8-2M | 8 | 12...24 | PNP | absolute | - | - | 2 |
| E6C3-AB5C-12-1M | 12 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AB5C-12-2M | 12 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-AB5C-6-1M | 6 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AB5C-6-2M | 6 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-AB5C-8-1M | 8 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AB5C-8-2M | 8 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-AG5B-1024-1M | 1024 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AG5B-256-1M | 256 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AG5B-256-2M | 256 | 12...24 | PNP | absolute | - | - | 2 |
| E6C3-AG5B-360-1M | 360 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AG5B-360-5M | 360 | 12...24 | PNP | absolute | - | - | 5 |
| E6C3-AG5B-720-1M | 720 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AG5C-1024-1M | 1024 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AG5C-256-1M | 256 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AG5C-256-2M | 256 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-AG5C-360-1M | 360 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AG5C-720-1M | 720 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AG5C-720-2M | 720 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-AG5C-C-256-1M | 256 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AG5C-C-360-1M | 360 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AN1E-256-1M | 256 | 5 | voltage | absolute | - | - | 1 |
| E6C3-AN1E-256-2M | 256 | 5 | voltage | absolute | - | - | 2 |
| E6C3-AN2E-256-1M | 256 | 12 | voltage | absolute | - | - | 1 |
| E6C3-AN5B-32-1M | 32 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AN5B-32-2M | 32 | 12...24 | PNP | absolute | - | - | 2 |
| E6C3-AN5B-40-1M | 40 | 12...24 | PNP | absolute | - | - | 1 |
| E6C3-AN5B-40-2M | 40 | 12...24 | PNP | absolute | - | - | 2 |
| E6C3-AN5C-32-1M | 32 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AN5C-32-2M | 32 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-AN5C-40-1M | 40 | 12...24 | NPN | absolute | - | - | 1 |
| E6C3-AN5C-40-2M | 40 | 12...24 | NPN | absolute | - | - | 2 |
| E6C3-CWZ3EH-1000-1 | 1000 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-1000-2 | 1000 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-100-1M | 100 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-100-2M | 100 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-1024-1 | 1024 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-1024-2 | 1024 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-1200-1 | 1200 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-1200-2 | 1200 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-1500-1 | 1500 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-1500-2 | 1500 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-1800-1 | 1800 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-1800-2 | 1800 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-2000-1 | 2000 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-2000-2 | 2000 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-200-1M | 200 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-200-2M | 200 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-2048-1 | 2048 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-2048-2 | 2048 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-2500-1 | 2500 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-2500-2 | 2500 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-300-1M | 300 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-300-2M | 300 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-3600-1 | 3600 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-3600-2 | 3600 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-360-1M | 360 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-500-1M | 500 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-500-2M | 500 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-600-1M | 600 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-600-2M | 600 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-720-1M | 720 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-720-2M | 720 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3EH-800-1M | 800 | 5...12 | voltage | incremental | - | - | 1 |
| E6C3-CWZ3EH-800-2M | 800 | 5...12 | voltage | incremental | - | - | 2 |
| E6C3-CWZ3XH-1000-1 | 1000 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-1000-2 | 1000 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-100-1M | 100 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-100-2M | 100 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-1024-1 | 1024 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-1024-2 | 1024 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-1200-1 | 1200 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-1200-2 | 1200 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-1500-1 | 1500 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-1500-2 | 1500 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-1800-1 | 1800 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-1800-2 | 1800 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-2000-1 | 2000 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-2000-2 | 2000 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-200-1M | 200 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-200-2M | 200 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-2048-1 | 2048 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-2048-2 | 2048 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-2500-1 | 2500 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-2500-2 | 2500 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-300-1M | 300 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-300-2M | 300 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-3600-1 | 3600 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-3600-2 | 3600 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-360-1M | 360 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-360-2M | 360 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-500-1M | 500 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-500-2M | 500 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-600-1M | 600 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-600-2M | 600 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-720-1M | 720 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-720-2M | 720 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ3XH-800-1M | 800 | 5...12 | linear | incremental | - | - | 1 |
| E6C3-CWZ3XH-800-2M | 800 | 5...12 | linear | incremental | - | - | 2 |
| E6C3-CWZ5GH-1000-1 | 1000 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-1000-2 | 1000 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-100-1M | 100 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-1024-1 | 1024 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-1024-2 | 1024 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-1200-1 | 1200 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-1200-2 | 1200 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-1500-1 | 1500 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-1500-2 | 1500 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-1800-1 | 1800 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-1800-2 | 1800 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-2000-1 | 2000 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-2000-2 | 2000 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-200-1M | 200 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-200-2M | 200 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-2048-1 | 2048 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-2048-2 | 2048 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-2500-1 | 2500 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-2500-2 | 2500 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-300-1M | 300 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-300-2M | 300 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-3600-1 | 3600 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-3600-2 | 3600 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-360-1M | 360 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-360-2M | 360 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-500-1M | 500 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-500-2M | 500 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-600-1M | 600 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-600-2M | 600 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-720-1M | 720 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-720-2M | 720 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
| E6C3-CWZ5GH-800-1M | 800 | 12...24 | PNP/NPN complementary | incremental | - | - | 1 |
| E6C3-CWZ5GH-800-2M | 800 | 12...24 | PNP/NPN complementary | incremental | - | - | 2 |
