OMRON
| Manufacturer | OMRON |
| Mounting | on panel, for DIN rail mounting, socket |
| Mounting hole | 45x45mm |
| Electrical connection | round socket |
| Body dimensions | 48x48x81.6mm |
| Operating temperature | -10...55°C |
| IP rating | IP40 |
| Indication | LED |

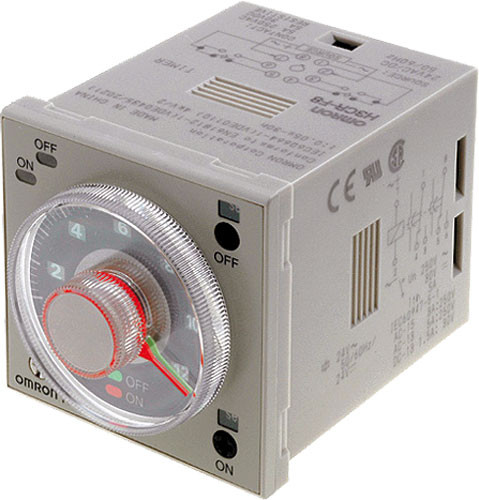

| Manufacturer series | H3CR-F |
| Type of automation module | timer |
| Symbol | Usup | Usup | Output | Range | Number of pins | Dimensions | Output configuration | Characteristics |
|---|---|---|---|---|---|---|---|---|
| [V AC] | [V DC] | |||||||
| H3CR-F8/24AC/DC | 24 | 24 | DPDT | 0,05s...30h | 8 | Fig. 1-1. | Fig. 2-1. | Fig. 3-1. |
| H3CR-F8-AC10024 | 100...240 | - | DPDT | 0,05s...30h | 8 | Fig. 1-1. | Fig. 2-1. | Fig. 3-1. |

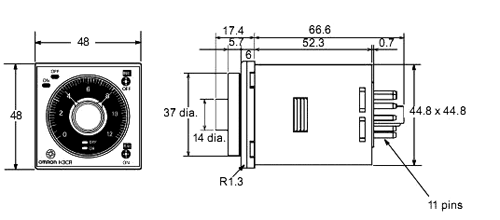

| H3CR-F-100-240AC | 100...240 | - | DPDT | 0,05s...30h | 11 | Fig. 1-2. | Fig. 2-2. | Fig. 3-1. |
| H3CR-F-24 | 24 | 24 | DPDT | 0,05s...30h | 11 | - | - | - |
| H3CR-FN-100-240AC | 100...240 | - | DPDT | 0,05s...30h | 11 | Fig. 1-2. | Fig. 2-2. | Fig. 3-2. |
| H3CR-FN-24 | 24 | 24 | DPDT | 0,05s...30h | 11 | - | - | - |
| H3CR-F8N-230 | 100...240 | - | DPDT | 0,05s...30h | 8 | - | - | - |
| H3CR-F8N-24 | 24 | 24 | DPDT | 0,05s...30h | 8 | - | - | - |
| Symbol: (H3CR-F8/24AC/DC, H3CR-F8-AC10024) | |
|---|---|
| Number of operation modes | 1 |

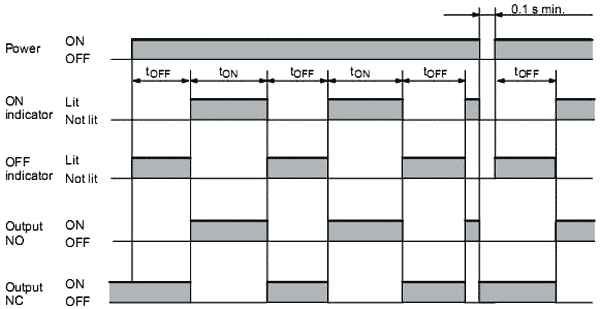

| Operation modes | cyclical operation with two independent times T1 and T2, pause first |
| Related items | P2CF-08, P3G-08 |
| Connection | octal |
| Symbol: (H3CR-F-100-240AC) | |
| Number of operation modes | 1 |
| Operation modes | cyclical operation with two independent times T1 and T2, pause first |
| Related items | P2CF-11 |
| Connection | undecal |
| Symbol: (H3CR-F-24) | |
| Number of operation modes | 1 |
| Operation modes | cyclical operation with two independent times T1 and T2, pause first |
| Related items | P2CF-11 |
| Symbol: (H3CR-FN-100-240AC) | |
| Number of operation modes | 1 |

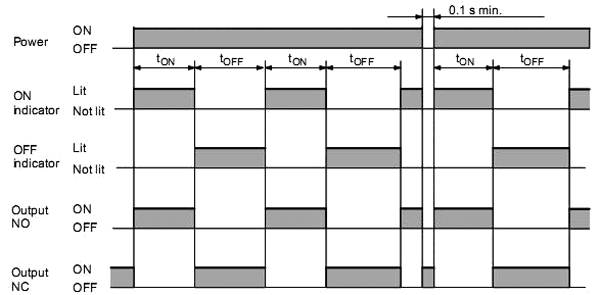

| Operation modes | cyclical operation with two independent times T1 and T2, pulse first |
| Related items | P2CF-11 |
| Connection | undecal |
| Symbol: (H3CR-FN-24) | |
| Number of operation modes | 1 |
| Operation modes | cyclical operation with two independent times T1 and T2, pulse first |
| Related items | P2CF-11 |
| Symbol: (H3CR-F8N-230, H3CR-F8N-24) | |
| Number of operation modes | 1 |
| Operation modes | cyclical operation with two independent times T1 and T2, pulse first |
| Related items | P2CF-08, P3G-08 |
