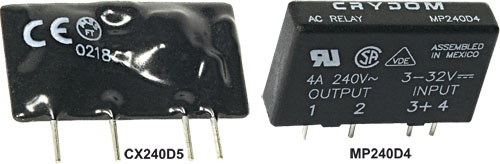

PCB solid state relays in SIP housing
Characterized by high inrush current capacity, suitable for inductive loads, equipped with dv/dt limiter and zero voltage switching function.
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Case | SIP |
| Mounting | THT |
| Operating temperature | -30...80°C |
| Features | zero voltage switching |
| Manufacturer series | CX |
| Symbol | Body dimensions | Ioper. max | Dimensions | Ucntrl | Uswitch. | Switching method* |
|---|---|---|---|---|---|---|
| [mm] | [A] | [V DC] | [V AC] | |||

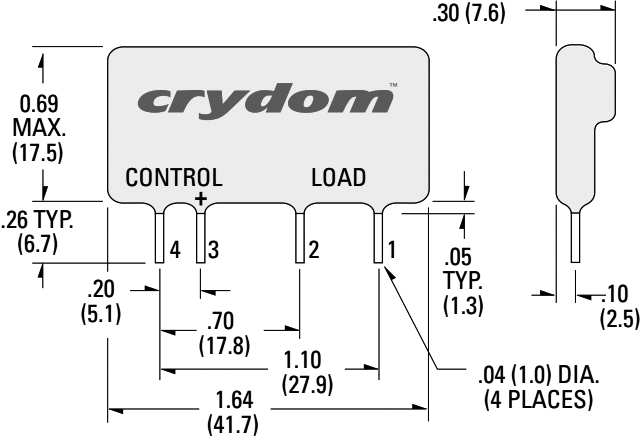

| CX241 | 41.7x17.5x7.6 | 1.5 | Fig. 1. | 4...10 | 12...280 | zero voltage switching |
| CX240D5 | 43.1x25.4x7.6 | 5 | Fig. 2. | 3...15 | 12...280 | zero voltage switching |
| CX380D5 | 43.1x25.4x7.6 | 5 | Fig. 2. | 4...15 | 48...530 | zero voltage switching |
| CXE240D5 | 43.1x25.4x7.6 | 5 | Fig. 2. | 15...32 | 12...280 | zero voltage switching |
| CXE380D5 | 43.1x25.4x7.6 | 5 | Fig. 2. | 15...32 | 48...530 | - |
| CXE480D5 | 43.1x25.4x7.6 | 5 | Fig. 2. | 15...32 | 48...660 | zero voltage switching |
* the position in bracket indicates momentary position.
