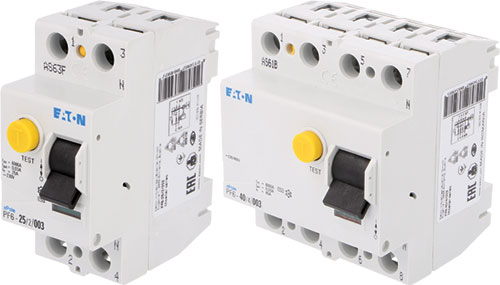

PF6 residual current devices, A type

Manufacturer	EATON ELECTRIC
Type of protection	RCD breaker
Kind of circuit breaker	type A
Mounting	for DIN rail mounting
Short circuit breaking capacity	6kA
Cross sec. of conn. wires	1...35mm²
Mechanical durability	20000 cycles
Electrical life	4000 cycles
Operating temperature	-25...40°C
IP rating	IP20
Conform to the norm	IEC EN 61008

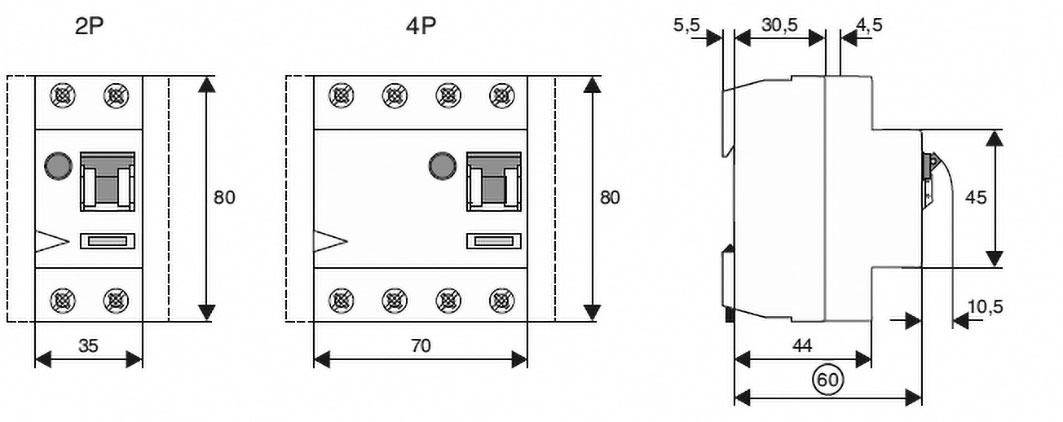

Dimensions	Fig. 1.
Trade name	RCD

Symbol	Cur. rat.	Residual current	Max surge current
	[A]	[mA]	[A]
PF6-25/2/003-A	25	30	500
PF6-25/4/003-A	25	30	500
PF6-25/2/01-A	25	100	500
PF6-25/4/01-A	25	100	500
PF6-25/2/03-A	25	300	500
PF6-25/4/03-A	25	300	500
PF6-25/4/05-A	25	500	500
PF6-40/2/003-A	40	30	500
PF6-40/4/003-A	40	30	500
PF6-40/2/01-A	40	100	500
PF6-40/4/01-A	40	100	500
PF6-40/2/03-A	40	300	500
PF6-40/4/03-A	40	300	500
PF6-40/2/05-A	40	500	500
PF6-40/4/05-A	40	500	500
PF6-63/2/003-A	63	30	630
PF6-63/4/003-A	63	30	630
PF6-63/2/01-A	63	100	630
PF6-63/4/01-A	63	100	630
PF6-63/2/03-A	63	300	630
PF6-63/4/03-A	63	300	630
PF6-63/2/05-A	63	500	630
PF6-63/4/05-A	63	500	630
