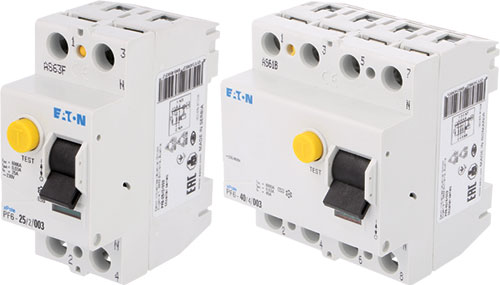

PF6 residual current devices, AC type
| Manufacturer | EATON ELECTRIC |
| Type of protection | RCD breaker |
| Kind of circuit breaker | type AC |
| Mounting | for DIN rail mounting |
| Short circuit breaking capacity | 6kA |
| Cross sec. of conn. wires | 1...35mm2 |
| Mechanical durability | 20000 cycles |
| Electrical life | 4000 cycles |
| Operating temperature | -25...40°C |
| IP rating | IP20 |
| Conform to the norm | IEC EN 61008 |
| Dimensions | Fig. 1. |
| Trade name | RCD |
| Symbol | Cur. rat. | Residual current | Max surge current |
|---|---|---|---|
| [A] | [mA] | [A] | |
| PF6-25/2/003 | 25 | 30 | 500 |
| PF6-25/4/003 | 25 | 30 | 500 |
| PF6-25/2/01 | 25 | 100 | 500 |
| PF6-25/4/01 | 25 | 100 | 500 |
| PF6-25/2/03 | 25 | 300 | 500 |
| PF6-25/4/03 | 25 | 300 | 500 |
| PF6-25/2/05 | 25 | 500 | 500 |
| PF6-25/4/05 | 25 | 500 | 500 |
| PF6-40/2/003 | 40 | 30 | 500 |
| PF6-40/4/003 | 40 | 30 | 500 |
| PF6-40/2/01 | 40 | 100 | 500 |
| PF6-40/4/01 | 40 | 100 | 500 |
| PF6-40/2/03 | 40 | 300 | 500 |
| PF6-40/4/03 | 40 | 300 | 500 |
| PF6-40/2/05 | 40 | 500 | 500 |
| PF6-40/4/05 | 40 | 500 | 500 |
| PF6-63/2/003 | 63 | 30 | 630 |
| PF6-63/4/003 | 63 | 30 | 630 |
| PF6-63/2/01 | 63 | 100 | 630 |
| PF6-63/4/01 | 63 | 100 | 630 |
| PF6-63/2/03 | 63 | 300 | 630 |
| PF6-63/4/03 | 63 | 300 | 630 |
| PF6-63/2/05 | 63 | 500 | 630 |
| PF6-63/4/05 | 63 | 500 | 630 |
