Plug; 2mm; HIROSE

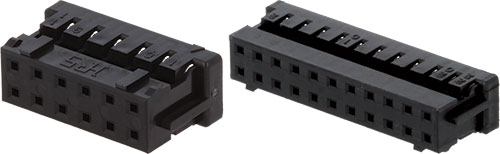

Plug; 2mm; HIROSE, DF11-4DS-2R26-05, DF11-6DS-2R26-05, DF11-8DS-2R26-05, DF11-8DS-2R26-53 |EN|
ManufacturerHIROSE
Contacts pitch2mm
Connectorplug
Manufacturer seriesSignalBee
Connector familydata
Symbol Type of connector Kind Mechanical mounting Pin Pin configuration Spatial orientation Electrical mounting Contact plating Type Application - series/manufacturer Engineering PN
DF11-4DS-2R26-05 wire-wire/PCB female for cable 4 2x2 angled 90° IDC tinned - - CL0543-0652-0-05
DF11-8DS-2R26-53 wire-wire/PCB female for cable 8 2x4 angled 90° IDC tinned - - CL0543-0654-6-53
DF11-16DS-2R26-05 wire-wire/PCB female for cable 16 2x8 angled 90° IDC tinned - - -
DF11-20DS-2R26-05 wire-wire/PCB female for cable 20 2x10 angled 90° IDC tinned - - -
DF11-26DS-2R26-05 wire-wire/PCB female for cable 26 2x13 angled 90° IDC tinned - - -
DF11-28DS-2R26-05 wire-wire/PCB female for cable 28 2x14 angled 90° IDC tinned - - CL0543-0664-0-05
DF11-28DS-2R26-53 wire-wire/PCB female for cable 28 2x14 angled 90° IDC tinned - - CL0543-0664-0-53
DF11-4DS-2C wire-wire/PCB female for cable 4 2x2 straight crimped - w/o contacts HRP-450, HRP-600, RSP-500 CL0543-0568-6-00
DF11-6DS-2C wire-wire/PCB female for cable 6 2x3 straight crimped - w/o contacts MSP-200, RSP-1500, RSP-2000, SPV-1500 CL0543-0502-8-00
DF11-8DS-2C wire-wire/PCB female for cable 8 2x4 straight crimped - w/o contacts HRP-300, HRPG-300, HRPG-450, MSP-300, MSP-450, RSP-1500, RSP-2400, RSP-3000, SPV-1500 CL0543-0503-0-00
DF11-10DS-2C wire-wire/PCB female for cable 10 2x5 straight crimped - w/o contacts HRPG-600, MSP-600, RSP-2400, RSP-3000, RST-10000, RST-5000 CL0543-0504-3-00
DF11-12DS-2C wire-wire/PCB female for cable 12 2x6 straight crimped - w/o contacts RSP-1000, RSP-2000 CL0543-0505-6-00
DF11-14DS-2C wire-wire/PCB female for cable 14 2x7 straight crimped - w/o contacts RSP-750 CL0543-0506-9-00
DF11-14DS-2C-20 wire-wire/PCB female for cable 14 2x7 straight crimped - w/o contacts - CL0543-0506-9-20
DF11-16DS-2C wire-wire/PCB female for cable 16 2x8 straight crimped - w/o contacts - CL0543-0507-1-00
DF11-18DS-2C wire-wire/PCB female for cable 18 2x9 straight crimped - w/o contacts - CL0543-0508-4-00
DF11-20DS-2C wire-wire/PCB female for cable 20 2x10 straight crimped - w/o contacts RST-10000, RST-5000 CL0543-0509-7-00
DF11-22DS-2C wire-wire/PCB female for cable 22 2x11 straight crimped - w/o contacts - CL0543-0510-6-00
DF11-24DS-2C wire-wire/PCB female for cable 24 2x12 straight crimped - w/o contacts - CL0543-0511-9-00
DF11-24DS-2C-20 wire-wire/PCB female for cable 24 2x12 straight crimped - w/o contacts - CL0543-0511-9-20
DF11-26DS-2C wire-wire/PCB female for cable 26 2x13 straight crimped - w/o contacts - CL0543-0512-1-00
DF11-28DS-2C wire-wire/PCB female for cable 28 2x14 straight crimped - w/o contacts - CL0543-0513-4-00
DF11-30DS-2C wire-wire/PCB female for cable 30 2x15 straight crimped - w/o contacts - CL0543-0514-7-00
DF11-32DS-2C wire-wire/PCB female for cable 32 2x16 straight crimped - w/o contacts - CL0543-0515-0-00
DF11-34DS-2C wire-wire/PCB female for cable 34 2x17 straight crimped - w/o contacts - CL0543-0516-2-00
DF11-4DEP-2C wire-wire male for panel mounting, for cable 4 2x2 straight crimped - w/o contacts - CL0543-0619-5-00
DF11-6DEP-2C wire-wire male for panel mounting, for cable 6 2x3 straight crimped - w/o contacts - CL0543-0620-4-00
DF11-8DEP-2C wire-wire male for panel mounting, for cable 8 2x4 straight crimped - w/o contacts - CL0543-0621-7-00
DF11-10DEP-2C wire-wire male for panel mounting, for cable 10 2x5 straight crimped - w/o contacts - CL0543-0622-0-00
DF11-12DEP-2C wire-wire male for panel mounting, for cable 12 2x6 straight crimped - w/o contacts - CL0543-0623-2-00
DF11-14DEP-2C wire-wire male for panel mounting, for cable 14 2x7 straight crimped - w/o contacts - CL0543-0624-5-00
DF11-16DEP-2C wire-wire male for panel mounting, for cable 16 2x8 straight crimped - w/o contacts - CL0543-0625-8-00
DF11-18DEP-2C wire-wire male for panel mounting, for cable 18 2x9 straight crimped - w/o contacts - CL0543-0626-0-00
DF11-20DEP-2C wire-wire male for panel mounting, for cable 20 2x10 straight crimped - w/o contacts - CL0543-0627-3-00
DF11-22DEP-2C wire-wire male for panel mounting, for cable 22 2x11 straight crimped - w/o contacts - CL0543-0628-6-00
DF11-24DEP-2C wire-wire male for panel mounting, for cable 24 2x12 straight crimped - w/o contacts - CL0543-0629-9-00
DF11-26DEP-2C wire-wire male for panel mounting, for cable 26 2x13 straight crimped - w/o contacts - CL0543-0630-8-00
DF11-28DEP-2C wire-wire male for panel mounting, for cable 28 2x14 straight crimped - w/o contacts - CL0543-0631-0-00
DF11-30DEP-2C wire-wire male for panel mounting, for cable 30 2x15 straight crimped - w/o contacts - CL0543-0632-3-00
DF11-32DEP-2C wire-wire male for panel mounting, for cable 32 2x16 straight crimped - w/o contacts - CL0543-0633-6-00
