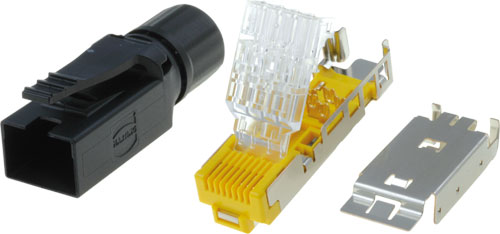

Plug; RJ45; shielded; HARTING
| Type of connector | RJ45 |
| Connector | plug |
| Type | shielded |
| Manufacturer | HARTING |
| Symbol | Cat. | Size | Cable external diameter | Electrical mounting | Layout | Application | Mech. mounting | No. of pins | Core diameter |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | ||||||||
| 09451511120 | Cat 5 | 27AWG...22AWG | 4.5...8 | without tools, IDC | 8p4c | solid wire, strand | for cable | 4 | 1.6 |
| 09451511121 | Cat 5 | 27AWG...22AWG | 4.5...8 | without tools, IDC | 8p4c | solid wire, strand | for cable | 4 | 1.6 |
| 09451511560 | Cat 6 | 27AWG...22AWG | 4.5...9 | without tools, IDC | 8p8c | solid wire, strand | for cable | 8 | 1.6 |
| 09451511561 | Cat 6 | 27AWG...22AWG | 4.5...9 | without tools, IDC | 8p8c | solid wire, strand | for cable | 8 | 1.6 |
| 09451511520 | Cat 6a | 28AWG...24AWG | 6.1...6.9 | IDC | 8p8c | strand | for cable | 8 | 1.05 |
| 09451511525 | Cat 6a | 28AWG...24AWG | 6.1...6.9 | IDC | 8p8c | strand | for cable | 8 | 1.05 |
| 09455451561 | Cat 6 | 28AWG...24AWG | 4.5...9 | without tools, IDC | 8p8c | solid wire, strand | for cable | 8 | 1.6 |
| 09352260401 | Cat 5 | 24AWG...22AWG | 4...11 | without tools, IDC | 8p4c | solid wire, strand | for cable | 4 | 1.6 |
| 20821040001 | Cat 6a | - | 5...9.5 | without tools, IDC | 8p8c | solid wire, strand | for cable | 8 | - |
| 09451511140 | Cat 5 | 26AWG...22AWG | 4.5...9 | without tools, IDC | 8p4c | solid wire, strand | for cable | 4 | 0.8...1.6 |
| 09451511141 | Cat 5 | 26AWG...22AWG | 4.5...9 | without tools, IDC | 8p4c | solid wire, strand | for cable | 4 | 0.8...1.6 |
| 09451511570 | Cat 6a | 26AWG...22AWG | 4.5...9 | without tools, IDC | 8p8c | solid wire, strand | for cable | 8 | 0.8...1.6 |
| 09451511571 | Cat 6a | 26AWG...22AWG | 4.5...9 | without tools, IDC | 8p8c | solid wire, strand | for cable | 8 | 0.8...1.6 |
Operating temperature:
- -40...70°C (09451511120, 09451511121, 09451511560, 09451511561, 09451511520, 09451511525, 09455451561, 09352260401, 20821040001)
- -40...85°C (09451511140, 09451511141, 09451511570, 09451511571)
Locking system:
- push-pull (09352260401, 20821040001)
Spatial orientation:
- angled (09451511xx1)
- straight (09451511120, 09451511140, 09451511560, 09451511520, 09451511525, 09451511570, 09455451561, 09352260401, 20821040001)
