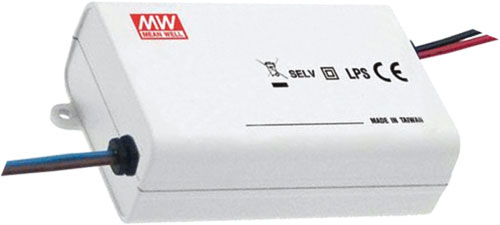

Power supply: switching; constant current; MEAN WELL

Manufacturer	MEAN WELL
Type of power supply	switching
Application	LED
Kind of power supply	LED
Operating modes	constant current
Number of outputs	1
Electrical connection	wires
Protection	short circuit protection SCP, overheating OTP
Additional functions	triac dimming function; active PFC
Supply voltage	180...295V AC
IP rating	IP42
Caution!	rated parameters obtained at full load

Operating temperature:

Symbol	Power	I_out	U_out	Body dim.	Efficiency	Manufacturer series	Dimensions
	[W]	[mA]	[V DC]	[mm]	[%]

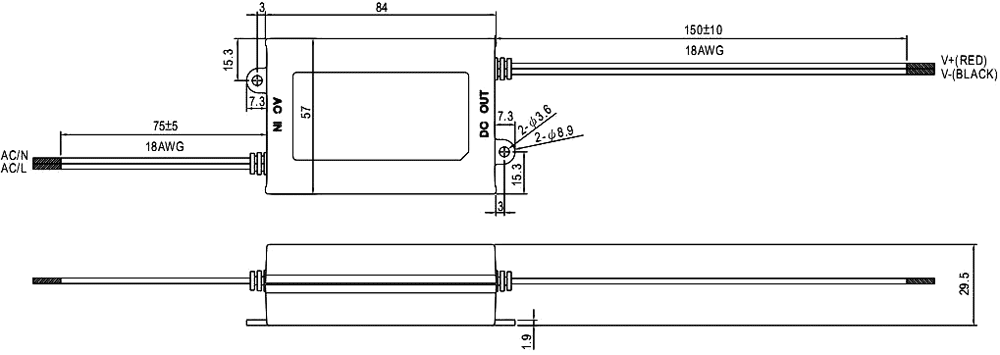

PCD-16-350B	16.8	350	24...48	84x57x29.5	82	PCD-16	Fig. 1.
PCD-16-700B	16.8	700	16...24	84x57x29.5	81	PCD-16	Fig. 1.
PCD-16-1050B	16.8	1050	12...16	84x57x29.5	80.5	PCD-16	Fig. 1.
PCD-16-1400B	16.8	1400	8...12	84x57x29.5	80	PCD-16	Fig. 1.
PCD-25-350B	20.3	350	40...58	84x57x29.5	82	PCD-25	Fig. 1.
PCD-25-700B	25.2	700	24...36	84x57x29.5	81	PCD-25	Fig. 1.
PCD-25-1050B	25.2	1050	16...24	84x57x29.5	80.5	PCD-25	Fig. 1.
PCD-25-1400B	25.2	1400	12...18	84x57x29.5	80	PCD-25	Fig. 1.

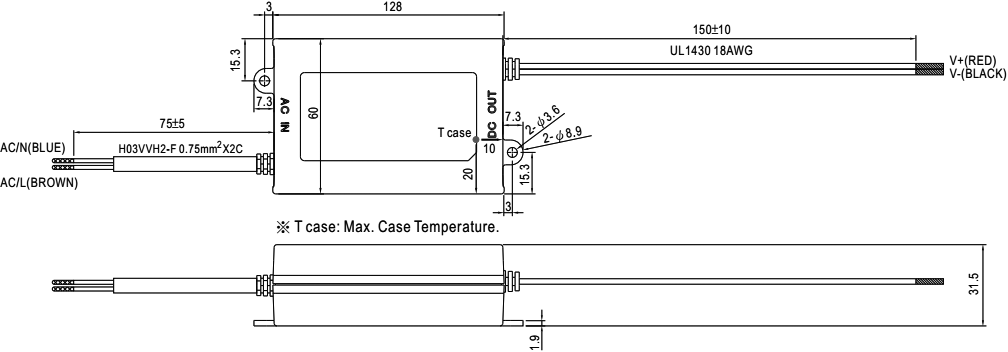

PCD-40-350B	37.8	350	70...108	84x57x29.5	87	PCD-40	Fig. 2.
PCD-40-500B	40	500	45...80	84x57x29.5	87	PCD-40	Fig. 2.
PCD-40-700B	39.9	700	34...57	84x57x29.5	86	PCD-40	Fig. 2.
PCD-40-1050B	39.9	1050	22...38	84x57x29.5	86	PCD-40	Fig. 2.
PCD-40-1400B	40.6	1400	17...29	84x57x29.5	85	PCD-40	Fig. 2.
PCD-40-1750B	40.25	1750	13...23	84x57x29.5	85	PCD-40	Fig. 2.
PCD-60-500B	54	500	70...108	128x60x31.5	87	PCD-60	Fig. 2.
PCD-60-700B	60.2	700	50...86	128x60x31.5	86	PCD-60	Fig. 2.
PCD-60-1050B	59.85	1050	34...57	128x60x31.5	86	PCD-60	Fig. 2.
PCD-60-1400B	60.2	1400	25...43	128x60x31.5	85	PCD-60	Fig. 2.
PCD-60-1750B	59.5	1750	20...34	128x60x31.5	85	PCD-60	Fig. 2.
PCD-60-2000B	60	2000	18...30	128x60x31.5	85	PCD-60	Fig. 2.
PCD-60-2400B	60	2400	15...25	128x60x31.5	84	PCD-60	Fig. 2.
